Internal tilt latch identification

Home Owner from Colorado

Jun 20, 2022 12:44 pm

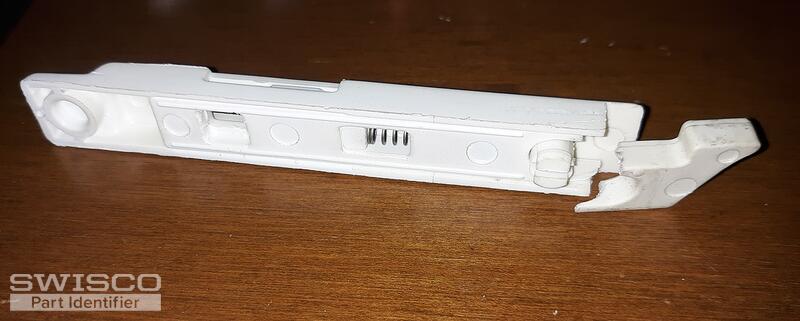

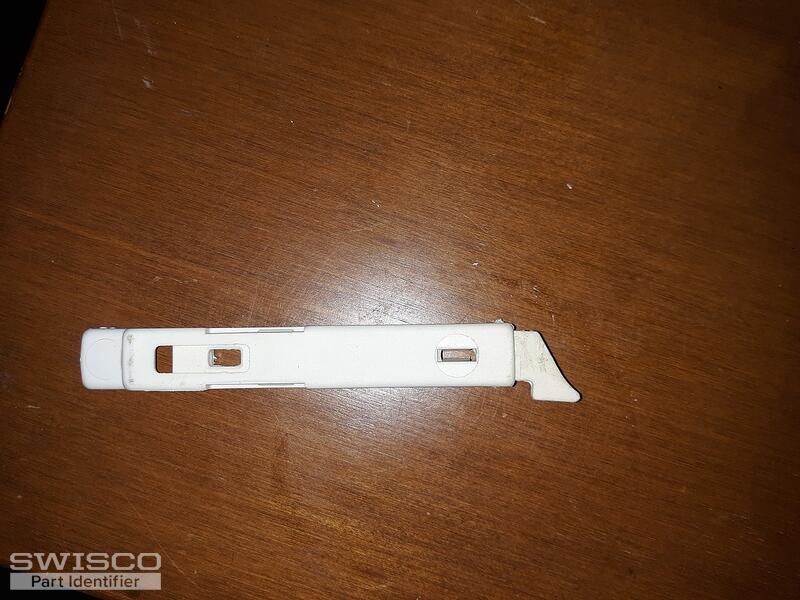

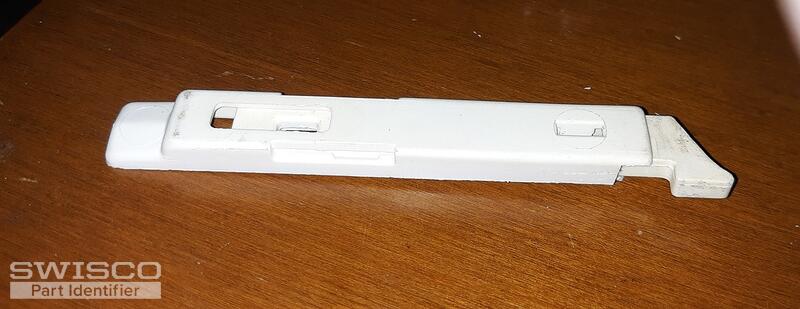

These internal tilt latches are 4 1/2"x1/2"x5/16".

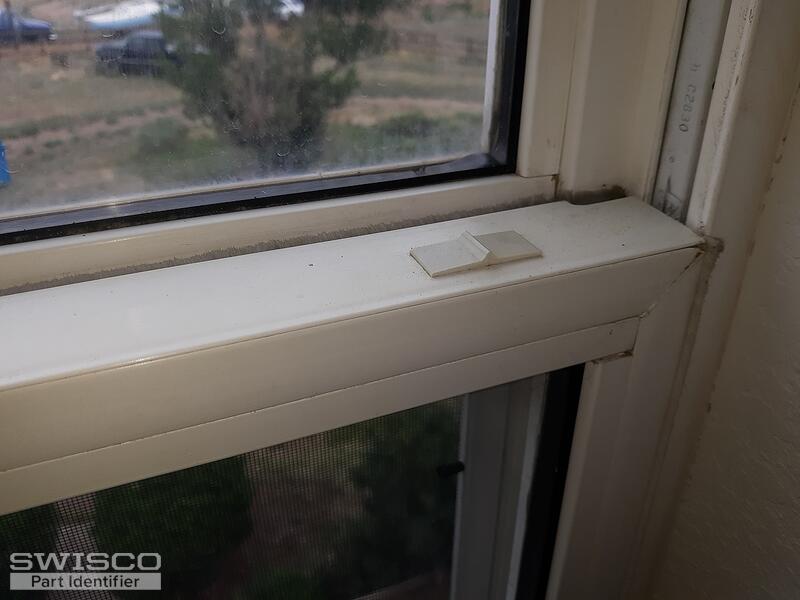

There are no markings on these vinyl windows anywhere. I believe they were installed in 1996/97.

5 user uploaded images

3 Replies

+ Add a Comment

Emily from SWISCO

Jun 22, 2022 2:57 pm

EXPERT

Hello!

This latch reminds me of our 26-334, though it's not exact. Look over our dimensions and compare them with yours to confirm this matches what you need.

Home Owner from Colorado

Jun 22, 2022 5:46 pm

These 26-334 latches would probably work because, though mine do not use screws, I could use screws to attach them.

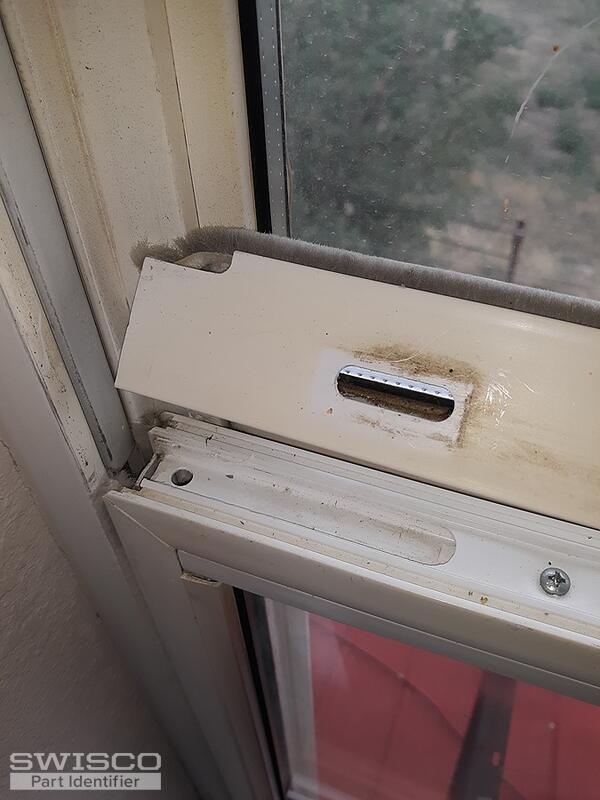

Unfortunately the finger levers appear to be out of position. On the 26-334 latches the finger levers appear to be about 1.5 inches back from the edge of the latch assembly. On mine they are about 2.25 inches back. Which they must be to line up with the finger lever slot on my windows. If you have an alternative latch that will accomodate this we're in business

Emily from SWISCO

Jun 23, 2022 8:25 am

EXPERT

My apologies for missing that detail! Take a look at our 26-322 and 26-323 latches, along with the 26-324 thumb button instead. Look these parts over and see if they're a better match for your original hardware.
