Could you please let me know if I chose the right handle?

A home owner from Stouffville, Ontario, Canada says:

Dear Sir or Madam,

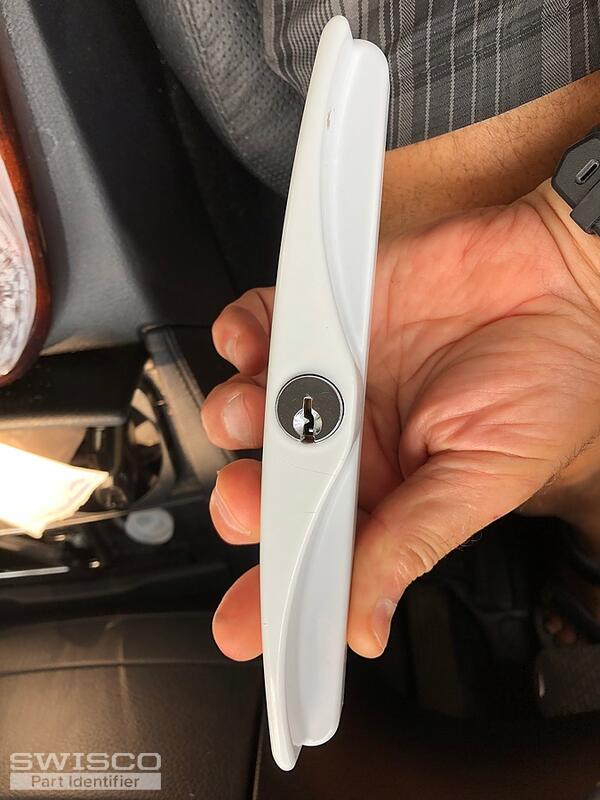

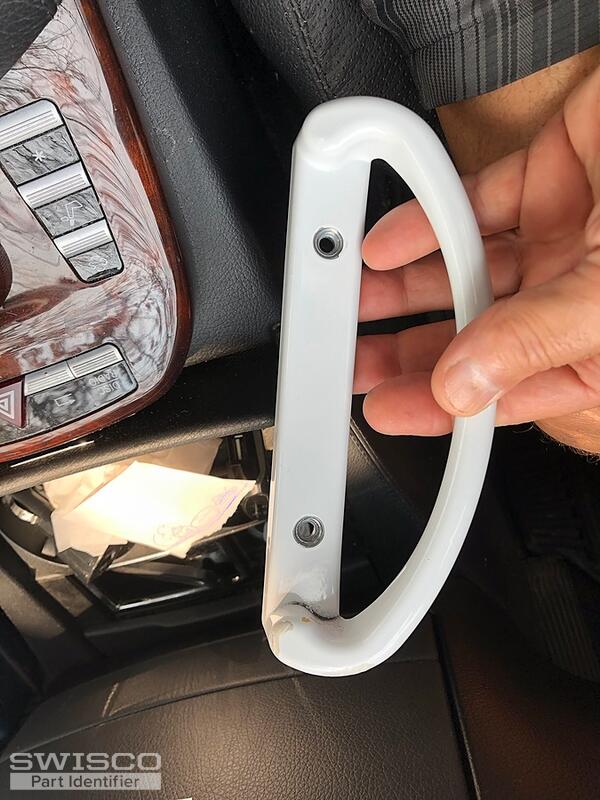

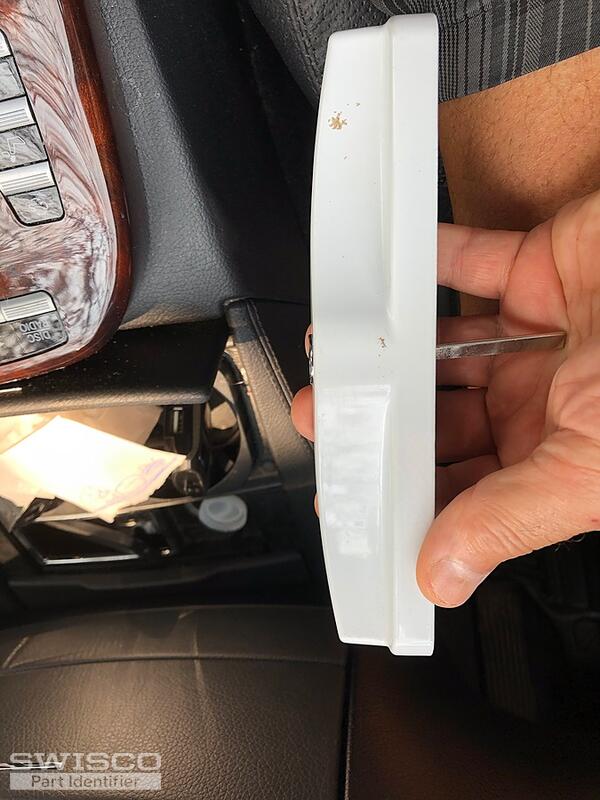

Here is the pictures of my existing sliding door handle with key lock.

I went through your web site and I found item 82-086 that match with my existing handle.

Could you please let me know if I chose the right handle.

Your attention in this regard is greatly appreciated.

Yours Truly,

Majid

Thumbnail of the uploaded file named IMG_0797.jpg
Thumbnail of the uploaded file named IMG_0799.jpg
Thumbnail of the uploaded file named IMG_0800.jpg
Thumbnail of the uploaded file named IMG_0801.jpg
Thumbnail of the uploaded file named IMG_0802.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for your patience during this busy season, Majid. I don't believe that our 82-086 will work for you in this case. The major reason is because the key lock on yours is centered, while the key lock on the 82-086 is offset down. In other words, the key lock on our 82-086 won't line up with your mortise and therefore will not install.

I recommend using our 82-030 instead, along with the 82-310 key cylinder (sold separately). The 82-030 handle has a punch-hole in the centered position that you can use to install the 82-310 cylinder. That way it will be in total alignment with your old handle set and should install just fine.

A home owner from Stouffville, Ontario, Canada says:
Dear Tom.

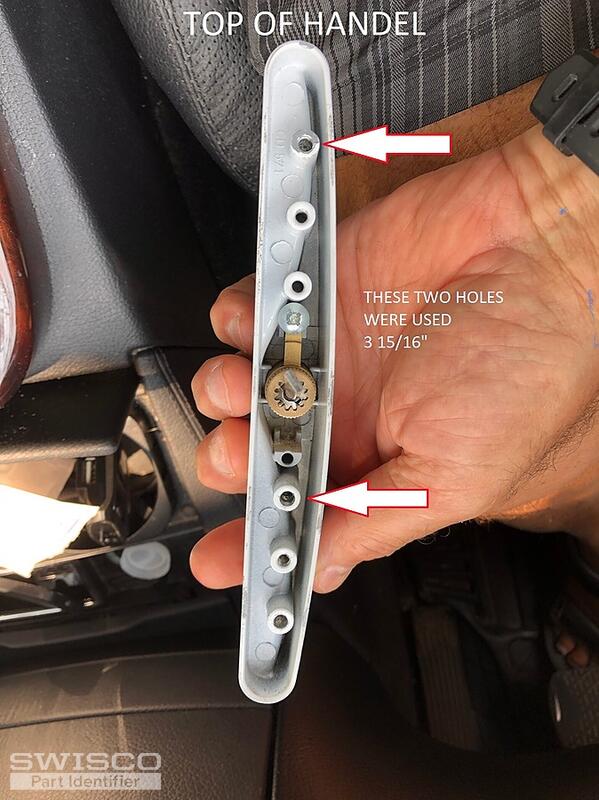

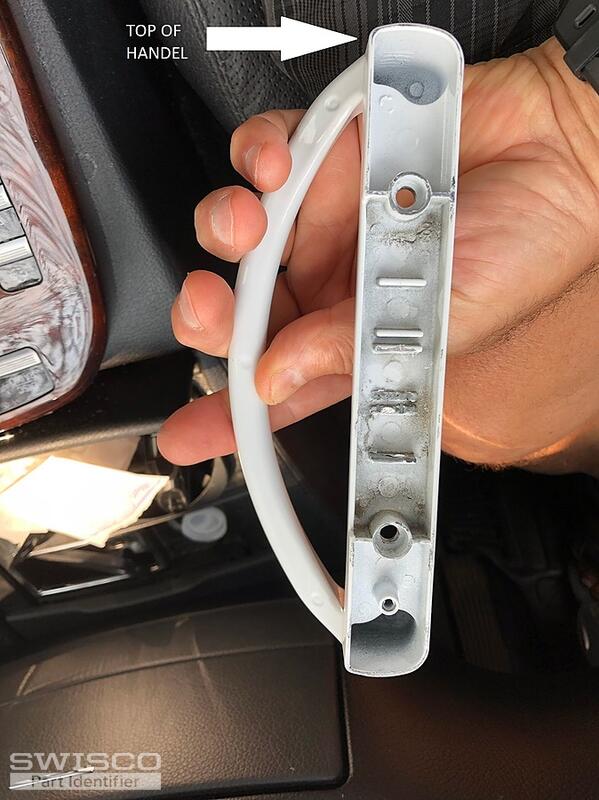

Thank you very much for your respond. The whole reason that I picked this one because, it is off down as you said. If you take a look at the picture carefully that I sent you, the two wholes for screw that were used make outside handle (lock one) off side down as I marked for you in the picture. For inside the place for accommodating the key the bar were broken off down as well.

Regards,

Majid
Profile picture of Tom
Tom from SWISCO responded:

Ah, I see what you mean. Thank you for clarifying. With that in mind then I think the 82-086 would be better suited for your door.

A home owner from Stouffville, Ontario, Canada says:
Thank you very much.
Regards,

Majid
