Jalisco Window crank on right

Start a new Discussion

Quick Learner from Florida

Feb 2, 2020 12:25 pm

Crank is located on left side of window it operates. Handle seems to
Have stripped inside so I need entire assembly.

3 user uploaded images

4 Replies

Bob from SWISCO

Feb 4, 2020 9:58 am

Thanks for writing in. I'm pretty confident we have a replacement for this awning operator, but we need to see it out of the window to identify it. Specifically, we need to see the 'hole pattern' on the top and bottom tabs, as well as the hole at the end of the link arm and the link arm's configuration. If you can show us these details, we should be able to help you. For details on how to remove and replace your awning operator, see below.

Quick Learner from Florida

Feb 19, 2020 2:09 pm

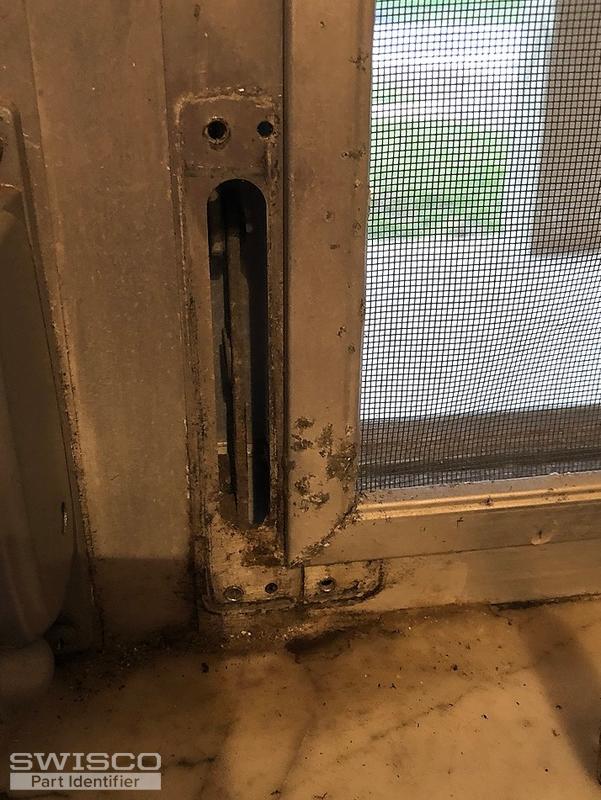

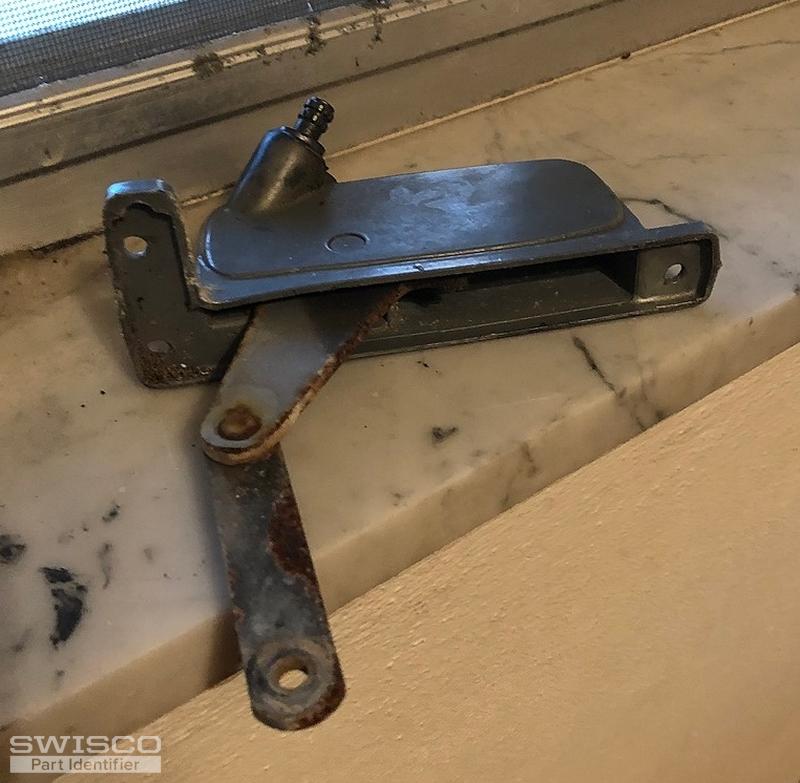

Pictures of crank and bolt pattern as requested.

Please identify crank part # needed for both sides of the window.

2 user uploaded images

Bob from SWISCO

Feb 19, 2020 3:33 pm

Take a look at our 39-060 and 39-061 Window Cranks. Look these over and let me know if they match the dimensions and specifications of your old operators.
