Jalosie Window part

A landlord from 34202 says:
This is the part that is on the side of every window pane frame that projects from the edge of the frame that when you close the window sits under the claw in the mechanism and locks the window as the crank is turned and draws the window up and in.
Thumbnail of the uploaded file named IMG_0964.jpg
Thumbnail of the uploaded file named IMG_0963.jpg
Thumbnail of the uploaded file named IMG_0961.jpg

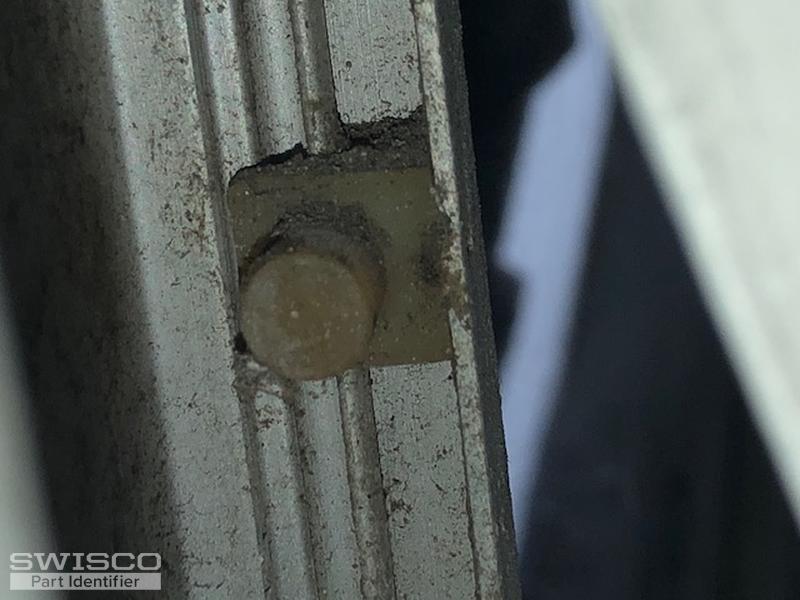

Thumbnail of the uploaded file named IMG_0962.jpg

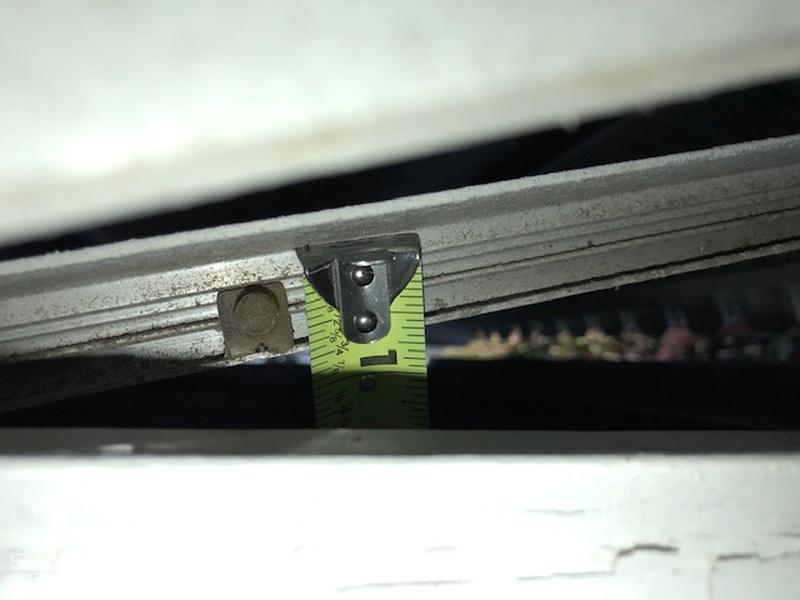

Thumbnail of the uploaded file named IMG_0965.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Unfortunately, I don't recognize this jalousie window part but I'm going to pass your information on to our senior experts who may have seen this before. We'll reach out as soon as more information is available. Thank you!

Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Looking at your photos, I believe your window is an awning window made by Keller. Take a look at the 36-016 vent pin, along with the related parts and video to assist you. Thanks for posting!


33-070 : 5/16
5/16" Shoulder Screw, 1/4"-20 Thread
33-070
$0.89
VIEW >
33-206 : Shoulder Bolt Washer
Shoulder Bolt Washer
33-206
$0.19
VIEW >
36-015 : Arm Window Hook, Pair
Arm Window Hook, Pair
36-015
$3.46
VIEW >
36-016 : Vent Pin
Vent Pin
36-016
$0.97
VIEW >
39-060 : Keller Window Crank
Keller Window Crank
39-060
$18.97
VIEW >
39-061 : Keller Window Crank
Keller Window Crank
39-061
$18.97
VIEW >
33-081 : #10 x 1/2
#10 x 1/2" Pan Head Phillips Screw
33-081
$0.21
VIEW >
How to Replace an Awning Window Operator [1080p]
How to Replace an Awning Window Operator [1080p]
VIDEO
WATCH >
