1/4" spline Jalousie Handle
A quick learner from USA says:
May 21, 2015
I am looking for a couple replacement handles for a set of jalousie windows.
The problem is that they are not the standard 5/16" spline.
A 1/4" spline drive socket fits over the stub.
Let me know if you have any handles or adapters that will work on these windows.
Thank you in advance for any assistance,
Regards,
Paul
The problem is that they are not the standard 5/16" spline.
A 1/4" spline drive socket fits over the stub.
Let me know if you have any handles or adapters that will work on these windows.
Thank you in advance for any assistance,
Regards,
Paul
|
Paul from SWISCO responded:
May 22, 2015
That is a little peculiar. I believe 5/16" is the smallest. Are you sure the spline isn't just worn down? Could you show us a few pictures of your operator so that we can identify what you're working with? Thanks!
|
A quick learner from USA says:
May 24, 2015

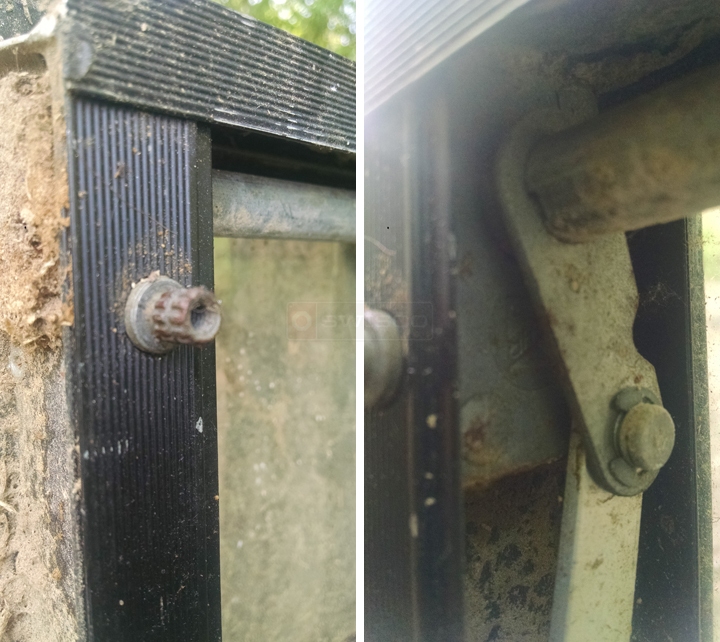

Here are some pics of the spline and mechanism.
I don't think that the spline is worn, as it looks like it is in good shape. I have placed a 1/4" spline drive socket on it on it fit securely and turns with no problems.
I don't think that the spline is worn, as it looks like it is in good shape. I have placed a 1/4" spline drive socket on it on it fit securely and turns with no problems.
|
Dave Sr. from SWISCO responded:
May 27, 2015
I believe you need a crank handle for a mobile home operator. Take a look at our 39-116 for one possibility. We also have others handles with different lengths that may interest you. See our mobile home hardware section for more.
|
A home owner says:
May 27, 2015
Thank you for the reply. I thought they may be designed for a mobile home or trailer application, but was not sure. The part that you list, 39-116, and all of the ones listed for the mobile homes, still show a 5/16" spline.
|
Tom from SWISCO responded:
May 28, 2015
I don't think they make this kind of hardware with a 1/4" spline. Are you sure that's what you have? 1/4" and 5/16" are very close together. I would triple check your measurements and make sure they are as accurate as possible.
|
A quick learner says:
May 28, 2015
I have double checked my measurements, I am a mechanic by trade, and have a set of spline sockets. My measuring is strictly from sizing from these sockets. As long as the window mechanisms follow the standard for all other spline drive, then my measurements are correct. The 1/4" socket fits on and turns the mechanisms, where the 5/16" is very loose and sloppy. I would be afraid to put any torque on the 5/16" socket, as it would probably damage the outside of the spline.
I can not find anything reference to anything with a spline smaller than the 5/16", but I have a full set of windows with them.
I can not find anything reference to anything with a spline smaller than the 5/16", but I have a full set of windows with them.
|
|
Dave Sr. from SWISCO responded:
June 2, 2015
I took one of our mobile home operators (the 39-234) along with a mobile home handle (the 39-114) and measured them with a micrometer. The spline came out to be .276", which is in between 1/4" and 5/16". It's not uncommon for manufacturers to round up or down in either case when a measurement is this specific, though. Check your operator spline with a micrometer and see if it matches up to .276". The operators and handles used for mobile home awning windows are standard in the industry.
|
A quick learner says:
June 3, 2015
I took a couple measurements of the spline, as requested. The measurement across the narrowest part, between the splines is .262", and the widest point, across the top of the splines is .291".
Where was your measurement taken? If it was across the top of the splines, then it may work, and I will probably buy several of the mobile home handles to test.
Let me know.
Thanks
Where was your measurement taken? If it was across the top of the splines, then it may work, and I will probably buy several of the mobile home handles to test.
Let me know.
Thanks
|
|
Dave Sr. from SWISCO responded:
June 9, 2015
I took measurements on the widest part of the spline at the top. If your operator is the type used on mobile home awning windows, I think there is a good chance it could fit. These mobile home operators are normally a standard size.
|
