Jalousie Window operator RH 1963

A quick learner from pembroke pines florida says:
October 24, 2021

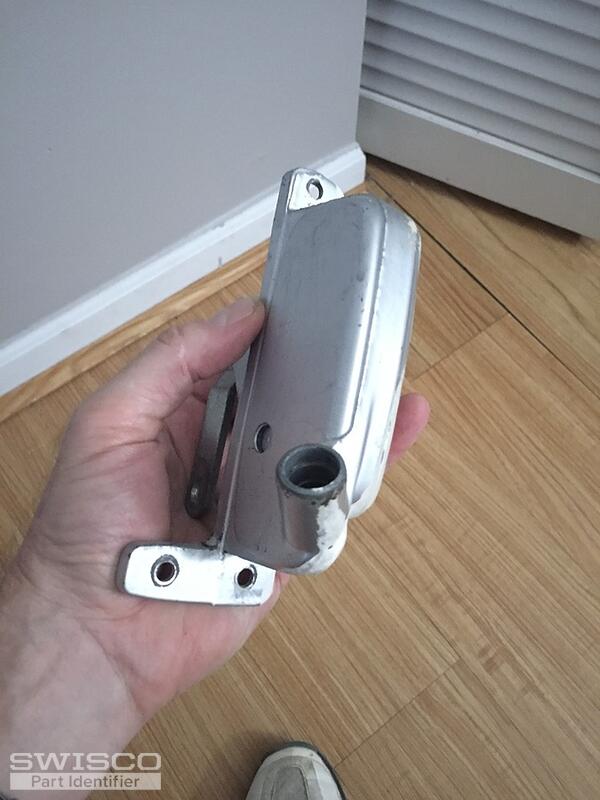

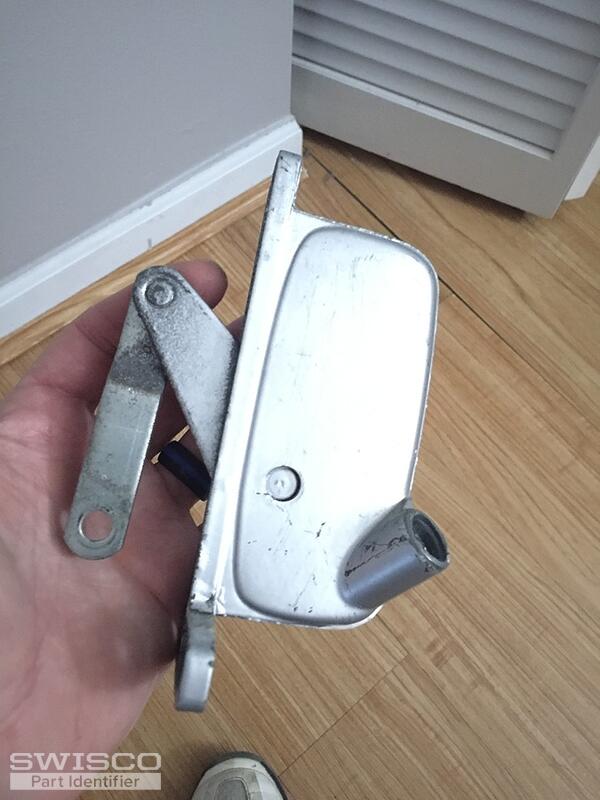

I need a jalousie window operator. Mine has this stamped inside:

Pat. No. 19E 202 USA

R.H. RD. 1963 CA

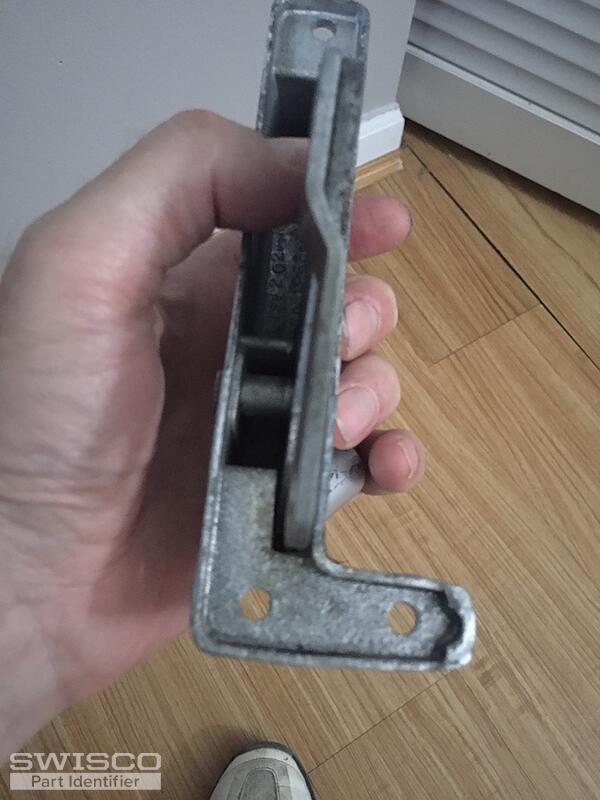

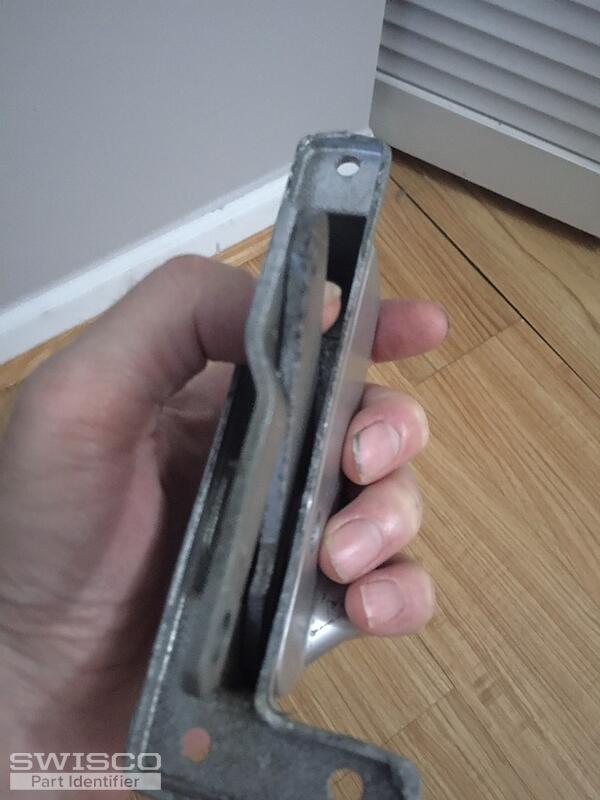

It has a dog-leg in the second linkage to clear part of the window mechanism. The second linkage is 2 5/8 inches center to center pin distance.

Hope you have one? Bill

Thumbnail of the uploaded file named IMG_5275[1].JPG
Thumbnail of the uploaded file named IMG_5276[1].JPG
Thumbnail of the uploaded file named IMG_5277[1].JPG
Thumbnail of the uploaded file named IMG_5278[1].JPG
Profile picture of Emily
Emily from SWISCO responded:
October 28, 2021

Hello!

I don't recognize this operator at first glance but I'm going to have one of our senior experts take a look and see if they could recommend a replacement for you. We'll reach out as soon as more information is available.

Thank you!
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
October 29, 2021

Take a look at the 39-194 operator which has a 3/8" hole at the end of the 2-3/8" off set link arm. Compare our dimensions to yours and see if the two bottom mounting hole center spacing of 1-3/8" match up to yours.

Dimensions for 39-194
Dimensions for 39-194
RH Window Crank Operator, 3/8" Hole
RH Window Crank Operator, 3/8" Hole
39-194
$19.97
#10 x 1/2" Pan Head Phillips Screw
#10 x 1/2" Pan Head Phillips Screw
33-081
$0.18
Shoulder Bolt Washer
Shoulder Bolt Washer
33-206
$0.19
