Jalousie operators I think

A handy person from Staten Island says:

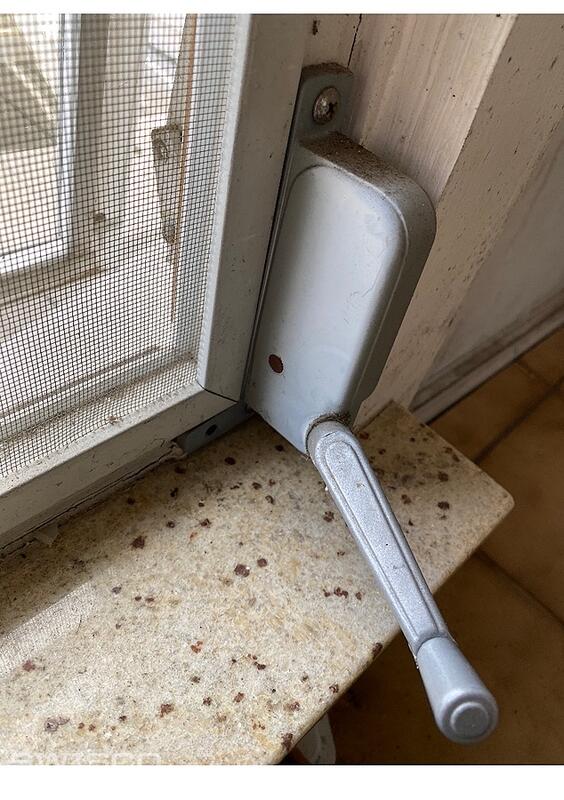

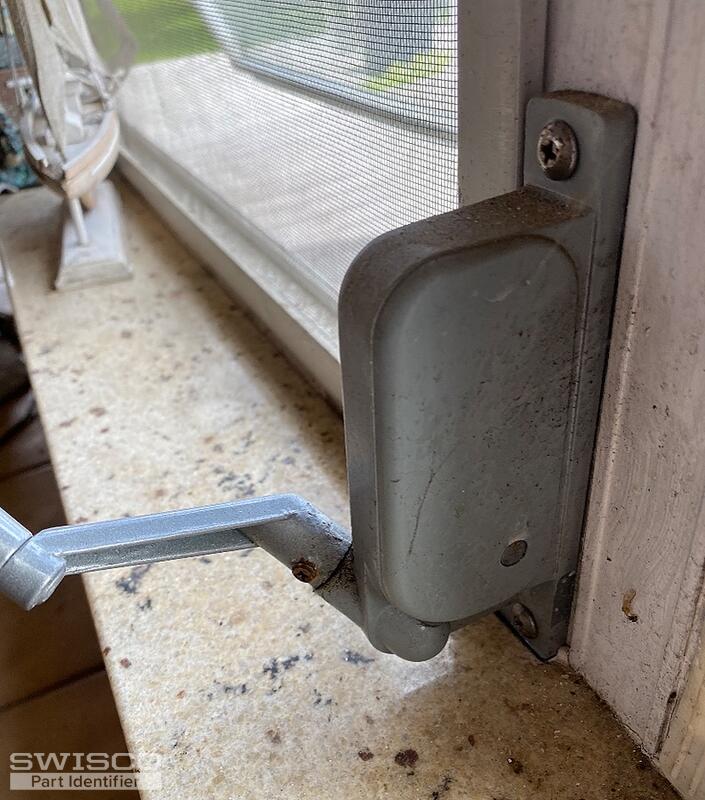

I chewed two operators on n the parts site but the ones I need have only one screw hole Was hoping you could help me figure this out a you have done every time in the past. Thank you. mrscreenman
Thumbnail of the uploaded file named 02714BA4-4AD1-4120-AEB0-CEC650CD2C79.jpeg
Thumbnail of the uploaded file named 19D61163-3BEC-4449-83EF-C6ADEB545EE8.jpeg
Thumbnail of the uploaded file named 5C80F1C1-502C-4790-A7BD-F660EE6E1553.jpeg
Thumbnail of the uploaded file named 89AD0013-99DE-4F4C-BB58-A8A7DAE69A4F.jpeg
Thumbnail of the uploaded file named 6386210D-466C-49FC-BF94-F0D91EF7DDA8.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Hello, Mr. Screen Man. It's difficult to tell what you have while the operator is still installed, but my first guess would be the 39-025. The hole pattern seems similar to yours but you should check the spacing to ensure they line up. I'm also not sure if the link arm design will match yours, either. You may ultimately need to remove it from the window entirely to confirm that the 39-025 is a match.

Dimensions for 39-025
Dimensions for 39-025

How to Replace an Awning Window Operator [1080p]
How to Replace an Awning Window Operator [1080p]
VIDEO
WATCH >
How to identify casement and awning operators
How to identify casement and awning operators
GUIDE
READ >
