Jalousie window crank

Question

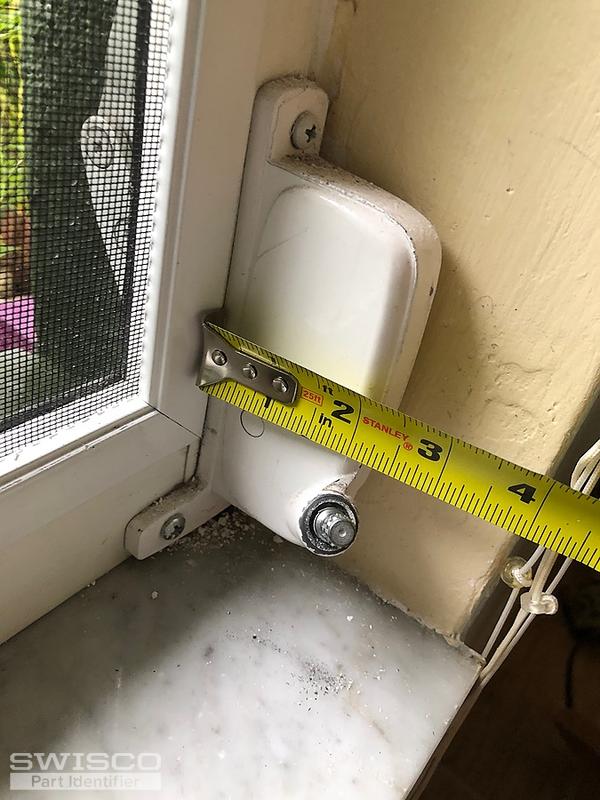

The vertical measurement is 6 inches which includes the flat sections above and below for the mounting screws. It comes out from the window about 2 1/4 inches. It is mounted by a single screw at the top and a single screw at the bottom. The notches in the handles or the post to which they attach or possibly both are getting stripped so if it's possible to replace just those posts and handles then that's all I need, otherwise I need to replace both left and right hand unit.

Bob · Accepted Answer

This is possibly our 39-026 and 39-025, but you'll need to remove your old operators from the window and compare all the dimensions, including the hole pattern and link arm hole, to confirm this.
