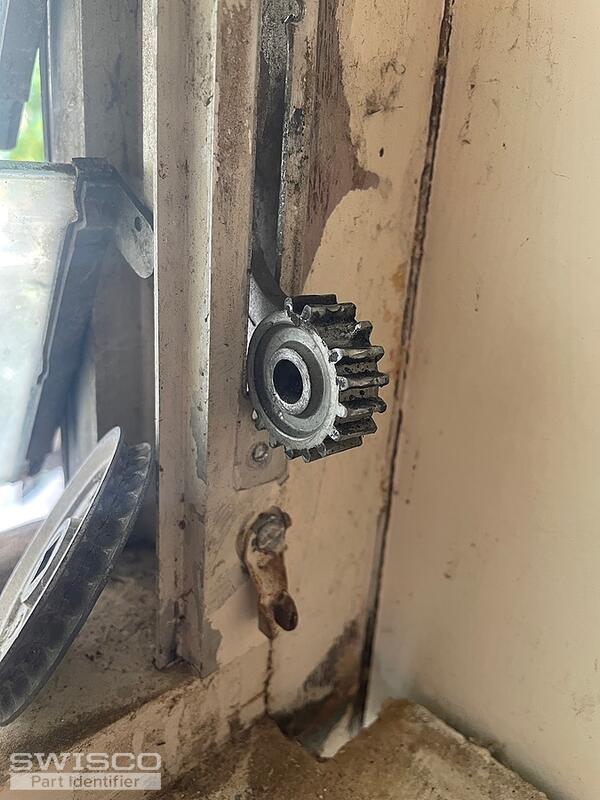

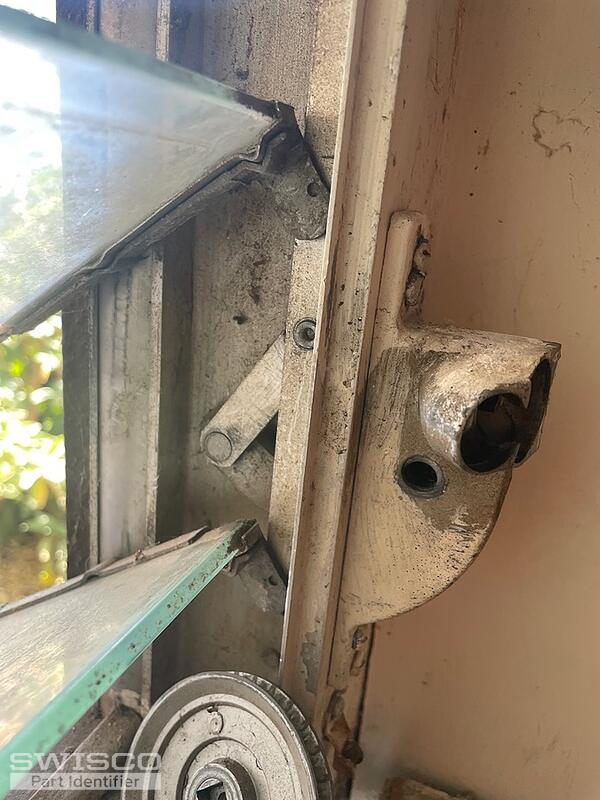

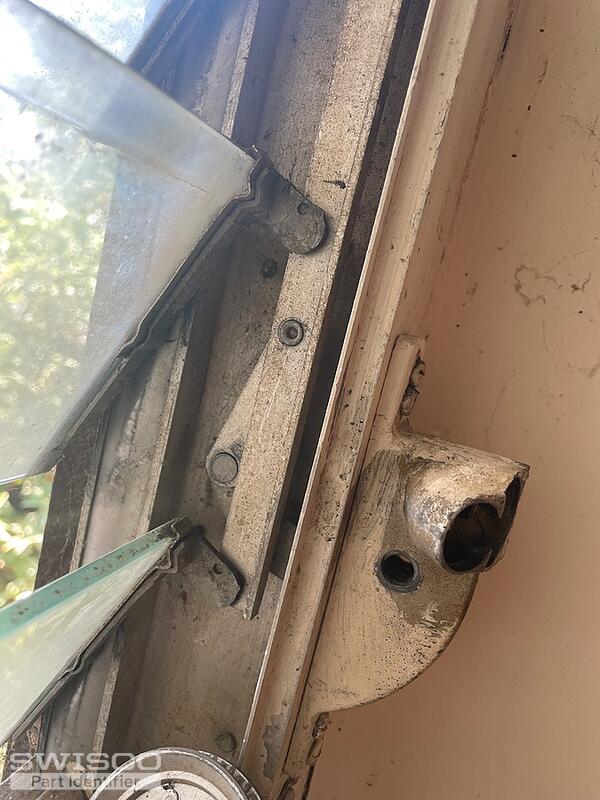

This jalousie crank is/was actuated with a pull chain. There are three gear cogs, one is attached to the pawl arm that in turn raises:lowers the rail holding the glass louvers. Broken tooth, so no workie. Not sure what my repair part options are going to be?
(Edit: "Pawl arm" not panel arm.)

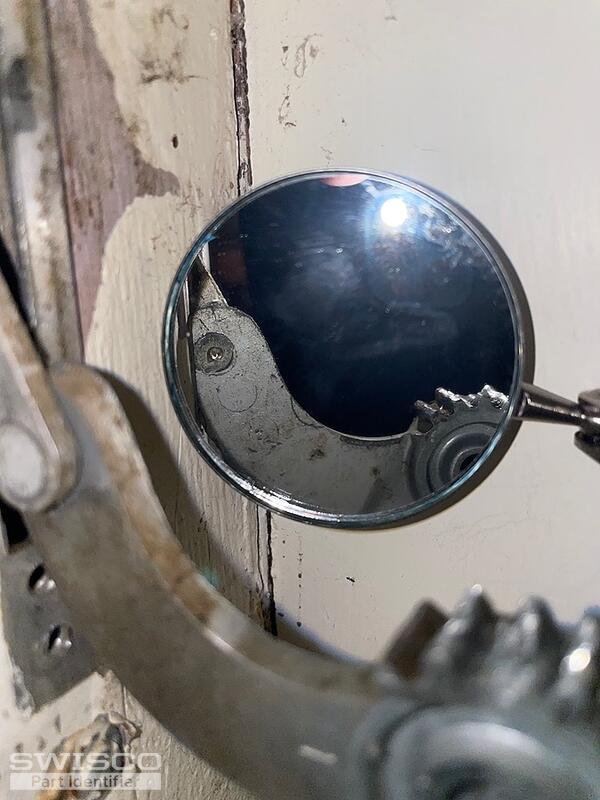

Here is what the backside of the panel arm's rivet looks like. Presumably any new retrofit crank would need to connect at that point and do I have to be able to detach the panel arm.
Hello,
We do not carry an exact match for your old-style operator, but we offer two options for jalousie windows, the 39-165K and 39-346. Take a look and review the specifications of both options to determine if they could work for your application. Thanks for posting!
