Jalousie window operator

Home Owner from Brooklyn NY

Jan 30, 2024 11:01 pm

Right handed
On base says RD. 1963
Pat# 190208
Says-92 inside box

3 user uploaded images

5 Replies

+ Add a Comment

Casey from SWISCO

Feb 1, 2024 9:56 am

EXPERT

Hello,

We'd be happy to look into this for you but we would also need to see the rest of the link arm that attaches the crank to the window linkage. If you could write out the exact distance between the installation holes, as well as measure the diameter of the hole at the end of the link arm, that would also help us narrow down your options. In the meantime, you're welcome to look through our selection here. Thank you!

Home Owner from Brooklyn NY

Feb 1, 2024 3:20 pm

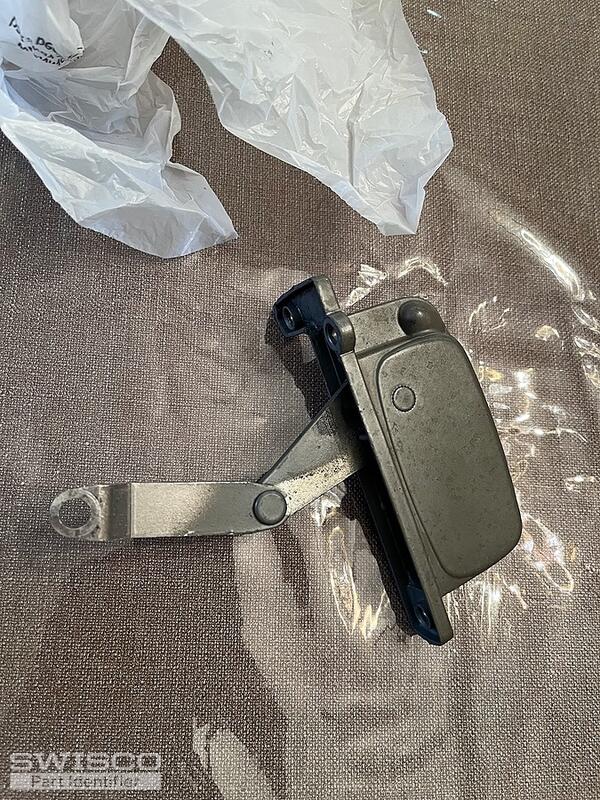

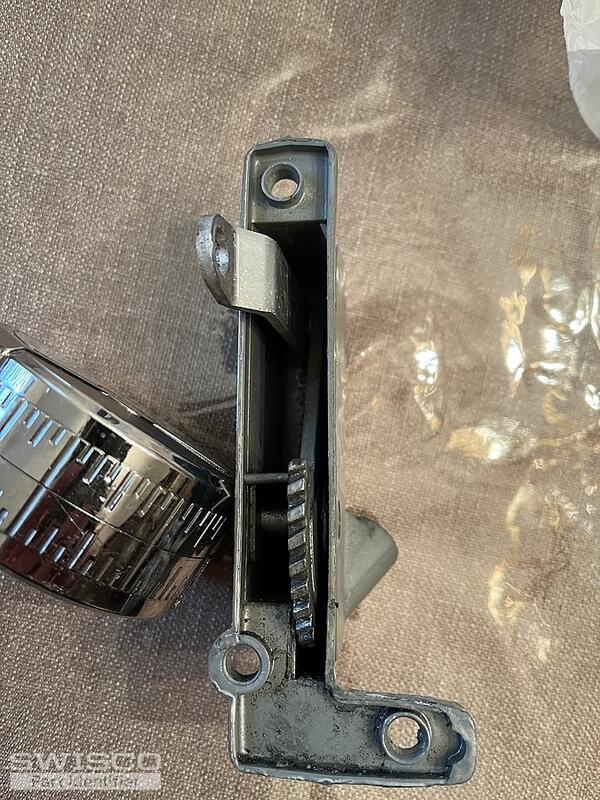

Attached are pictures of link arm and installation holes. The link arm hole size is3/8 inches. There are 3 installation holes. Two on bottom not parallel to one another and one on top not exactly in line with either bottom hole.
The hole most in line with the top is 4.5 inches away. The other bottom hole is 5.25 inches from top

2 user uploaded images

Casey from SWISCO

Feb 1, 2024 3:43 pm

EXPERT

Thanks for getting back to us. Your operator resembles the 39-259 shown below. We also offer the 39-258 opposite-handed version. Take a look and let us know if you notice any discrepancies.

Dimensions for 39-259

Home Owner from Brooklyn NY

Feb 2, 2024 8:22 am

It looks like a very good match. I would also need a couple of plastic 3/8 diameter circular pieces to help hold it in place. How do I place this order and how long for delivery? Should I order through the phone number?

Casey from SWISCO

Feb 2, 2024 8:49 am

EXPERT

The 33-206 washer and 33-081 screw used with these cranks are also related on our product pages. You are welcome to order directly on our website or give our customer service team a call at (888) 991-1929. We also offer multiple shipping options for you to choose from at checkout.

+ Add a Comment
