Jalousie window operator

Question

I have all right hand operators. I was looking at part #39-025 but saw the extension arm measurement is 2-1/4 inches. The measurement on my operator is 2-1/2 inches (see photos). All the other dimensions are the same. I was wondering if the 39-025 would work? Any assistance and information you can give me will be greatly appreciated.
Thanks in advance for your help.
Tom

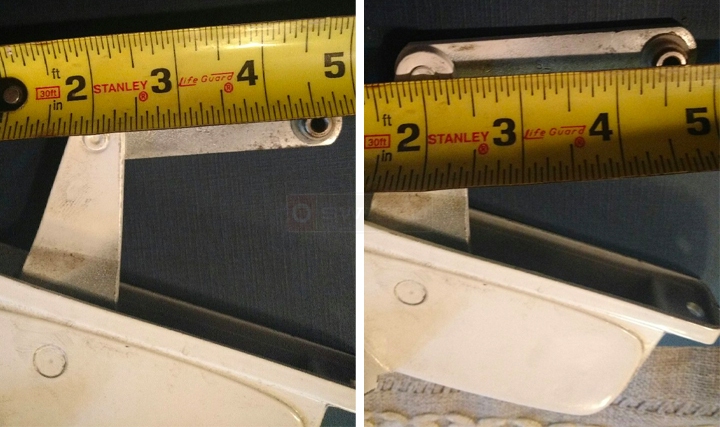

User submitted photos of a window operator.

Dave Sr. · Accepted Answer

Hello Tom. Looking at your photos, I too, would have to agree that our 39-025 awning operator would be my first choice as a replacement part. If all the other dimensions are the same as yours, I believe you should be fine. The 1/4" difference in the link arm will be made up with the "travel" play in the operator and window.
