Jalousie window operator

A professional from Gainesville Florida says:
July 28, 2023

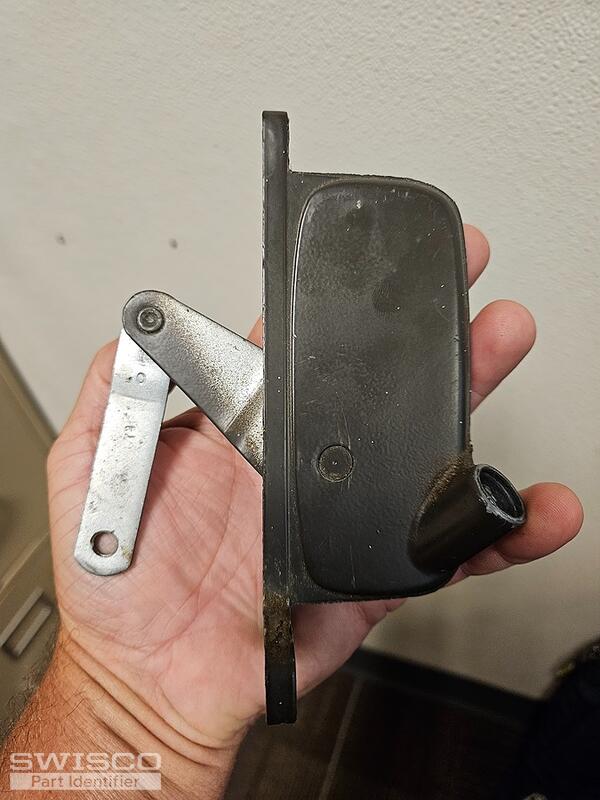

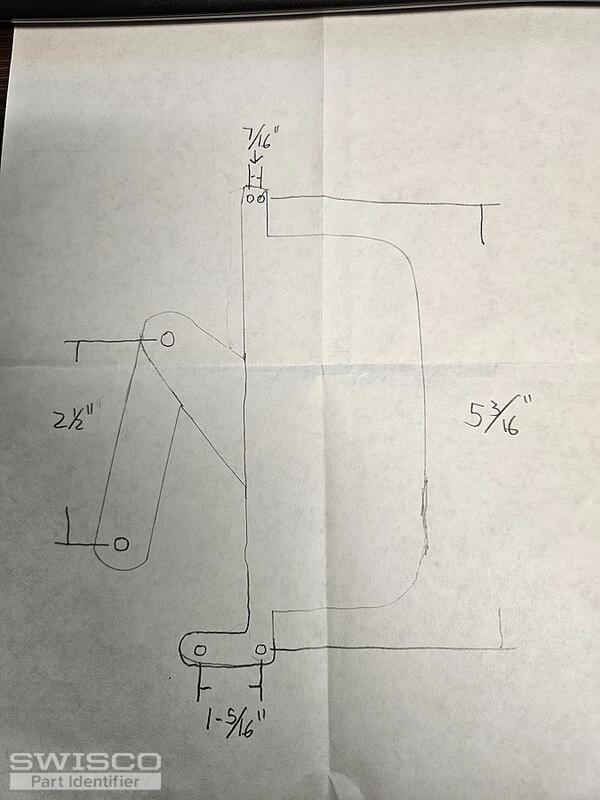

I need to order several awning type window cranks. This is the info from the operator and attached is a picture of the operator and a dimensional sketch.
RH, RD 1963 CAN, PAT No D-198202
Thumbnail of the uploaded file named 20230728_142332.jpg
Thumbnail of the uploaded file named 20230728_143157.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
August 1, 2023

Hello,

Based on the position of your installation holes and what appears to be a threaded hole at the end of the link arm, your operator could be the 39-017 that was used on Pan Am windows. See the 39-016 for the opposite-handed version. They also come in a Bronze color like the assembly shown in your photo. Take a look at the specifications below and see what you think.

Dimensions for 39-017
Dimensions for 39-017

#10 x 1/2" Pan Head Phillips Screw
#10 x 1/2" Pan Head Phillips Screw
33-081
$0.18
Pan Am/Daryl Window Crank
Pan Am/Daryl Window Crank
39-017
$17.98
Pan Am/Daryl Window Crank
Pan Am/Daryl Window Crank
39-016
$17.98
3/8" Shoulder Screw, 5/16"-18 Thread
3/8" Shoulder Screw, 5/16"-18 Thread
33-067
$1.10
Shoulder Bolt Bushing
Shoulder Bolt Bushing
33-207
$0.85
How to Replace an Awning Window Operator [1080p]
How to Replace an Awning Window Operator [1080p]
