Hello!

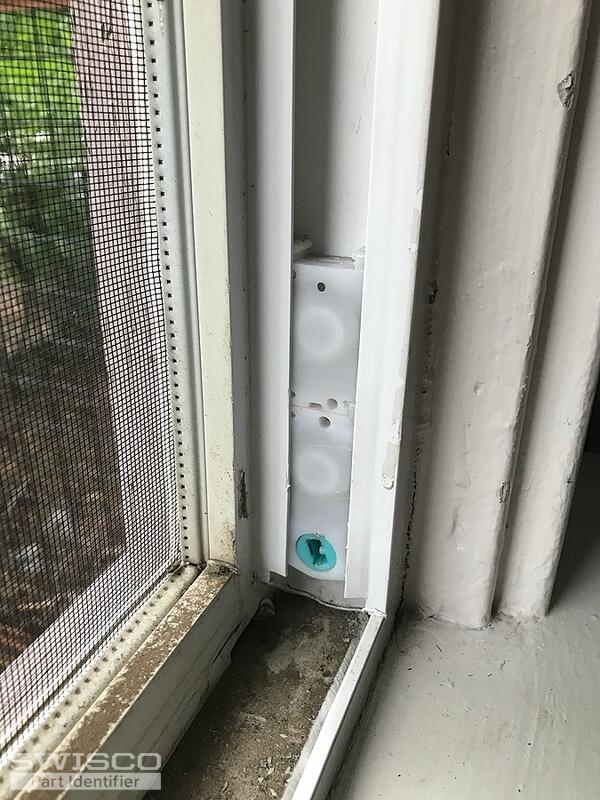

A pivot lock shoe is jammed in the track. I have tried to "unlock" the mechanism with a flat head screw driver and the blue cam just turns but no tension release is noted. I have tried to pry the pivot lock shoe up but I am unable to move the piece even with considerable force. The track itself appears to be bulging slightly where the pivot lock shoe is stuck.
My online search hasn't been too fruitful as of yet.
Thank you for your time and help! Please feel free to recommend tools to make this repair easier as well :)
Jammed pivot lock shoe on Traco single track
Home Owner from Western Colorado
Jun 19, 2022 11:38 am
1 user uploaded image
4 Replies
Emily from SWISCO
Jun 22, 2022 9:40 am
Hello!
Pivot shoes jamming in the track like this is always tricky. There's a possibility the brake pad is stuck in the extended position which is going to be a problem. You can't really force it out because you might cause damage to the window track.
Our first suggestion is to soak your pivot shoe with WD-40 for a few hours to see if that helps loosen it up. If that still doesn't work then you may want to contact a local professional to come out and see to it.
Home Owner from Western Colorado
Jun 22, 2022 11:23 am
Thank you Emily for your reply and recommendations. I'll give it a try and see what happens!
Emily from SWISCO
Jun 22, 2022 11:34 am
My pleasure. Let me know if you need anything else and good luck with the repair!
