Handy Person from Alabama

Nov 3, 2023 5:55 pm

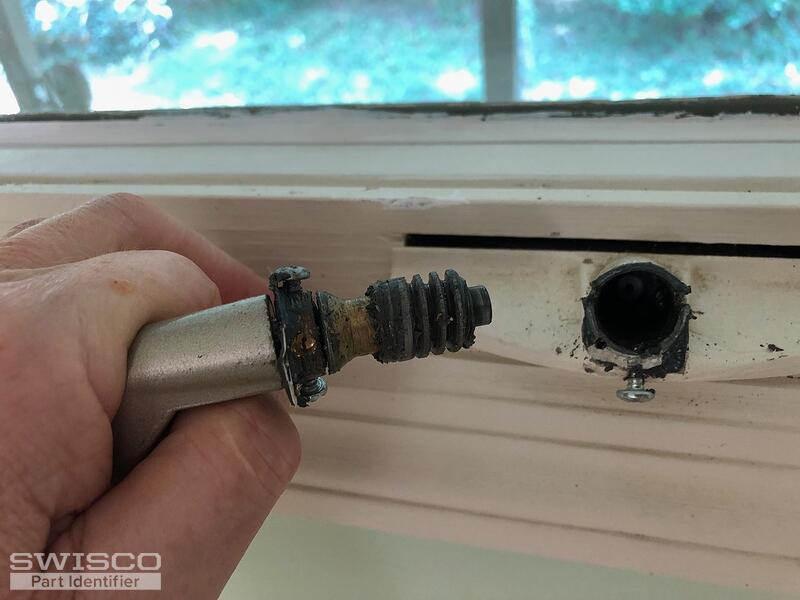

Probably Jelco cranks dating from the 1990's. Threaded insert (male) popped out, You can see three set screws added in an attempt to fix. (Didn't last for long.)

3 user uploaded images

6 Replies

Emily from SWISCO

Nov 6, 2023 3:03 pm

Hello there!

It appears your operator is stripped. We should be able to help with this though I'll need more information. Can you show us a bird's eye view of the operator's arms as well as how they connect to the sash?

Handy Person from Alabama

Nov 7, 2023 12:23 pm

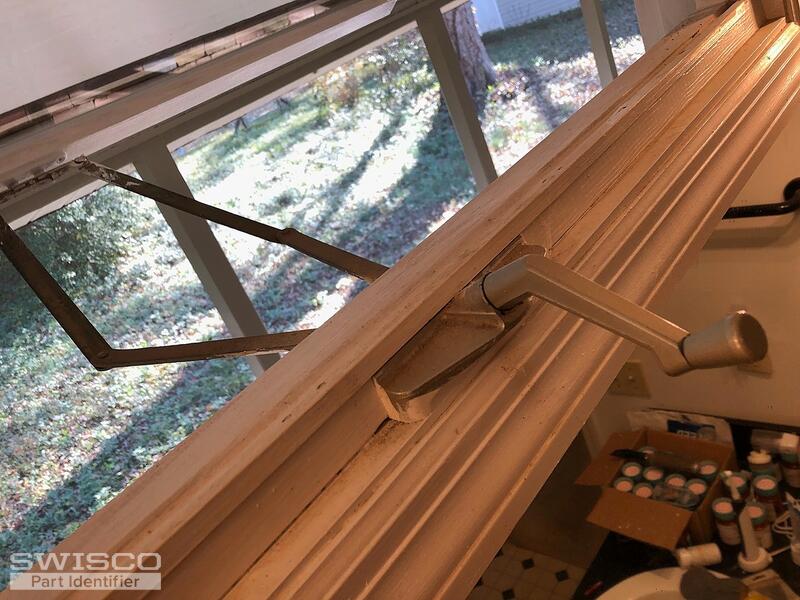

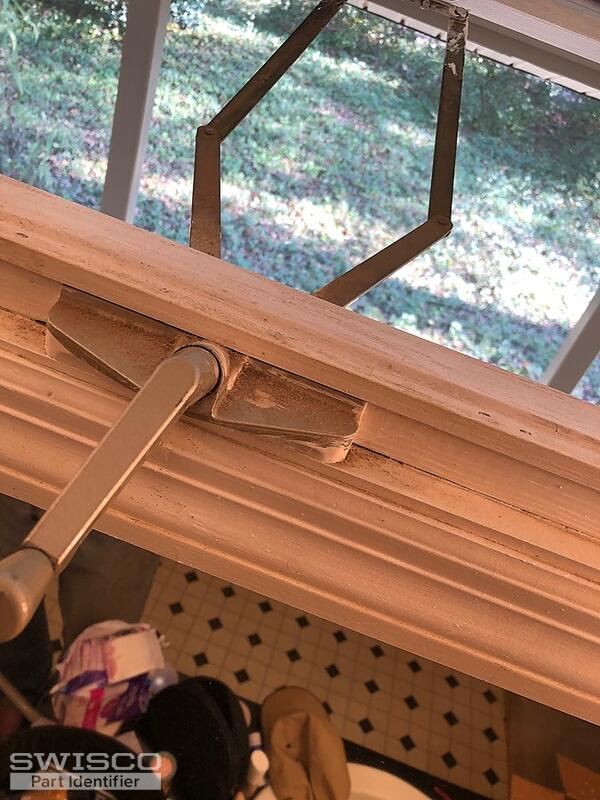

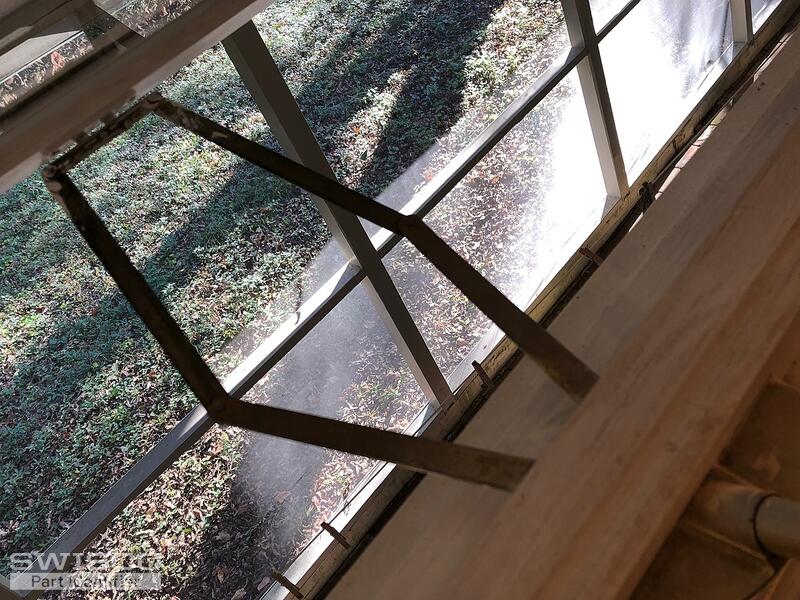

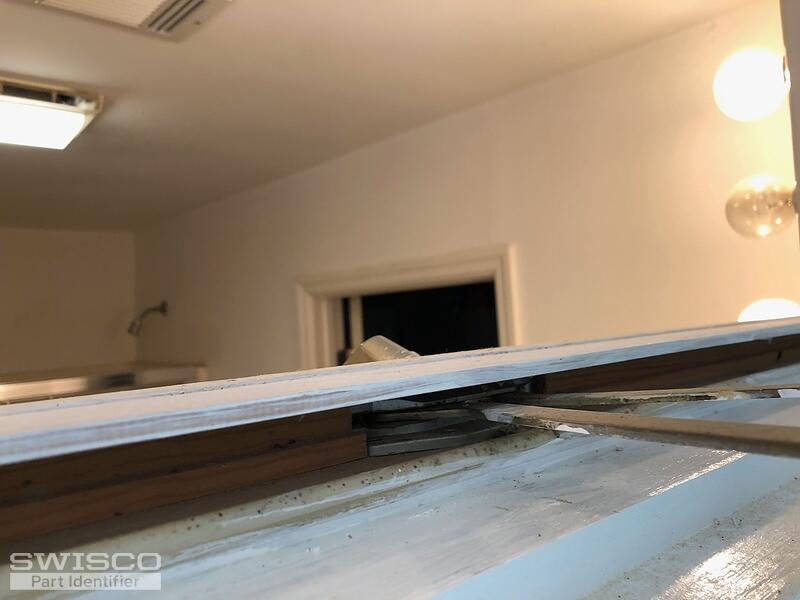

Here are some more pictures. If this isn't sufficient, I can send the whole thing to you since I'm going to have to remove it anyway.

5 user uploaded images

Emily from SWISCO

Nov 8, 2023 8:27 am

This is a huge help, thank you! I recommend you start by taking a look at our 39-083 and 39-140. Review the specifications for each and see if one matches what you're searching for.

Handy Person from Alabama

Nov 8, 2023 12:01 pm

Excellent service and your video is great. BUT,I have one last question before I order; How do I measure to differentiate between the 16" and the 21-1/2 models?

Is it the length fully open and extended?

Thanks again.

Emily from SWISCO

Nov 8, 2023 12:56 pm

These operators are measured from "elbow to elbow" when the assembly is closed and removed from the window. You can use the images below as a reference for exactly what I mean.

Dimensions for 39-083

Dimensions for 39-140
