Jeld Wen Patio Screen Door Corners

A home owner from USA says:
July 9, 2018

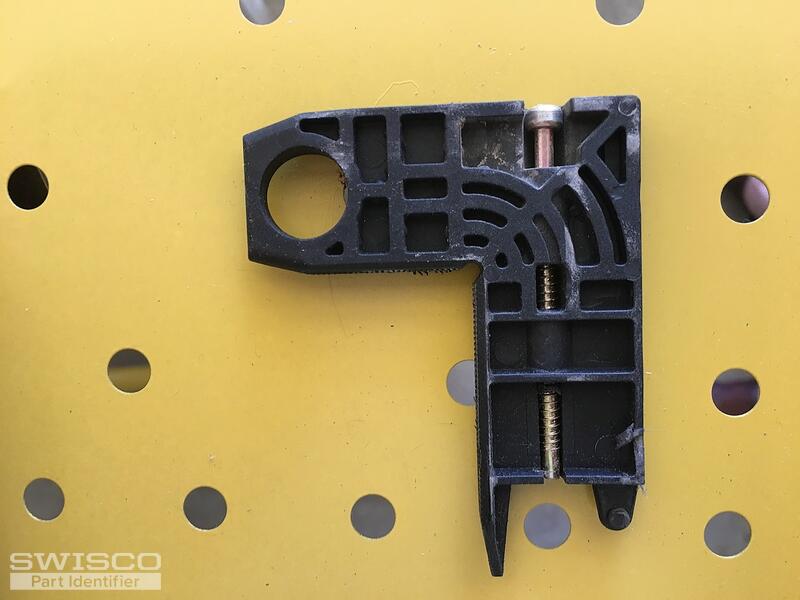

I have removed the corners from my Jeldwen patio screen door. The dimesions you give for 95-020 are correct but I am wondering if the length of the 95-020 would match my corner. I have attached a photo of it.

If I place my corner in the same position as shown in the 95-020 photo, the height of my corner is 2.50 inches and the length is 2 7/8 from the end to the center of the roller pin. Can you tell me of 95-020 is the correct replacement? Oh, my corner is some type of resin and not metal. Thank you.
Profile picture of Paul
Paul from SWISCO responded:
July 17, 2018

Thanks for contacting us. The upwards facing leg of our 95-020 is 2-3/4" long from elbow to tip, while the bottom facing leg is 3-5/16" from elbow to the longest point. Could this still work for you?
A home owner from USA says:
July 18, 2018
That is exactly the same size I have and for what they cost it is worth a try. We dislike not being able to open the patio door and get some fresh air in the summer. It's a shame Jeldwen cannot help us but then again, they do not manufacture the screen doors.
Acorn Patio Screen Door Corner
Acorn Patio Screen Door Corner
95-020
$3.75
