Jeld Wen Replacement Channel Balance

Contractor from Salinas, CA

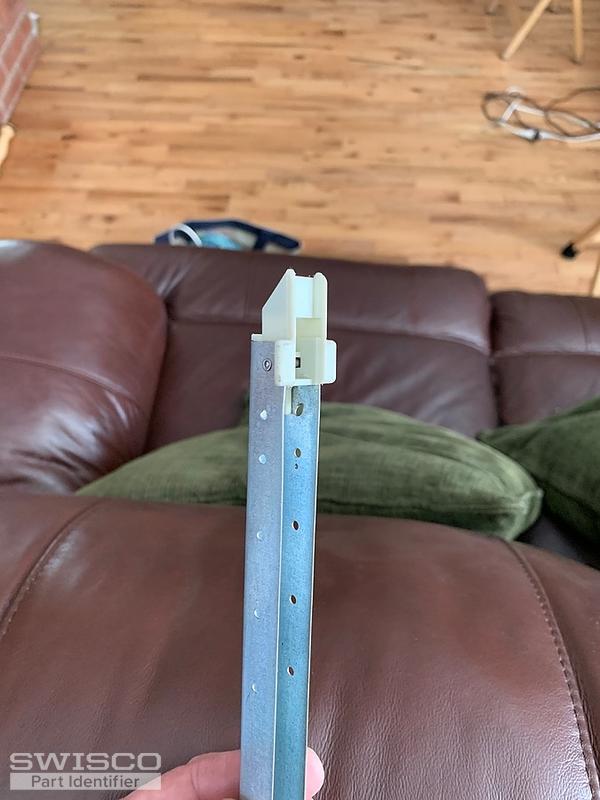

I have one window that weighs 11.5 lbs. I need 2 replacement channel balances. The length from metal to metal excluding the plastic ends is 14-5/8" and the other dimensions are 9/16" x 5/8". I looked on your website but could see the exact replacement. Please let me know what to order.

Thanks,

Marc
5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. We can replace these balances for you, but they have to be custom made because they do not match any of our stock items as you noted. I just need a little more information to get this process started. First, there is normally a clip at the end of a nylon cord that comes out of the bottom nylon shoe. Can you show us this clip on a version where its still intact? It should be something like our 62-108 or 62-106, for instance. Second, that stamp code looks a little weird. Is there another version of the balance you can show us where the stamp is clearer to read? Finally, how many balances do you need? From there, we'll get this moving for you.

Contractor from Salinas, CA
Hi Bob,

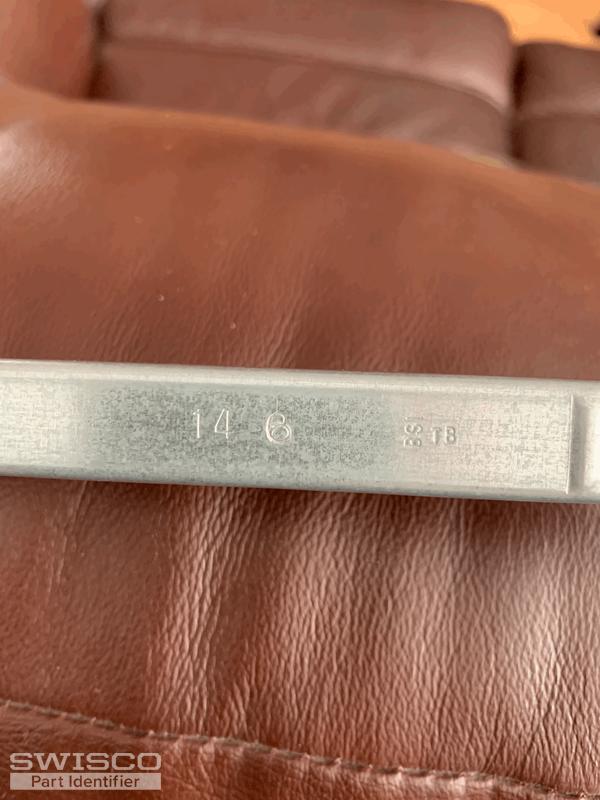

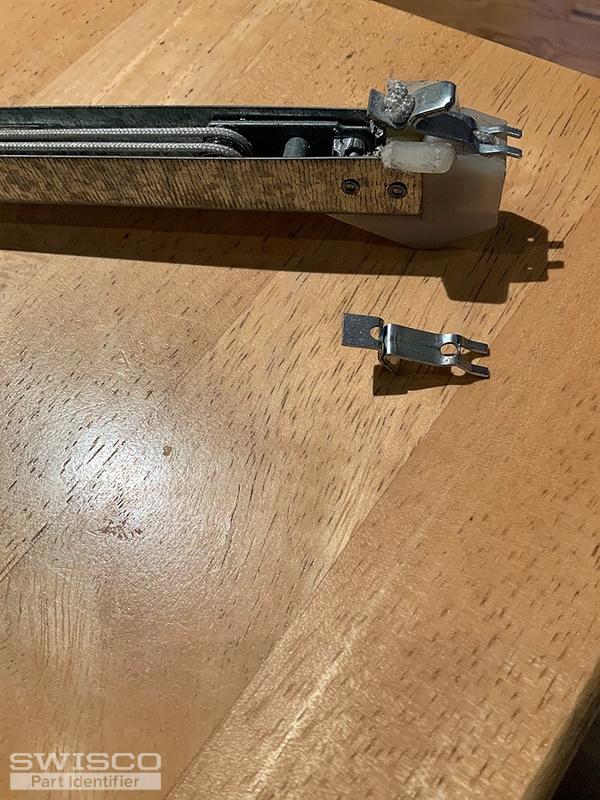

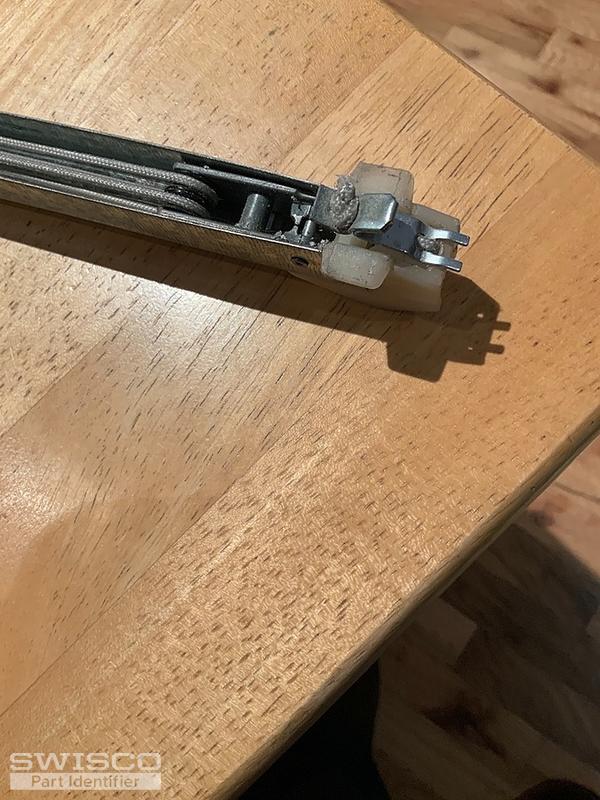

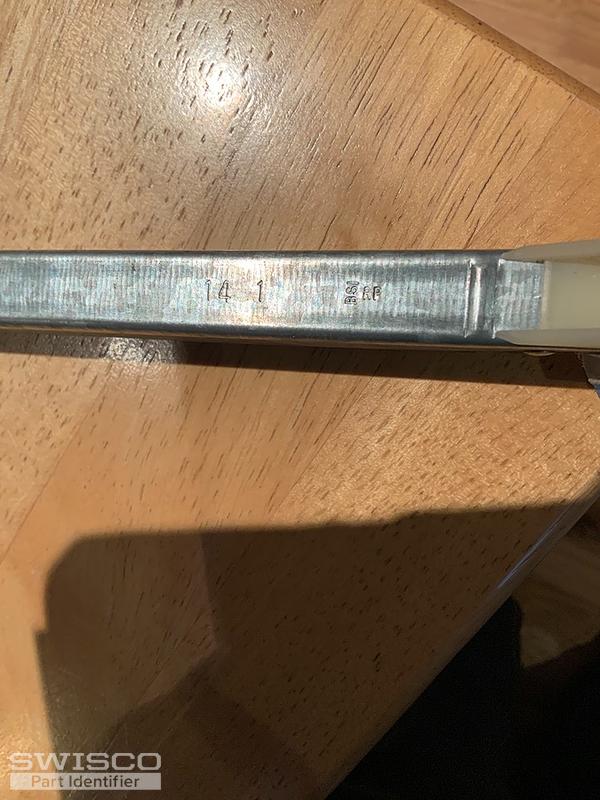

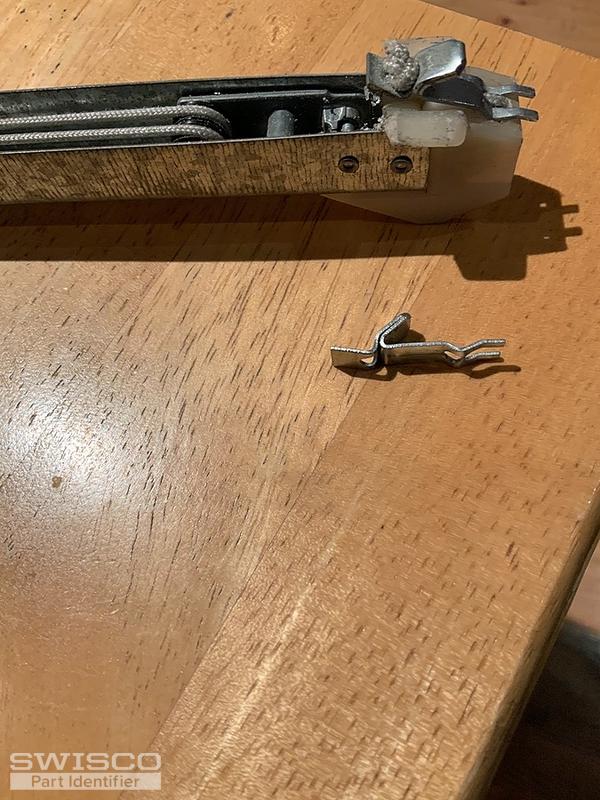

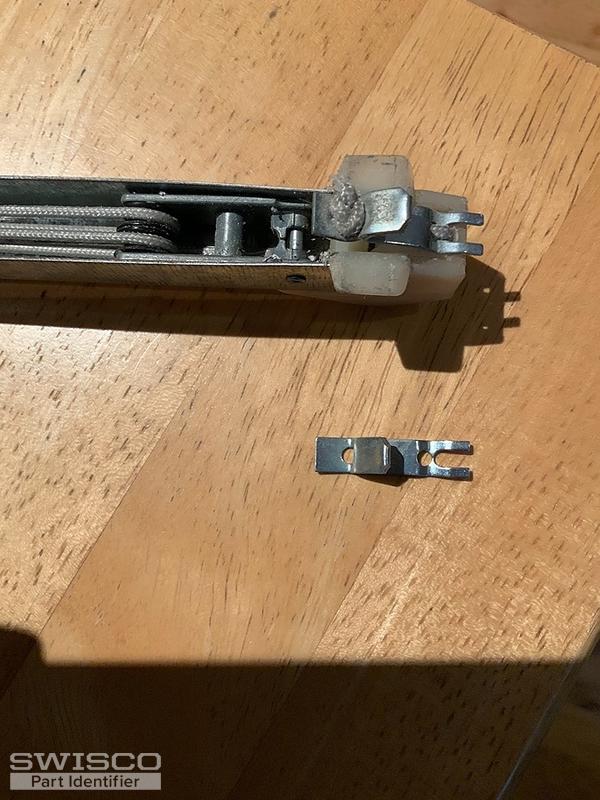

Please the attached photos showing the numbers stamped on the balance from the other side of the window as well as a picture of the clip. The balance from the other side of the window is the same measurement I gave you earlier. The clip is 1/4" W x 1-1/4" L.
I need 2 balances.
5 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

That's perfect, thank you. I just sent you an email with a custom link enclosed to order a pair of these balances stamped 14-1. Let me know if you have any questions prior to placing this order. Thanks again for reaching out.
