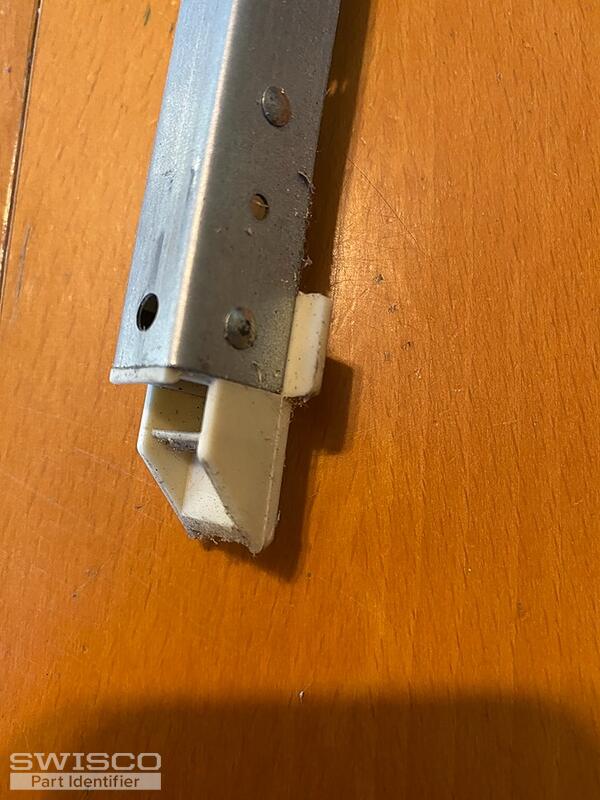

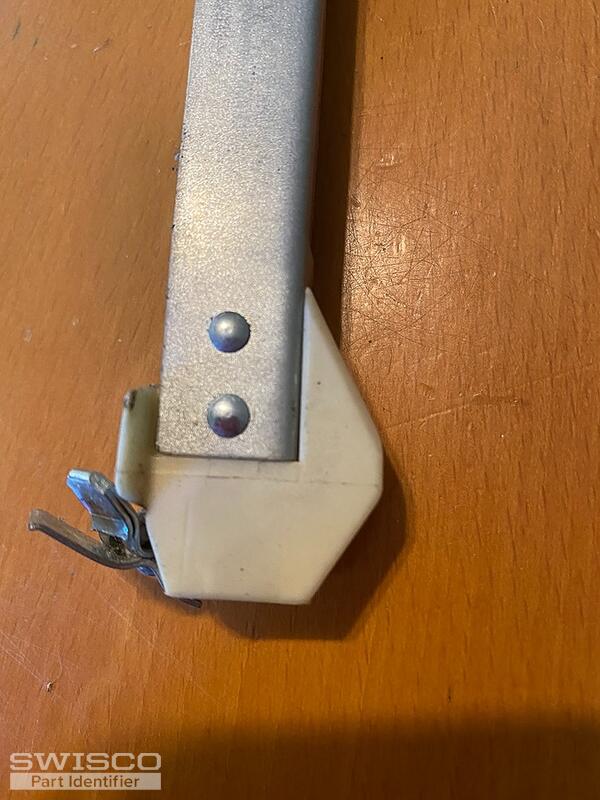

I need to replace a Jeld-Wen single hung, non-tilting window balance as the metal clip that holds the end of the cord into the vinyl frame has broken. Or, is the Jeld-Wen style cord clip available separately?

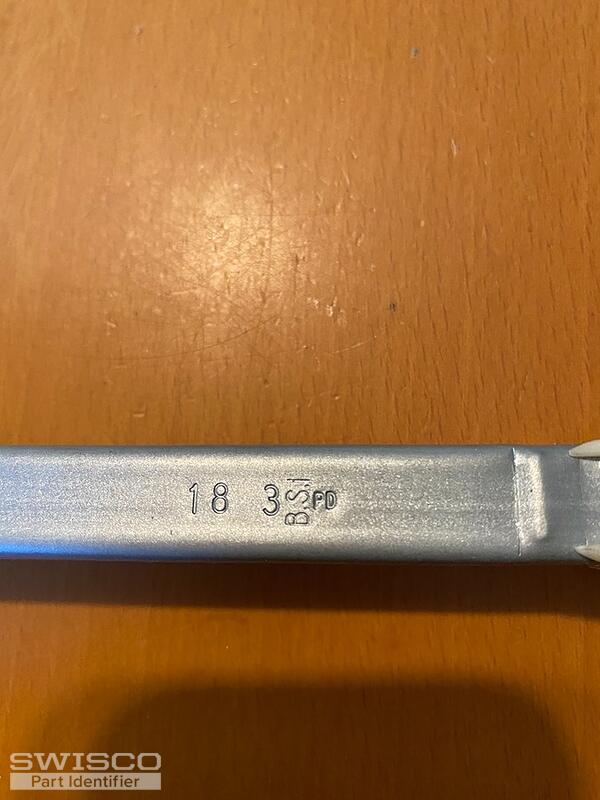

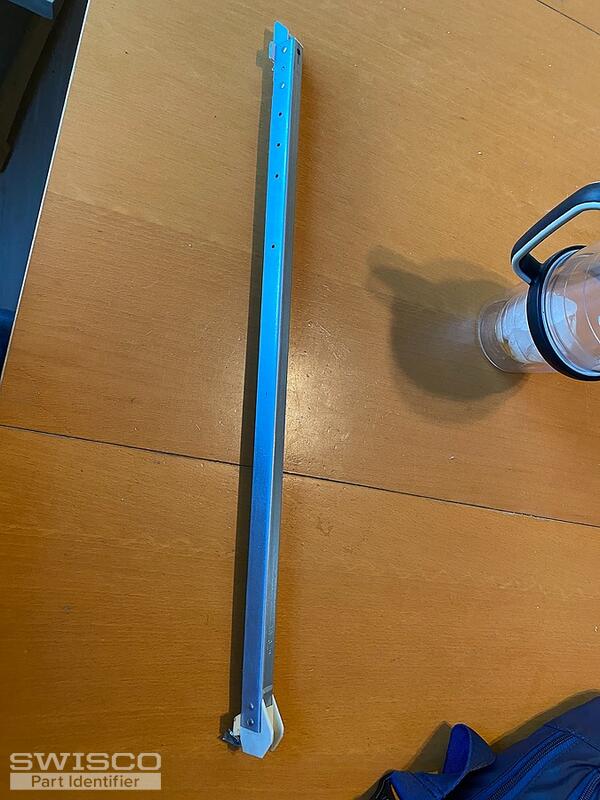

The metal part of the balance measures 1/2" wide by 18.5" long. It is marked "18 3 PD" and "B.S.I" (please see photo).
Jeld-Wen Window Balance
Home Owner from Clayton, CA
Nov 19, 2022 3:07 pm
5 user uploaded images
2 Replies
Tom from SWISCO
Nov 28, 2022 11:21 am

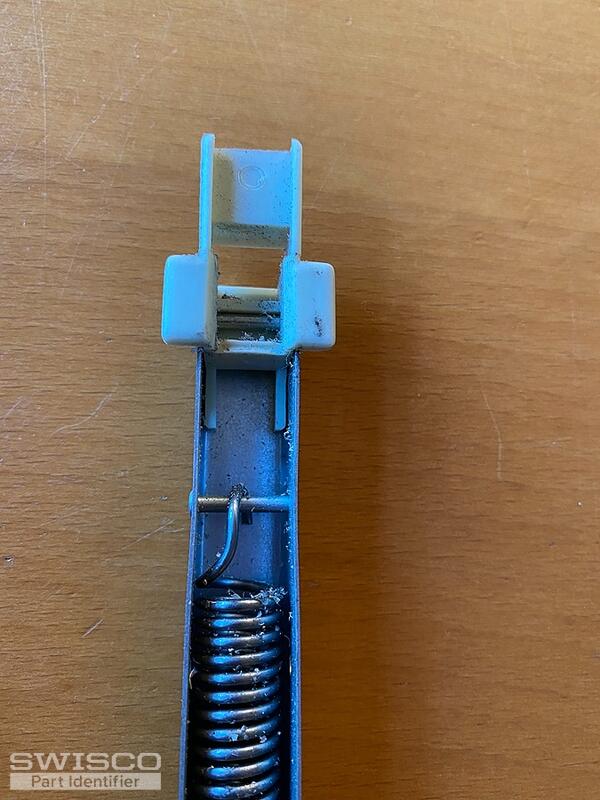

Thank you for your patience during these busy holidays. We can supply this balance, but it will have to be a custom order due to its configuration. What you have here is called an "extended travel" channel balance, named for its unique block and tackled configuration.
Before we go any further, can you tell me how many you needed? Can you also verify the length of the metal channel? Based on your stamp it should be 18-5/8" long, not 18-1/2".
Once I have that information I will email you a purchase link and price quote that you may use to place an order on our site.
