Jeld-Wen replacement balance

A home owner from Hattiesburg, Mississippi says:
October 20, 2020

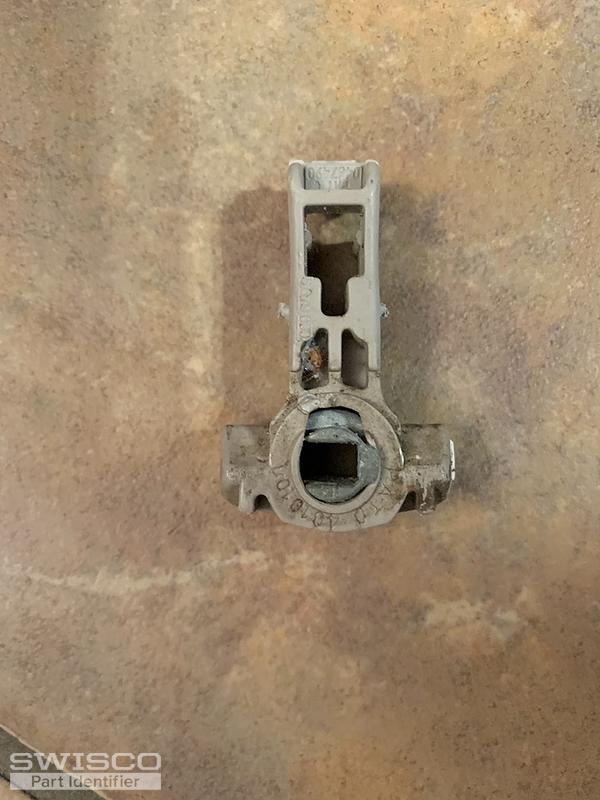

I need a replacement balance for a Jeld-Wen tilting vinyl window. The old balance has 32D BSI stamped on the square channel. According to an instructional Jeld-Wen video on how to install a balance, this is a Type C balance. So can you provide me with a 32" Type C balance to fit a 4'x6' Jeld-Wen tilting vinyl window. I will need all the parts that attach to it, shoe and any other pieces as shown in pics, thanks
Thumbnail of the uploaded file named 12854298-DB28-4058-BC1D-9EA6627273B8.jpeg
Thumbnail of the uploaded file named D67B5B29-4E08-4AD4-A477-F03FF6C3B307.jpeg
Thumbnail of the uploaded file named 76BBADF0-43C6-4E51-9000-89367492B835.jpeg
Thumbnail of the uploaded file named 32BC0965-DCED-4B96-BE48-2AB8A7960605.jpeg
Profile picture of Casey
Casey from SWISCO responded:
October 23, 2020

Hello,

You'll need to replace the balances with our S795-32 channel balances with a 32D spring strength option. Keep in mind that our balances install using a screw tab and your balances use hooks that anchor the balance to the jamb. In your case, you may be able to adapt your window to use the screw tab using the 26-200 screw plug if the cut out where the hook installs is square. Take a look and see what you think. Thank you!
32" Series 795 Channel Balance
32" Series 795 Channel Balance
S795-32
$14.52
Balance Screw Plug
Balance Screw Plug
26-200
$0.49
Balance Clip Attachment
Balance Clip Attachment
15-198
$0.70
How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
How to Convert a Crossbow Balance to a Channel Balance
How to Convert a Crossbow Balance to a Channel Balance
VIDEO
WATCH >
How to install the 26-200 Screw Plug
How to install the 26-200 Screw Plug
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
Classifying Channel Balance Fittings
Classifying Channel Balance Fittings
GUIDE
READ >
