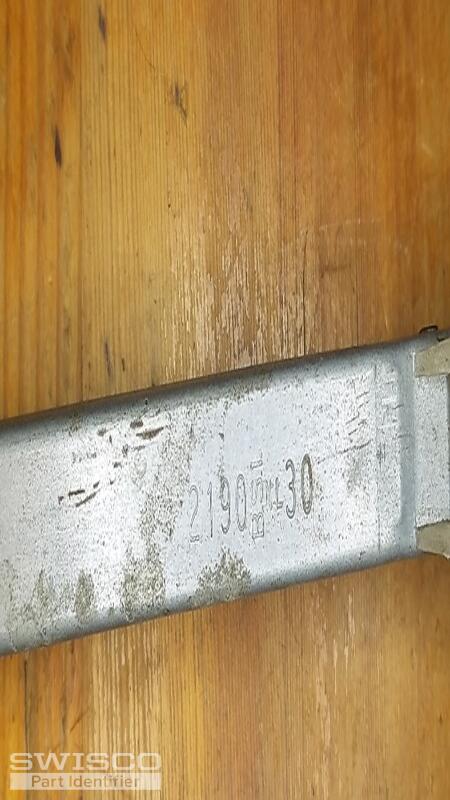

Jeld Wen side balance 2190 30

Question

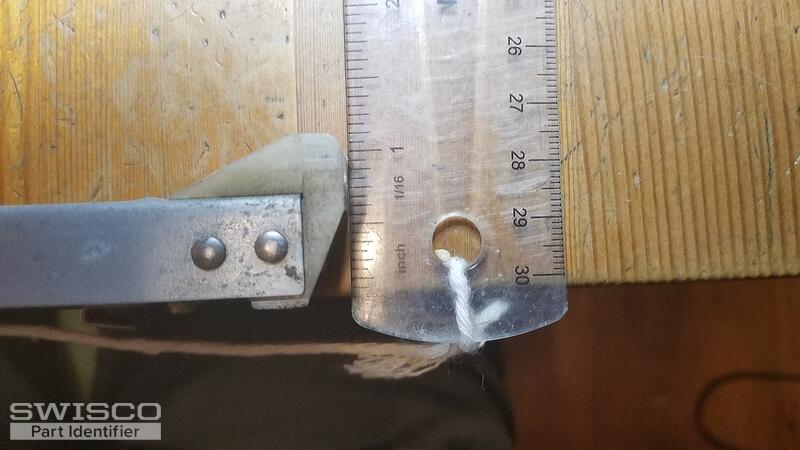

Hi, looking for two of these. Length is 22", weight of sash is 37lbs.

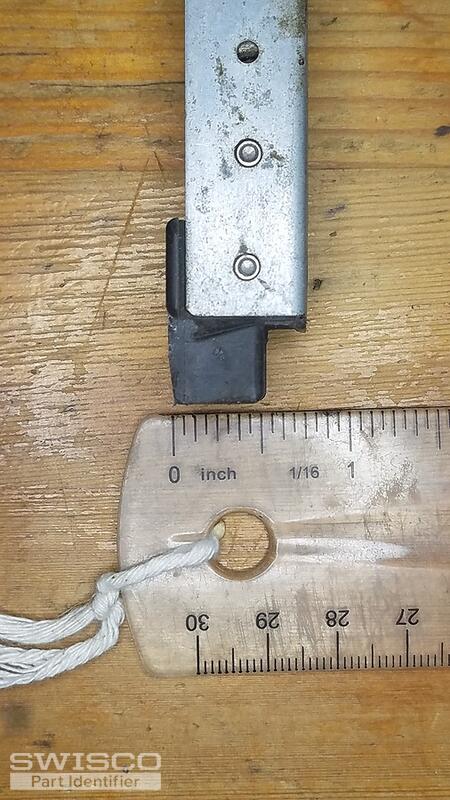

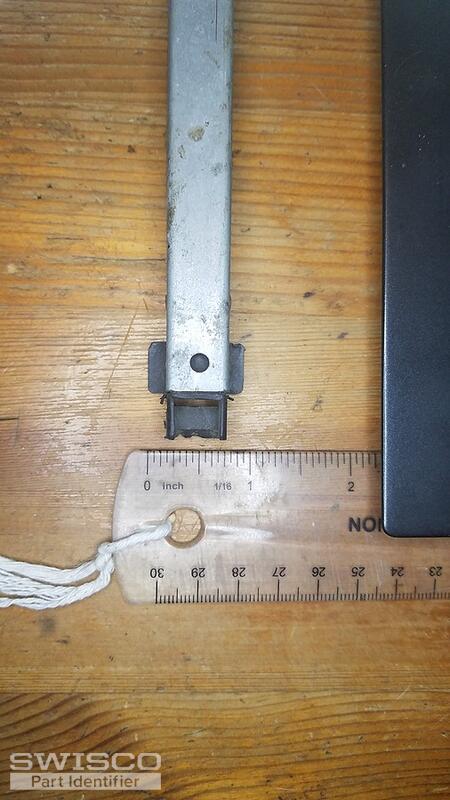

The white end appears to have had side tabs that have broken off.

Thanks for your help-
Jano

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-22 or S385-22 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also use either the 2170 or 2175 strength options to support a 37-pound sash.

2170: 34 to 37 lbs

2175: 37 to 40 lbs

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
