Jeld Wen_Casement Window worm gear : SWISCO.com

Quick Learner from Eatonton, GA

Jul 26, 2024 3:04 pm

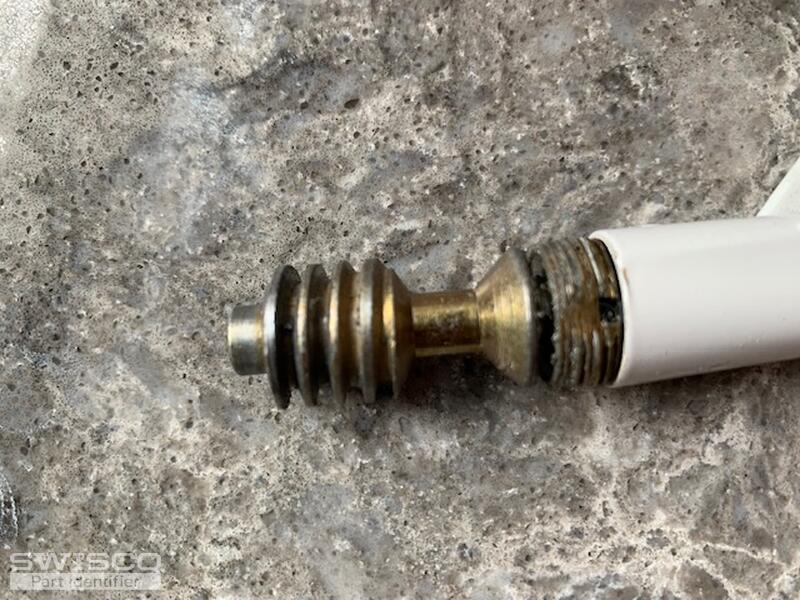

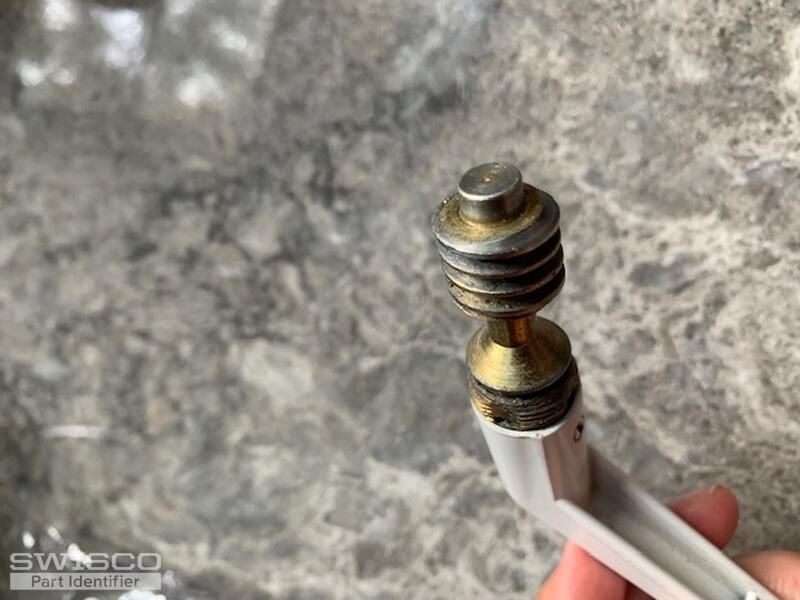

Ideally, looking for a replacement threaded worm gear or complete assembly if available...see attached photos.

2 user uploaded images

6 Replies

Emily from SWISCO

Jul 29, 2024 3:26 pm

Hi there!

Thanks for reaching out to us. The part shown here can't be repaired or replaced, unfortunately. That means you'd need a new operator assembly. Can you open the window and show us a full view of the arms that move the window sash?

Quick Learner from Eatonton, GA

Jul 29, 2024 3:59 pm

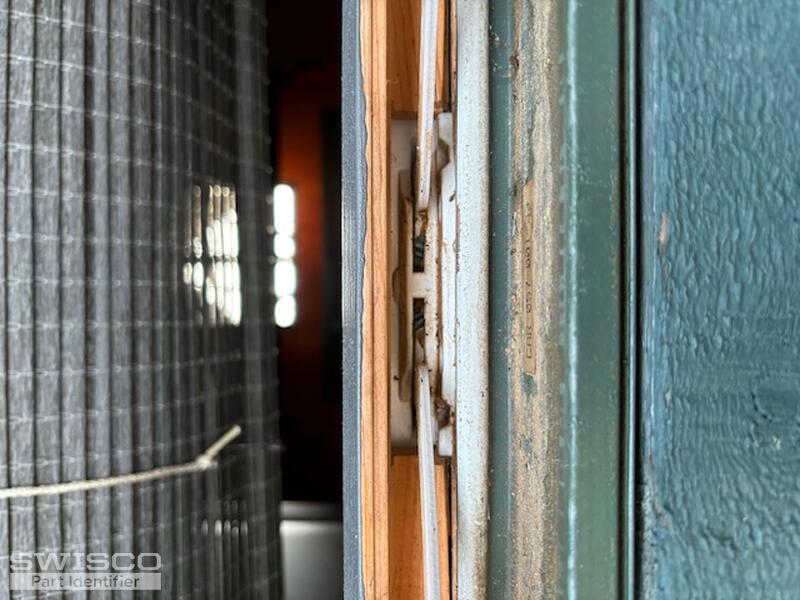

Here is a photo of the arms from the back side of the window. Let me know if you need any additional photos. Neal

1 user uploaded image

Emily from SWISCO

Jul 30, 2024 8:03 am

I'm afraid I can't get a good look at the arms from this angle. Would it be possible for us to see a bird's eye view of the operator's arm and base where the handle attaches?

Quick Learner from Eatonton, GA

Aug 2, 2024 10:19 am

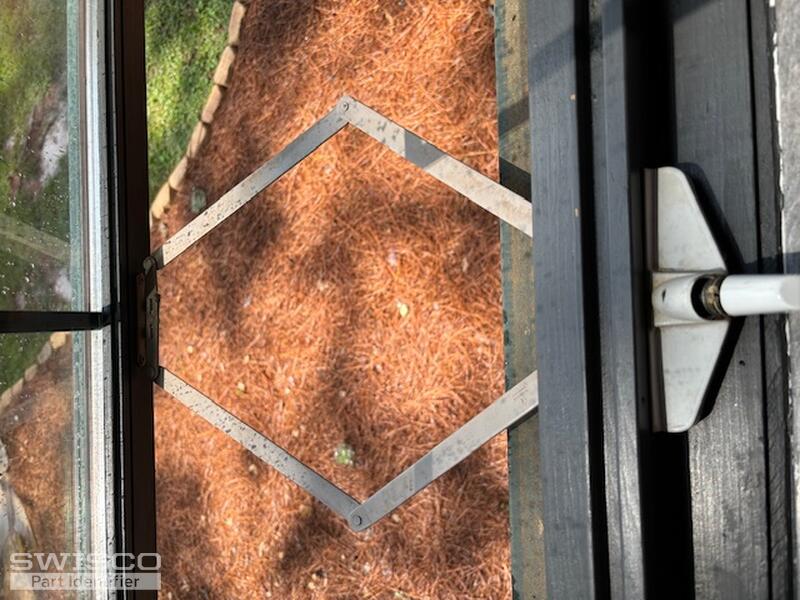

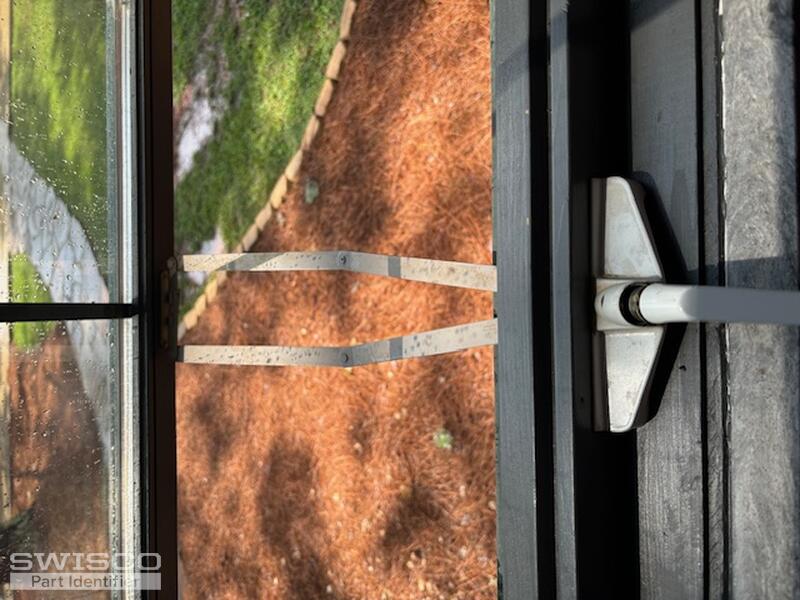

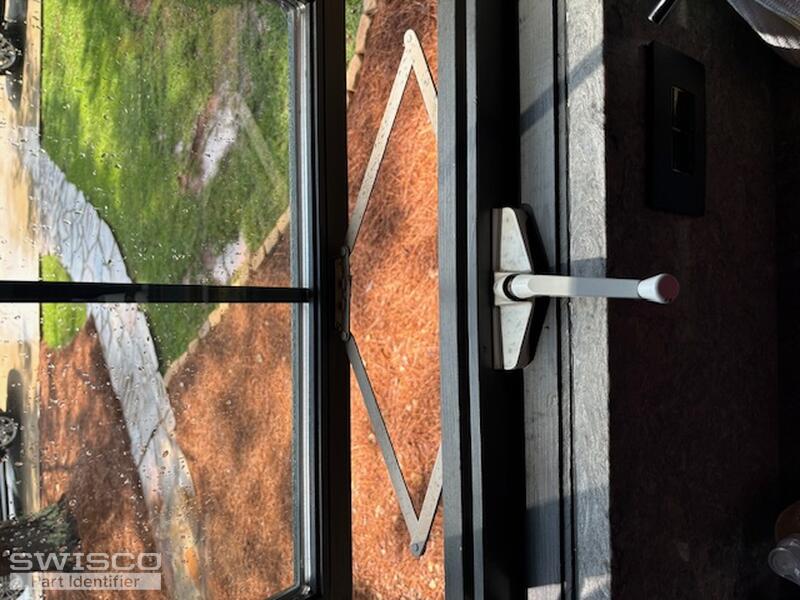

More pics, birds eye view...3 different photos of the same window.

3 user uploaded images

Emily from SWISCO

Aug 2, 2024 10:48 am

Thank you! This looks like it may be the 39-083. I recommend you review our specifications and compare them with yours to confirm they align with your old assembly.

Dimensions for 39-083
