Jeldwen (?) We think - pivot bar and balance spring

Question

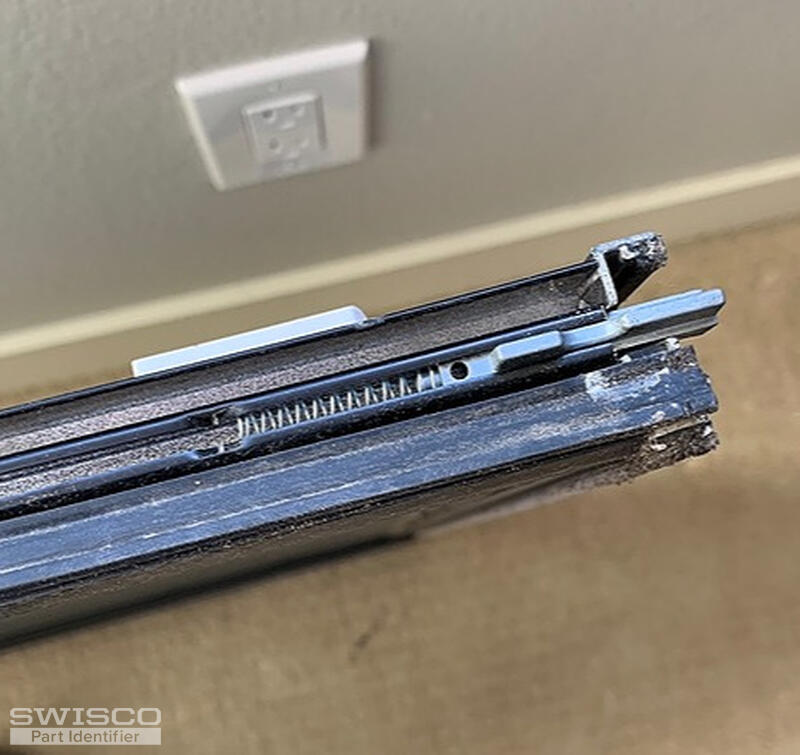

Hi there, we're having some trouble tracking down these parts. We need the spring loaded pivot bar and balance spring for these windows. We believe they're Jeldwen, but no markings to confirm. Per the owner they were replaced in ~2009. We need the pivot bar which is ~2" long. The balance springs are about 28" long. Single hung window. Please advise if you can help.

Paul · Accepted Answer

Thanks for sharing your photos with us. It seems like your window uses a pivot bar like the 26-375 along with a 26-016 spring. For the channel balance, take a look at our S795-28. I am unable to read the spring weight stamped on the metal balance channel. Could you let us know what it is?
