Jordan channel balance replacements

Handy Person from Fort Worth TX

Sep 17, 2019 1:05 pm

Jordan windows, double pane insulated
Part Number ? Left : 2830F
Part Number ? Right : 2830
Sash Weight 18.6 lb

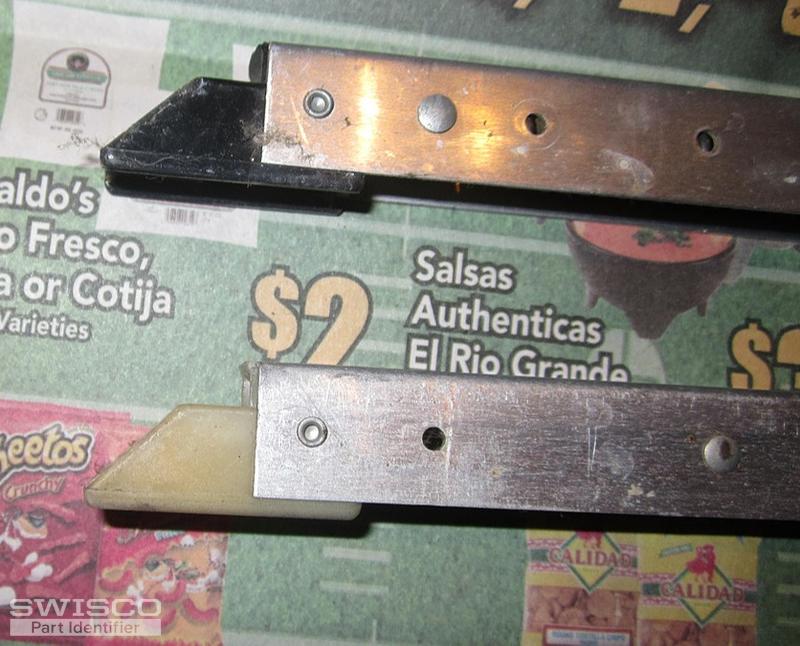

Please see attached photos for upper and lower fittings.
Thank You.

4 user uploaded images

2 Replies

Bob from SWISCO

Sep 23, 2019 2:09 pm

Thanks for posting. This looks like either our S351-29 or S390-29. The only difference between these two balances is the 'depth' of the bottom nylon shoe. Compare both with your old hardware to see what matches best. You will need a stamp option of 2830.
