I need to replace the channel balance on this window. The metal part is 29". A handyman took the window apart for me and will install the new channel balances when I receive hem. Although only one has failed I want to replace both sides.
Thank you for your help with this project .
Rosemary
Oh, I see! I accidentally uploaded the wrong photo. I'm sorry about that! The image below is what I had meant to post originally. Both the Series 351 and Series 390 have non-winged top and bottom fittings. If your bottom fitting measures 1" deep then you'd want the Series 351.

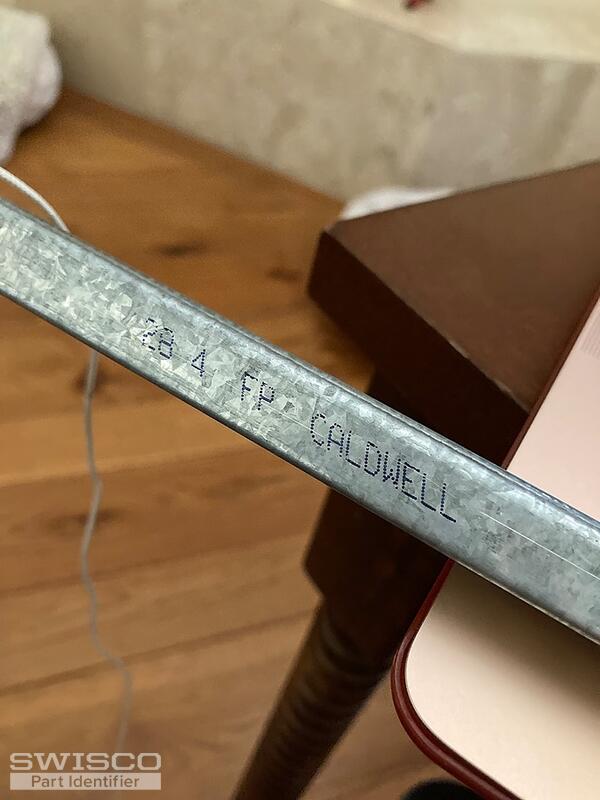

You're not being a baby! You're asking relevant questions regarding your repair. Your old 2840 stamp is calibrated for a sash weighing 23 to 28 pounds. Have you ever had trouble opening or closing your window?
The reason I ask is that you say the window sash weighs 20 pounds which would make the original 2840 stamp too strong. The 2830 stamp can support a sash weighing 16 to 23 pounds so that's what you'd want for a 20-pound sash. However, if the window has been operating the whole time without any issues then you could just stick with the original 2840 stamp. The decision is ultimately up to you!
As for how many parts you need, I'm afraid I can't say. You will need to inspect the hardware in your windows for signs of damage and go from there.
It was my pleasure, Rosemary! I'm always happy to help. I'll be here if you need anything else and good luck with your repair!
