Jordan top sash guide

Quick Learner from Morningstar

Nov 27, 2019 4:38 pm

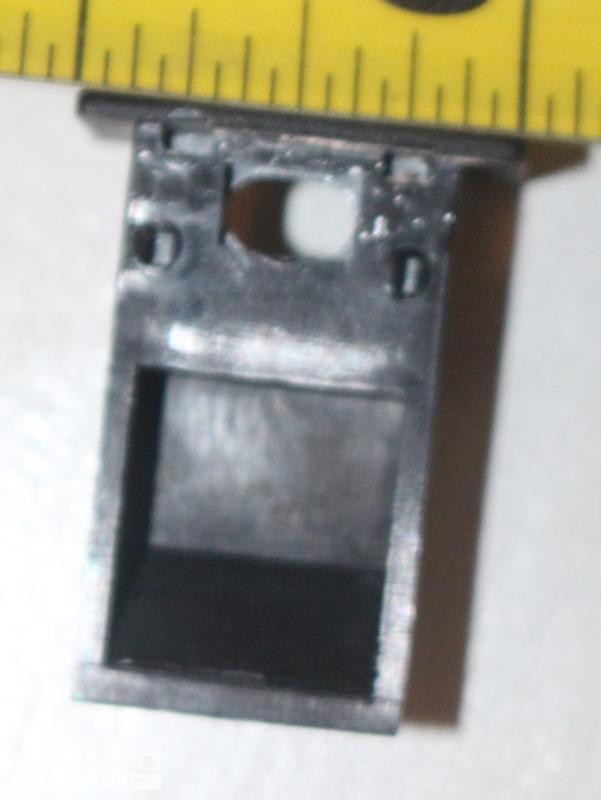

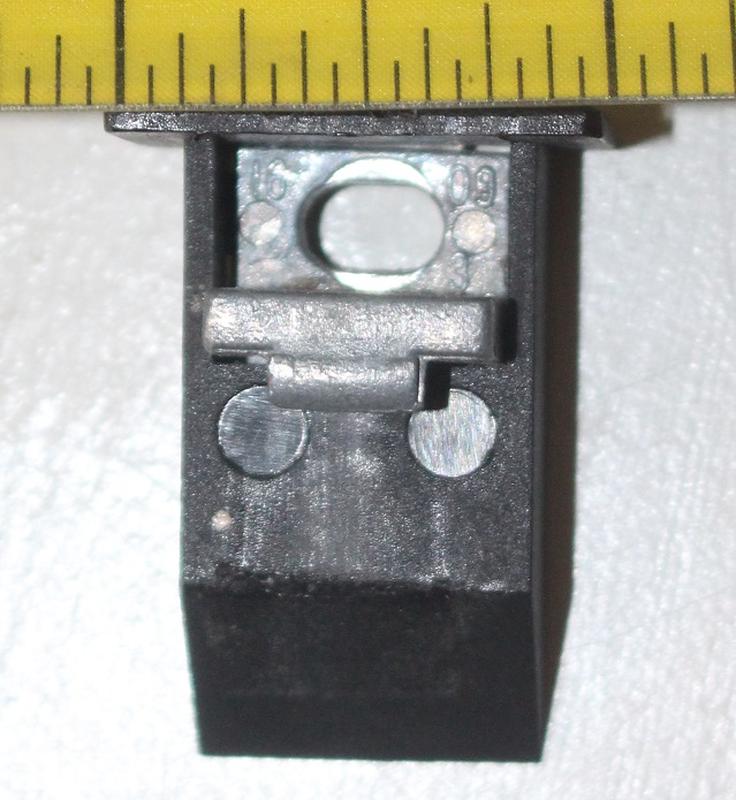

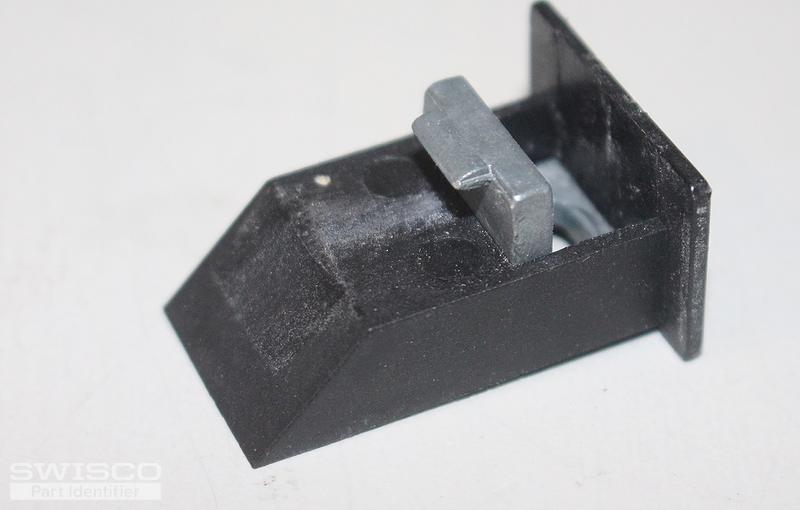

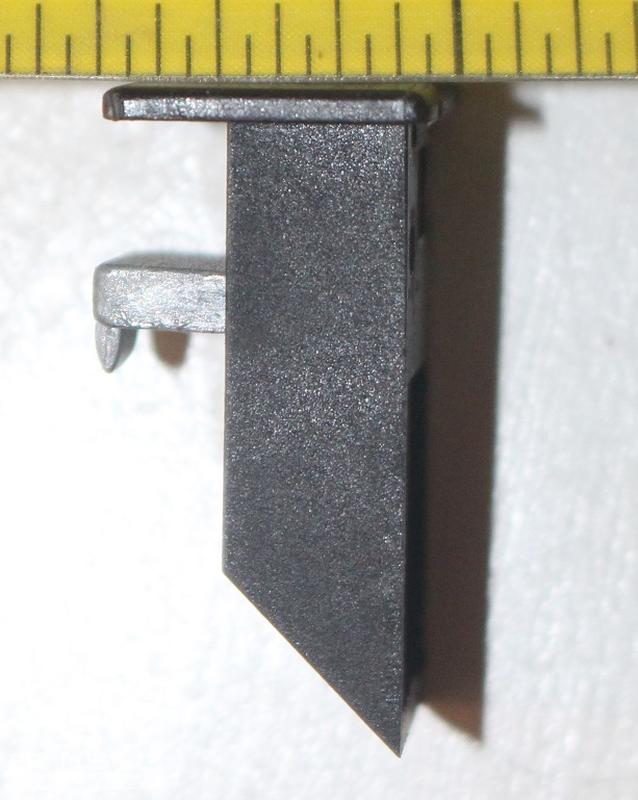

I have a Jordan window with a broken top sash guide. I have attached pictures of a non-broken guide I removed from the same widow. Could you please help me identify the correct replacement part?

4 user uploaded images

7 Replies

Tom from SWISCO

Dec 3, 2019 1:59 pm

I'm afraid that I don't recognize this top sash guide. Please give us a little more time to research this and we'll do our best to find a good replacement option. We'll have to dig into our records to see if we can find something close.

Paul from SWISCO

Dec 4, 2019 1:51 pm

Without knowing the exact measurements of your current top sash guide, we can't be sure on what to recommend. Start with taking a look at our 18-157 as a possible replacement. This guide will fit into a 5/8" sash channel and has an extended lip to catch the side load balance. See if this part will work.

Quick Learner from Morningstar Farm

Dec 4, 2019 4:09 pm

I believe the top of my guide is 1 1/8" wide. The dash channel is 7/8" wife. I will double check measurements tomorrow.

Paul from SWISCO

Dec 5, 2019 7:59 am

Sounds good. Thank you.

Quick Learner from Morningstar Farm

Feb 21, 2020 5:36 pm

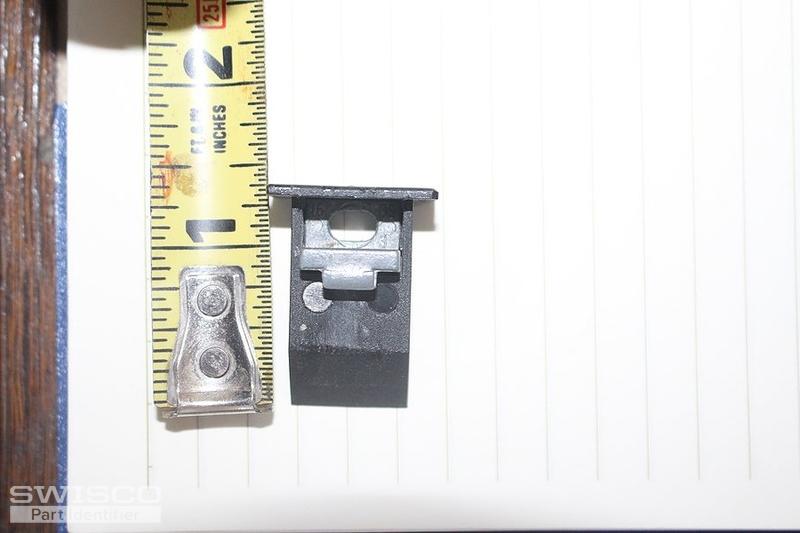

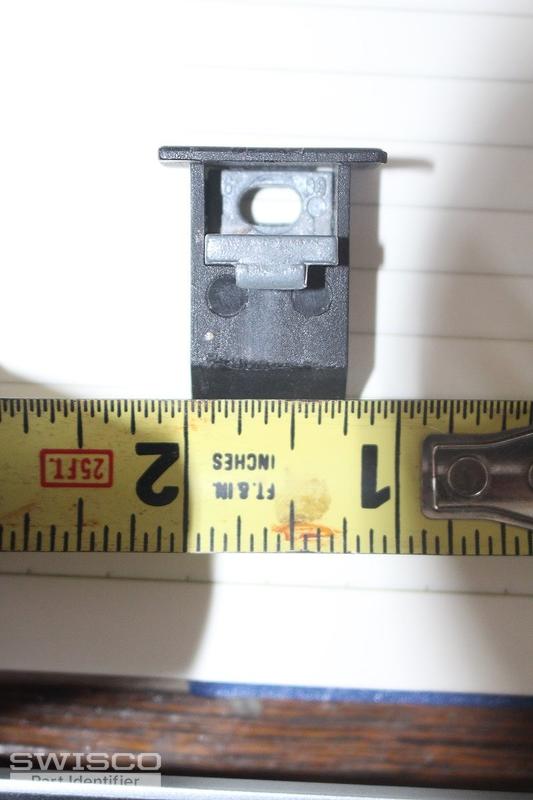

The top of the sash guide is 1" wide
The bottom portion of the sash guide is 3/4"wide
From the top of the sash guide to the top of the extended lip is 3/8"
The overall height of the sash guide is 1-3/8"

2 user uploaded images

Paul from SWISCO

Feb 24, 2020 8:59 am

Unable to find the exact top sash guide for your window, but we came up with our 18-052 that is 3/4" wide and it has a 7/16" depth that should come out enough to catch your window balance. Take a look and let me know what you think.
