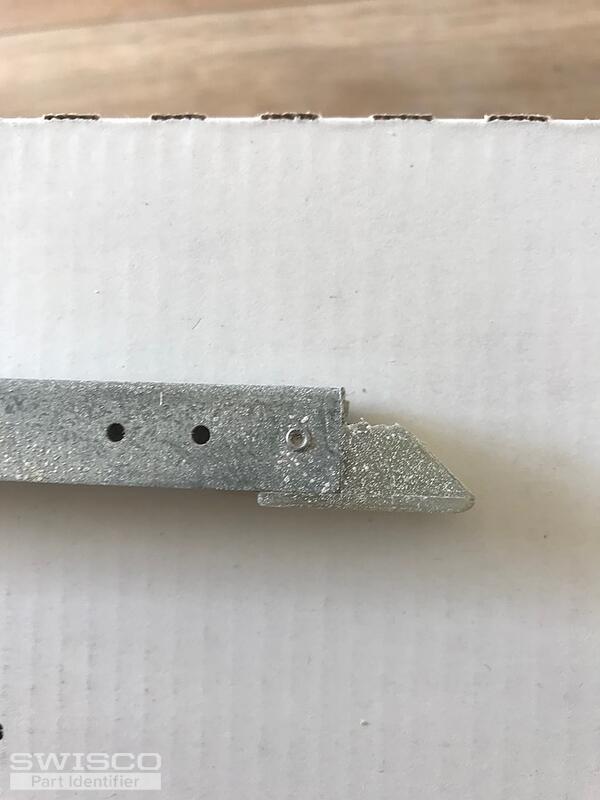

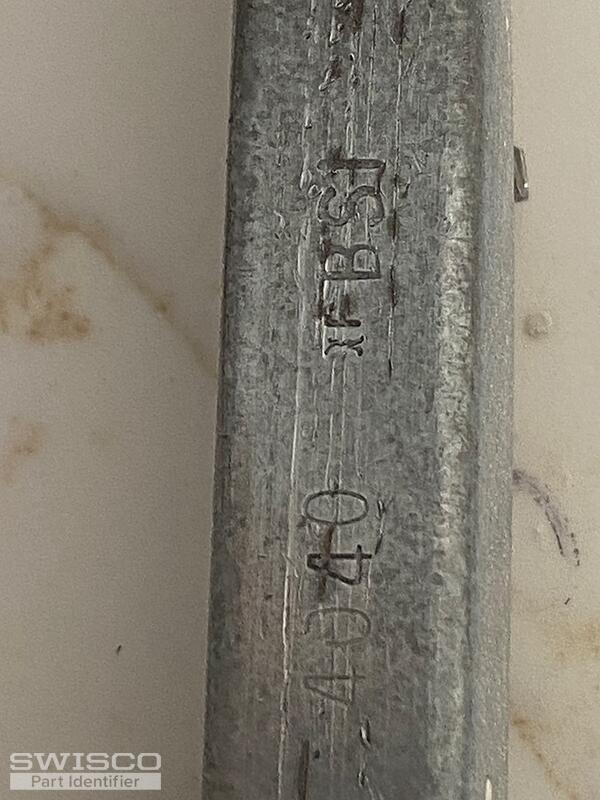

The length is 42", 9/16" wide and 5/8" deep. I send a pic of the number stamped looks like a 4040 BS1 ?
I need 2 of these as my window has one completely missing! If you can help that would be great
thanks Randy
Jordan window channel balance
Quick Learner from Louisiana
Sep 12, 2023 11:33 pm
5 user uploaded images
6 Replies
Casey from SWISCO
Sep 13, 2023 12:19 pm
Hello,
We can supply your balances but it will need to be a custom order due to the length, which should measure 41", not including the end fittings. It looks like you have either our S351, with a 15-002 bottom attachment, or S390, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 4040 spring strength option for your replacement balances. Thank you!
Comparison of the S351 and S390 balance shoes.
Quick Learner from Louisiana
Sep 13, 2023 5:09 pm
I had it measured and it shows 1 1/16" so I believe it is the 15-001 or 1 1/8" with a lot of wear.
Casey from SWISCO
Sep 14, 2023 3:59 pm
Great, we just sent over an order link and price quote for you to review. Take a look and let us know if you need anything else. Thank you!
Quick Learner from Louisiana
Sep 25, 2023 8:22 am
Thanks for the help on these items, they worked so well I would like to reorder another set just like this!
Casey from SWISCO
Sep 25, 2023 11:59 am
That's great to hear! We just sent over an updated order link for two more balances.
