Jordan window channels, 29" long

A home owner from New Mexico says:
May 29, 2018

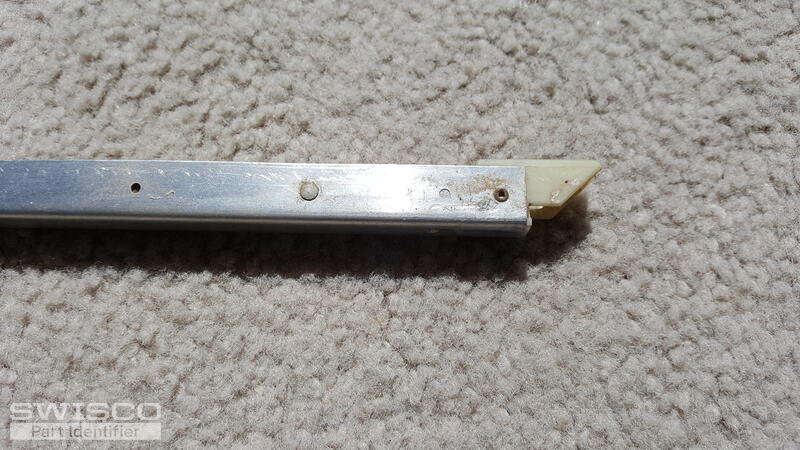

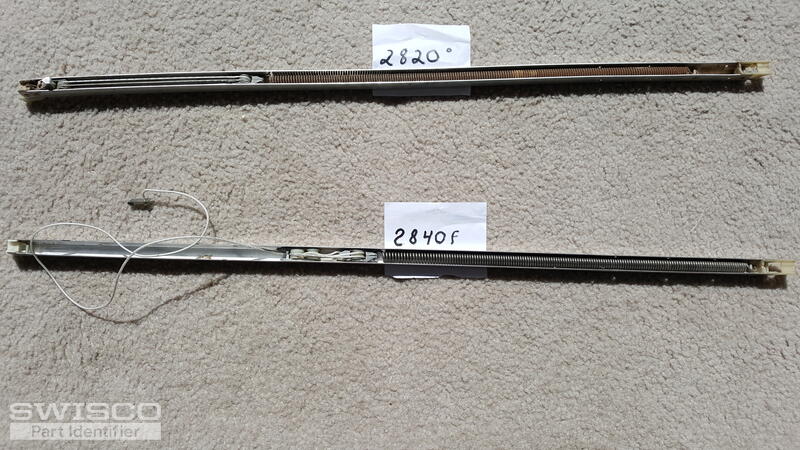

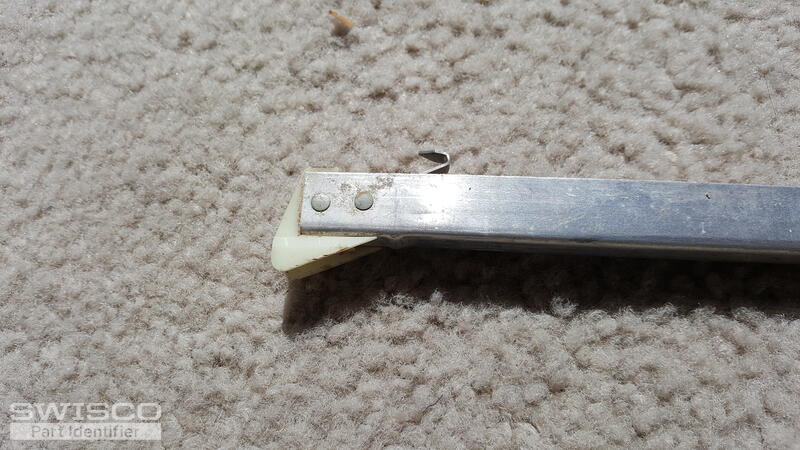

Metal channel is 29" long. Springs ate identical but ate set in different holes. The plastic ends are identical on the 2840 and on the 2820 channels. This channels are from a Jordan window installed in 1986.

Thumbnail of the uploaded file named 15276300297391951909254.jpg
Thumbnail of the uploaded file named 1527630165194561504653.jpg
Thumbnail of the uploaded file named 15276302653072123692873.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
June 1, 2018

Hi- thanks for reaching out!

Yes, the ends will be the same on the Jordan S390-29 side load balances. The difference is the spring weights. Some of your windows are using (2840) and others are using the lighter spring (2820) because the weight of the window sashes differ.

Get back to us if you have any more questions.
29" Series 390 Channel Balance
29" Series 390 Channel Balance
S390-29
$11.10
