Jordan window sash springs

Question

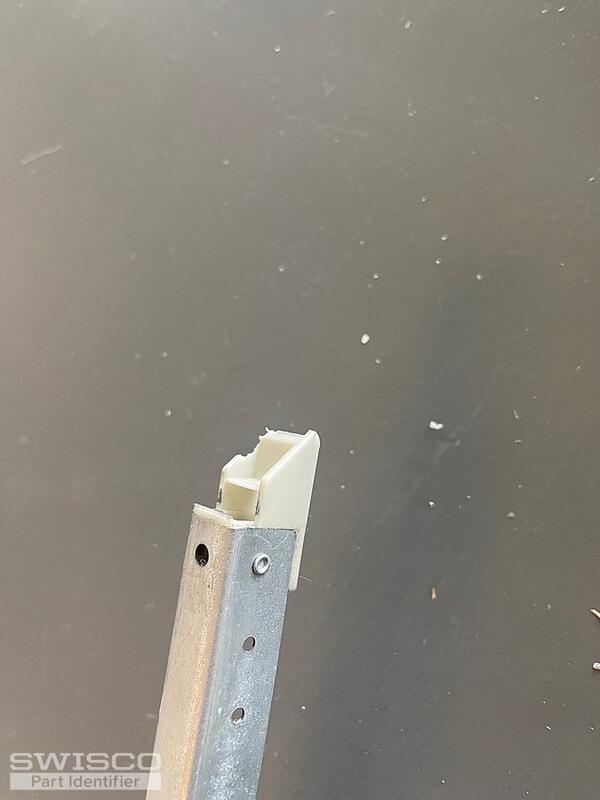

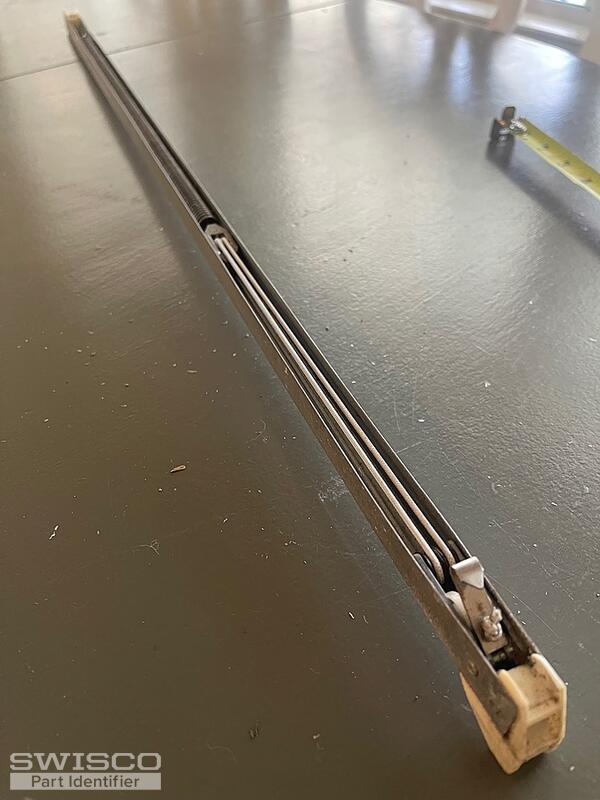

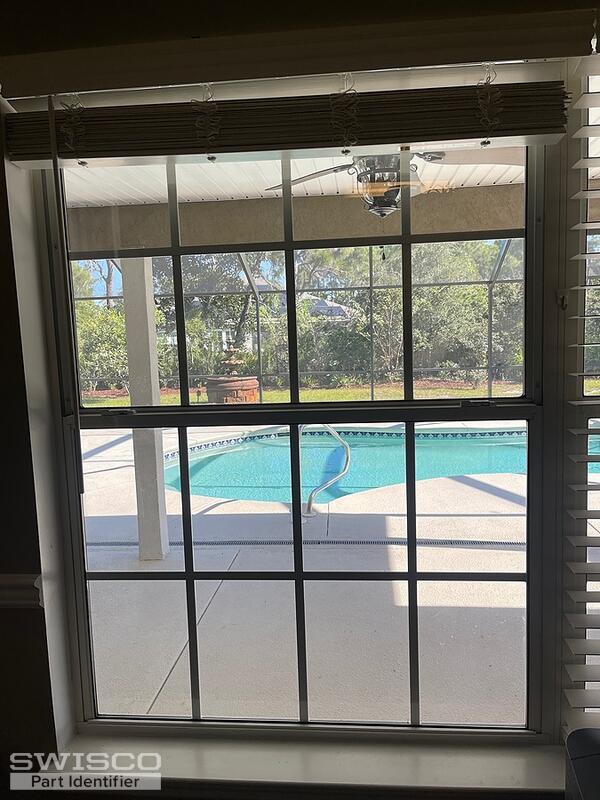

The Jordan window overall height is 58.5" tall.  It weighs 21.6 lbs. the markings on it appears to be 28 B S1 w.  The metal length appears to be 28.75 inches.  Metal with plastic 29.75".  The width is apx .5 inches. Thank you for the help identifying them.

Casey · Accepted Answer

Hello,

It looks like you have either our S351-29, with a 15-002 bottom attachment, or S390-29, with a 15-001 bottom attachment. With that being said, I would recommend double-checking the length of you metal channel, which should be 29" without the endi fittings. If so, take a look at the image below to determine which balance you'll need. You'll also need a 2830 spring strength option for your replacements since your balance stamp appears to be 28 3. Thank you!

Comparison of the S351 and S390 balance shoes.
