Jordan windows #2830

A handy person from Pensacola , Fl. says:
March 25, 2019
Window sash / channel balance.
Thumbnail of the uploaded file named 39A6B7E1-224D-434A-B46E-78F0B12BB374.jpeg
Thumbnail of the uploaded file named 43DA6504-5EB5-4BB5-8707-6F566F0BE69D.jpeg
Profile picture of Tom
Tom from SWISCO responded:
March 27, 2019

Yep, that looks like a channel balance. We can probably supply a match, but before I can narrow down the list of replacements, can you show me a clear picture of the top and bottom nylon fittings? That will be a huge help. Thanks!

A quick learner says:
March 28, 2019
2830 is the number on the side.

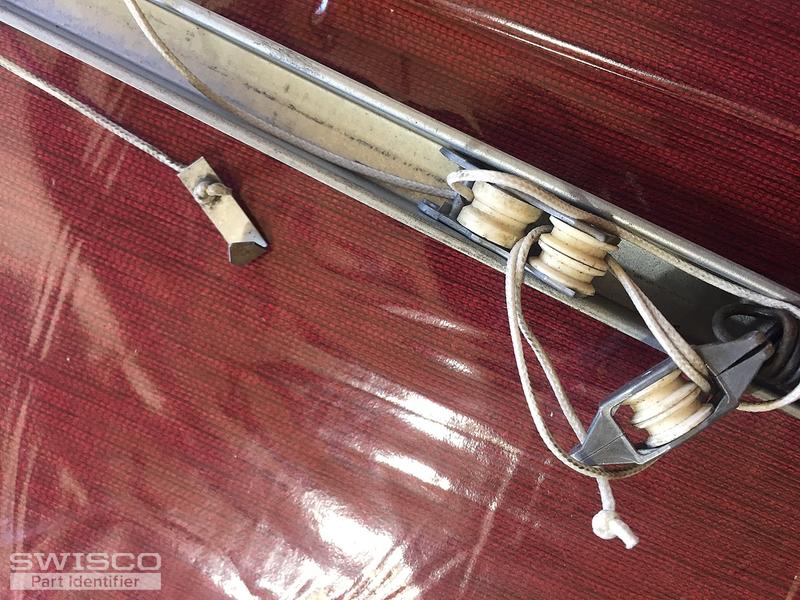

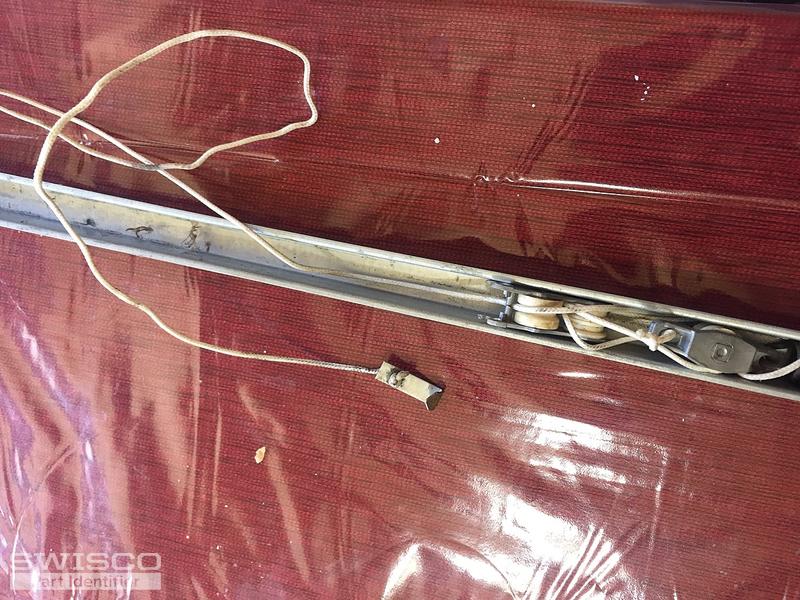

Thumbnail of the uploaded file named DED6980A-F455-4735-ACEA-C2A224FD0A4D.jpeg
Thumbnail of the uploaded file named 3491D3D1-CBE8-4C29-9C75-DAACE88665BC.jpeg
Thumbnail of the uploaded file named B703C302-DAFF-4674-8A13-A33DD5DD5939.jpeg
Thumbnail of the uploaded file named F4B5D2A9-D502-44A2-B54B-B4E4BAB37EB8.jpeg
Profile picture of Tom
Tom from SWISCO responded:
March 29, 2019

I'm sorry, these photos don't really show me much. I need one clear picture of the top nylon fitting and one clear picture of the bottom nylon fitting. With those two photos I'm confident I can make a good recommendation.

A quick learner says:
March 29, 2019
Adding more pics

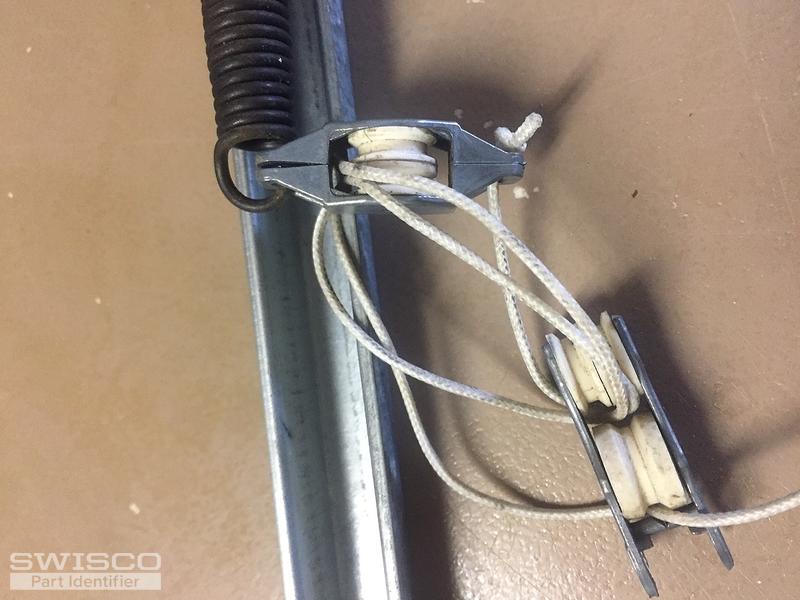

Thumbnail of the uploaded file named image.jpg
Profile picture of Paul
Paul from SWISCO responded:
April 1, 2019

Thanks for the additional photos. We have known most Jordan windows like yours use the S390-29 channel balances. The spring option should be 2830 for a sash weighing between 16-23 lbs. Take a look and let us know your thoughts.

%alt%
29" Series 390 Channel Balance
S390-29
$10.67
%alt%
Top Sash Guide, Jordan
18-190
$2.10
