Joulousy window cranks

A quick learner from Manorville, NY 11949 says:
April 10, 2023

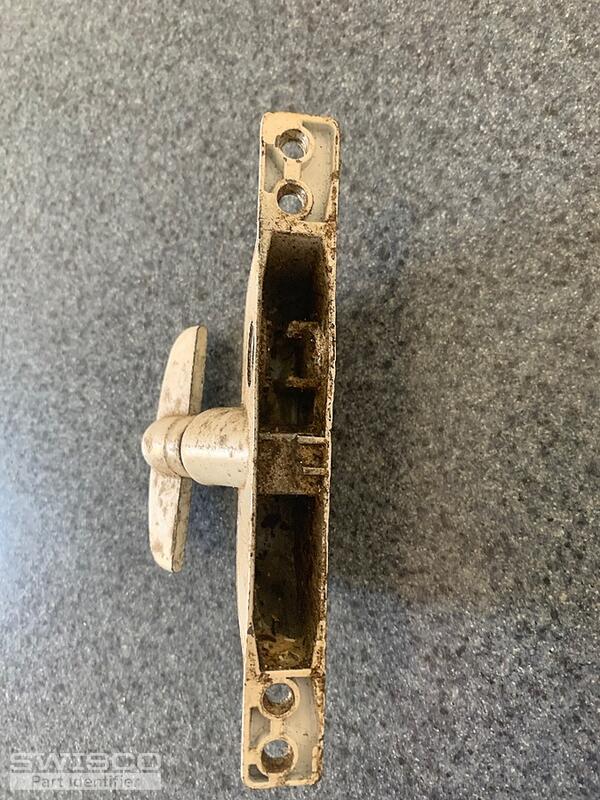

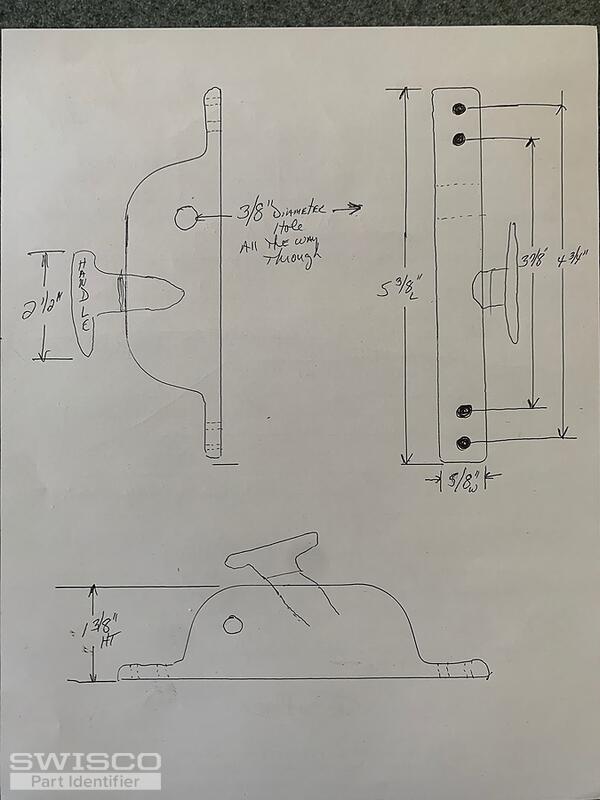

They attach to window frame to an aluminum flat circular sprocket and have a 3/8" plug insert that mates with window handle crank like a worm gear set up then secured as a unit with screws to window frame see pics and drawings with measurements thank you please advise have a great day
Thumbnail of the uploaded file named 256D9FBE-9D50-40C6-BE16-E170756232F8.jpeg
Thumbnail of the uploaded file named 41CBE076-0410-4E45-8FB4-4332948B7F5A.jpeg
Thumbnail of the uploaded file named 14017DAF-E0C3-4F80-B919-D5346B296198.jpeg
Thumbnail of the uploaded file named B39A0D5B-8137-4588-902A-C496AB293238.jpeg
Thumbnail of the uploaded file named A2581A97-0D5A-429B-ABFA-F6D81205117F.jpeg
Profile picture of Casey
Casey from SWISCO responded:
April 11, 2023

Hello,

We carry three operators for Jalousie windows, which we've related on this page for you to review. All three options have the same installation hole spacing as your assembly. Take a look and see which option you'd prefer. We also have three videos related on this page that show how each part is installed, though they all work in a similar way. Thank you!
Jalousie Window Operator Kit
Jalousie Window Operator Kit
39-165K
$12.97
Jalousie Window Crank Operator
Jalousie Window Crank Operator
39-005
$14.70
Jalousie Operator Replacement Kit
Jalousie Operator Replacement Kit
39-346
$12.44
39-165K Jalousie operator replacement kit
39-165K Jalousie operator replacement kit
VIDEO
WATCH >
39-005 How to replace a Jalousie operator
39-005 How to replace a Jalousie operator
VIDEO
WATCH >
39-346 Jalousie operator replacement kit
39-346 Jalousie operator replacement kit
VIDEO
WATCH >
