K & K Casement window gearbox

Handy Person from Payson, AZ

Aug 26, 2023 9:09 pm

Casement window with K&K on the cover. Back right if the gearbox appears to be stamped with 40572 or 40672.
Right side hinge, left side lock.
Worm gear and engaging helical gear are skipping.

I'd like to purchase a new gearbox and a new handle please.

3 user uploaded images

4 Replies

Bob from SWISCO

Aug 26, 2023 10:22 pm

Thanks for posting. I'm confident we can replace this window operator, but I need to see the entire mechanism, including the link arm(s) that connect to the gear box and push and pull the window sash. From there we should be able to narrow this down for you.

Handy Person from Payson, AZ

Aug 27, 2023 10:29 am

Wow! Thanks for responding late on a weekend night!

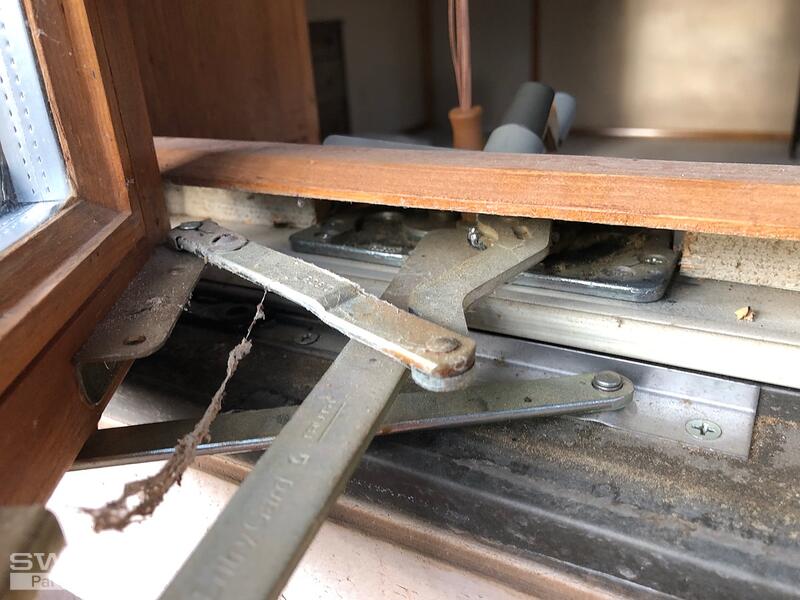

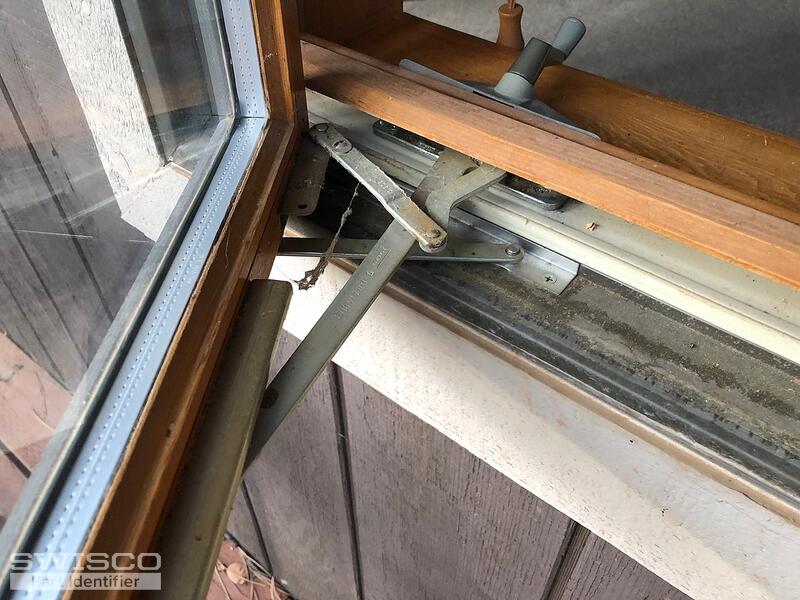

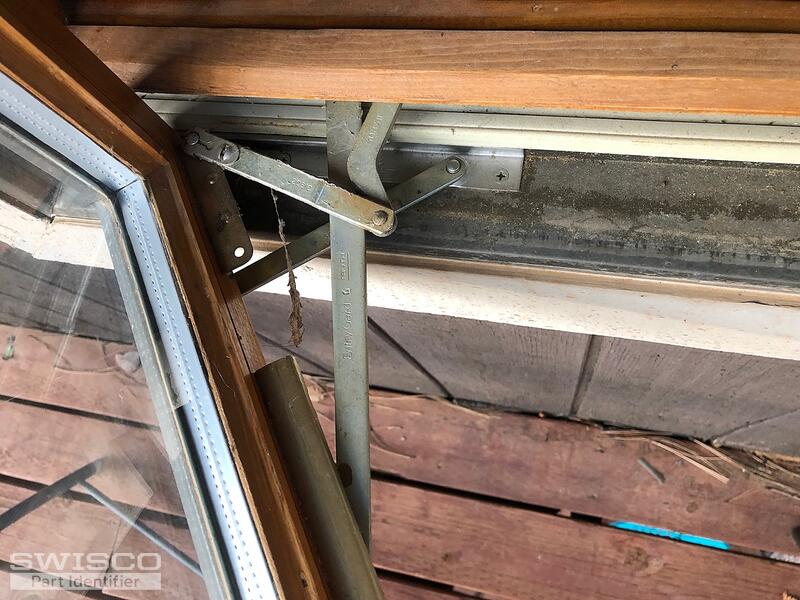

Additional photos attached. I hope these are sufficient.

3 user uploaded images

Bob from SWISCO

Aug 27, 2023 9:51 pm

Thanks for getting back to me. This looks like it might be our 39-031 (its opposite-handed version is the 39-032). Review the diagram below to ensure the length of the arms matches your old hardware; let me know if anything differs in any way. For a new handle and cover, see the 39-114L and 39-107.

Dimensions for 39-031
