"KK" Sliding Patio glass door handle lock from one side

Home Owner from Carmel Valley CA

Sep 2, 2020 1:32 am

I have three of these old handles on three patio doors and I want to replace them with new ones hopefully with a silver/metal color (as opposed to gold). But I don't know which parts I should be ordering.
Thank you.

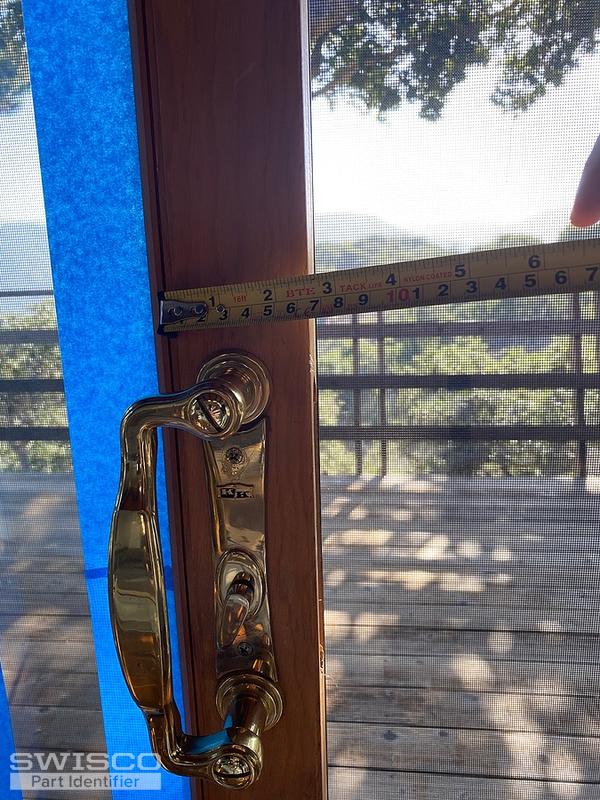

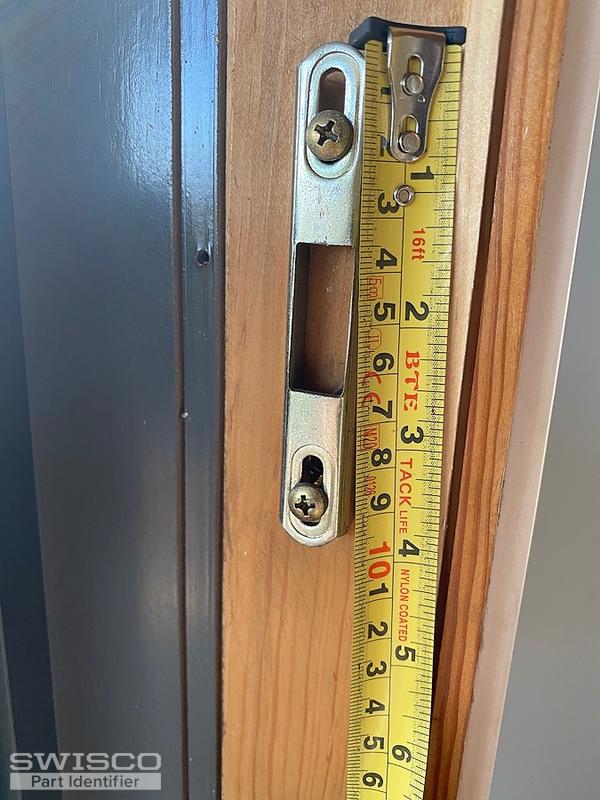

2 user uploaded images

6 Replies

Tom from SWISCO

Sep 4, 2020 3:10 pm

I don't know what you need either, unfortunately. I'm not familiar with this handle. Before we recommend anything, can you tell me the distance between the two installation holes, center-to-center? Can you also show me a clear picture of the mortise lock out of the door?

Home Owner from Carmel Valley CA

Sep 5, 2020 3:25 pm

Yes. Images attached.

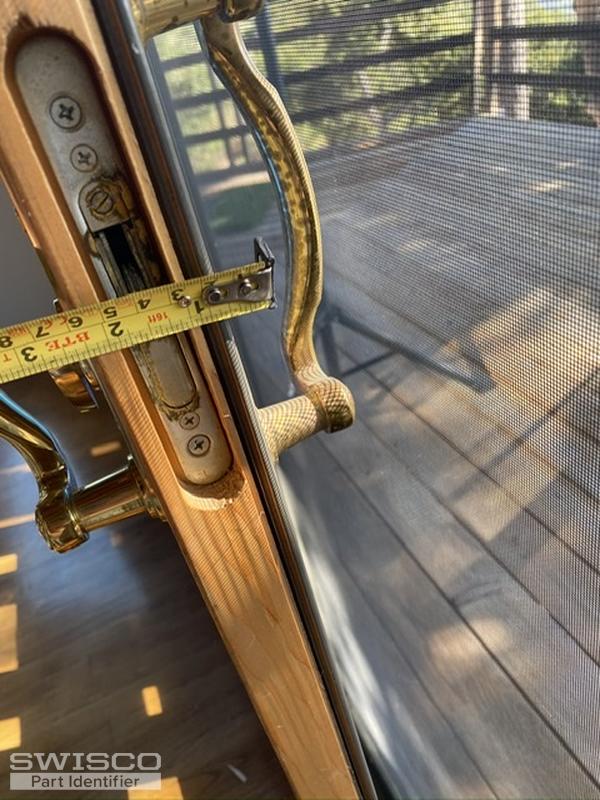

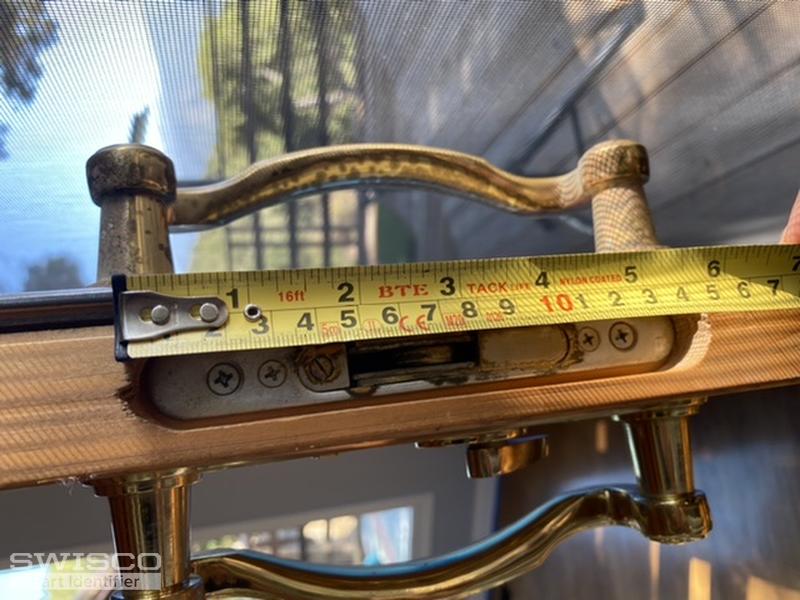

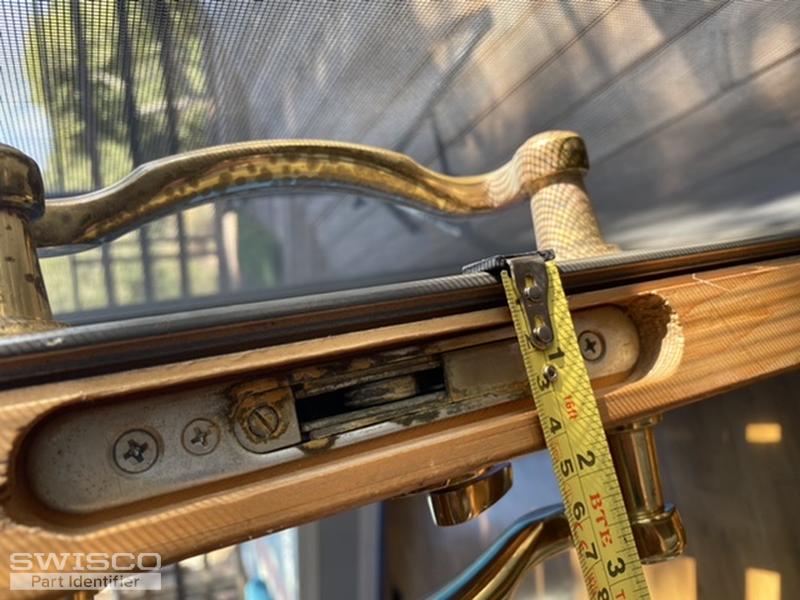

4 user uploaded images

Tom from SWISCO

Sep 8, 2020 10:11 am

Thank you! This is a big help, though I can't tell what the hole center spacing is. Your tape measure is actually obscuring the holes so I can't really see what's being measured.

That said, I think a potentially safe place to start is our 82-030. This will be compatible with your old mortise lock, so that's good. It also has a hole spacing of 3-15/16", center-to-center. As long as yours is the same then this should be compatible with your door.

Home Owner from Carmel Valley CA

Sep 17, 2020 7:47 pm

Thank you. Yes the spacing hole spacing is 3-15/16. If I need to change the mortise as well, which mortise or kit do you recommend with the 82-030? Thanks.

Tom from SWISCO

Sep 18, 2020 8:43 am

Great. For the mortise, you definitely have the 82-226. You may want to look it over just to confirm but I feel pretty sure that's it.
