Quick Learner from Wisconsin

Feb 21, 2023 7:39 am

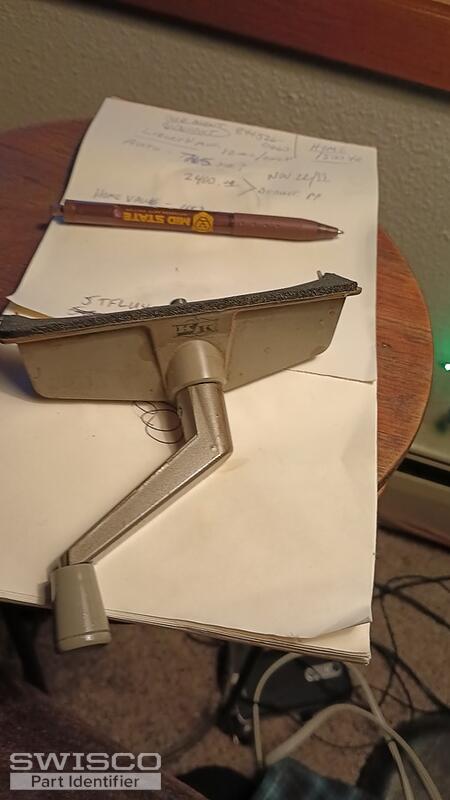

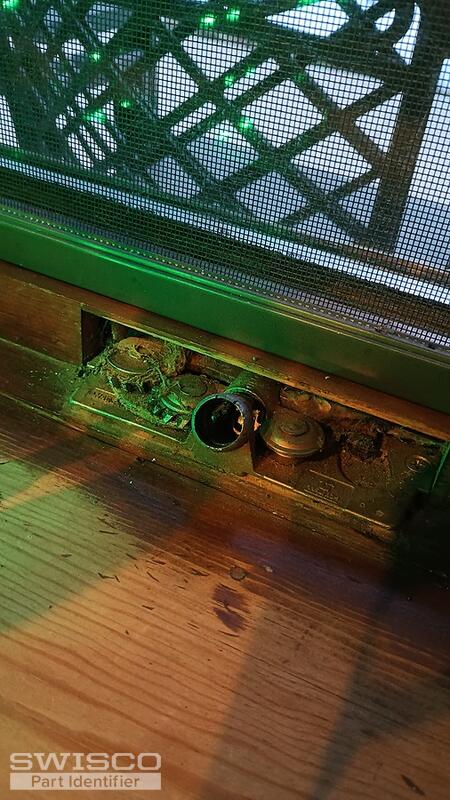

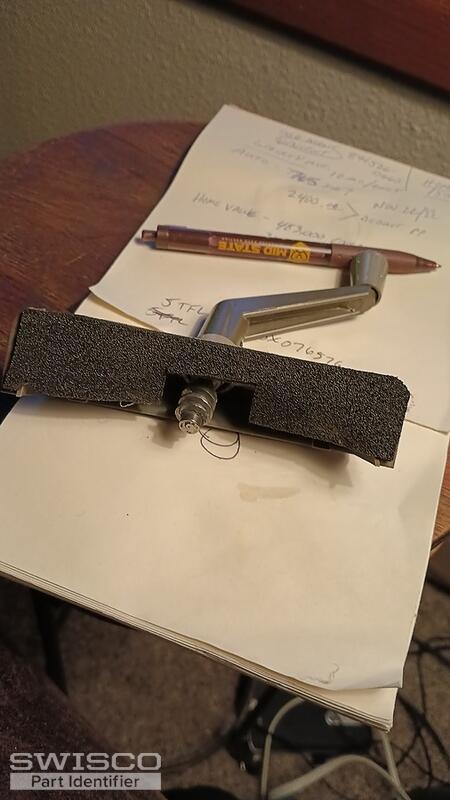

Have some kk window cranks that are stripped from windows that are in good shape. Most likely from late 80s. Would like to order one of the right one just to be sure. Before I order 6 more. Let me know if you have something that will work. Thanks!! Ken in Wi.

3 user uploaded images

4 Replies

Casey from SWISCO

Feb 22, 2023 9:28 am

Hiu Ken,

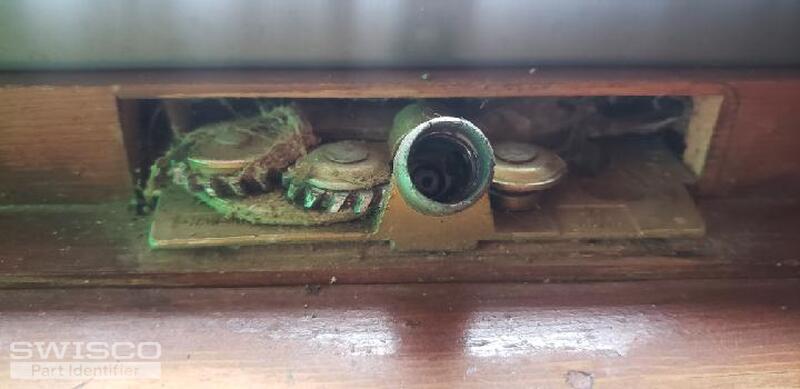

We'd be happy to help but your entire operator will need to be replaced since the worm gear that the handle attaches to is broken. We'll need to see your operator with the window open so that the arms that move the sash are fully visible to compare to our inventory. Thank you!

Quick Learner from Wisconsin

Feb 22, 2023 2:55 pm

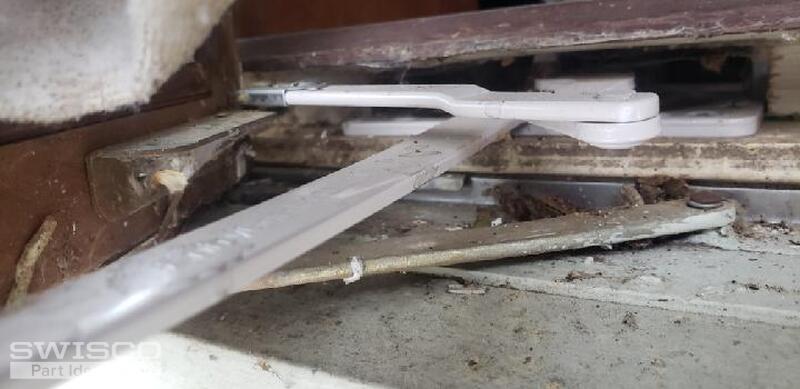

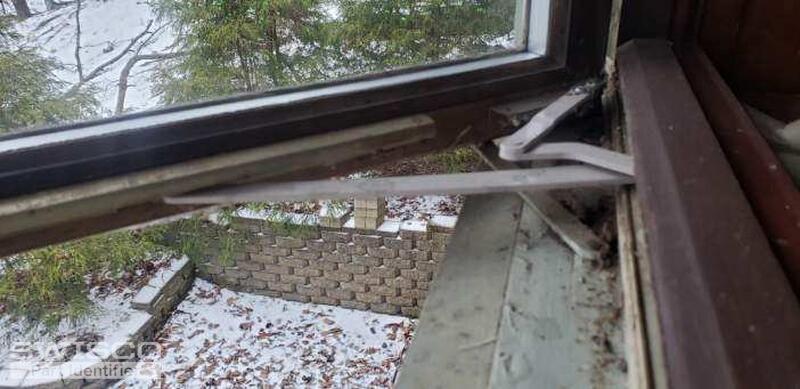

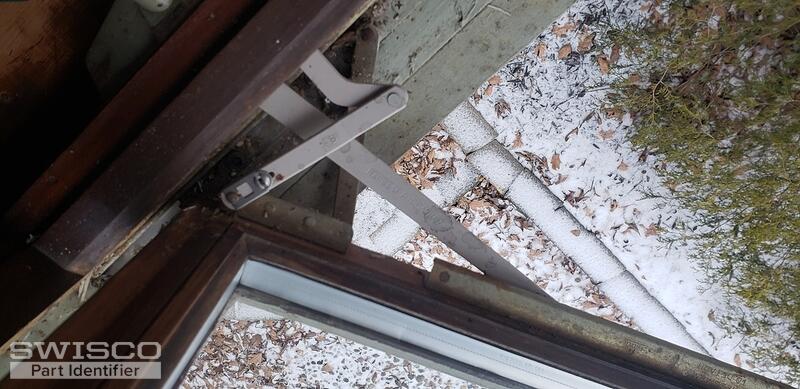

The ones you requested

4 user uploaded images

Casey from SWISCO

Feb 22, 2023 3:08 pm

Great, take a look and compare the 39-031 EntryGard operator to yours, paying close attention to the length of the shorter link arm shown below. See the 39-032 for the opposite-handed version. We've also related compatible handle and cover options on this page. Take a look and let us know if you have any other questions.

Dimensions for 39-031
