Kehoe spiral balances and shoes

A quick learner from Surfside Beach, SC says:
May 24, 2020
Attached are 5 pics, 2 shoe 3 balance. Tubes are 5/8 blue tip, plastic tube destroyed, my guess 29 inch long. 3 windows all the same. Need a pair for each window.
Thumbnail of the uploaded file named 20200524_155817.jpg
Thumbnail of the uploaded file named 20200524_155759.jpg
Thumbnail of the uploaded file named 20200524_155635.jpg

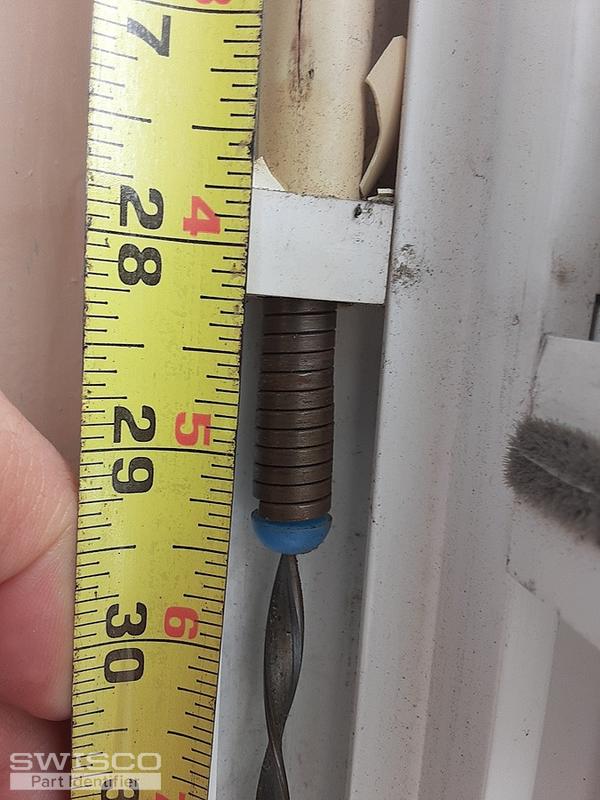

Thumbnail of the uploaded file named 20200524_151003.jpg

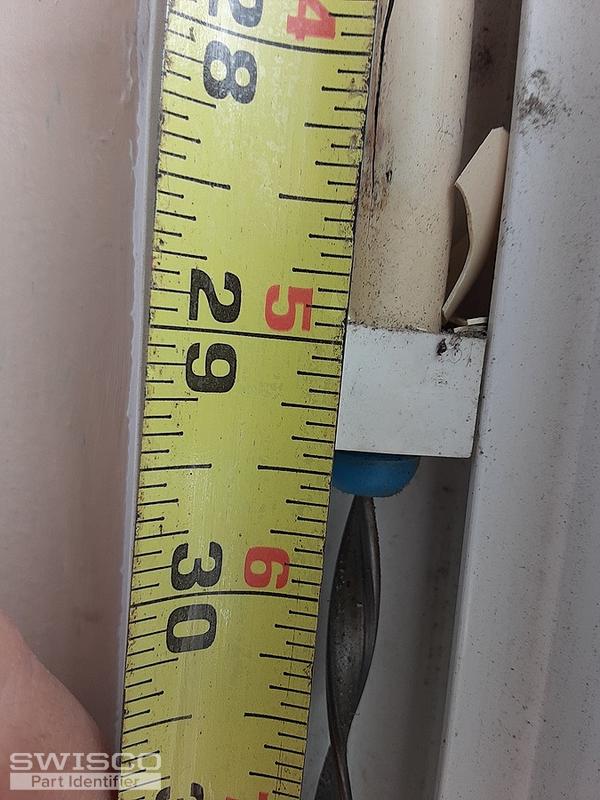

Thumbnail of the uploaded file named 20200524_150949.jpg
A quick learner from Surfside Beach, SC says:
May 25, 2020
Additional pictures with balance still in place.

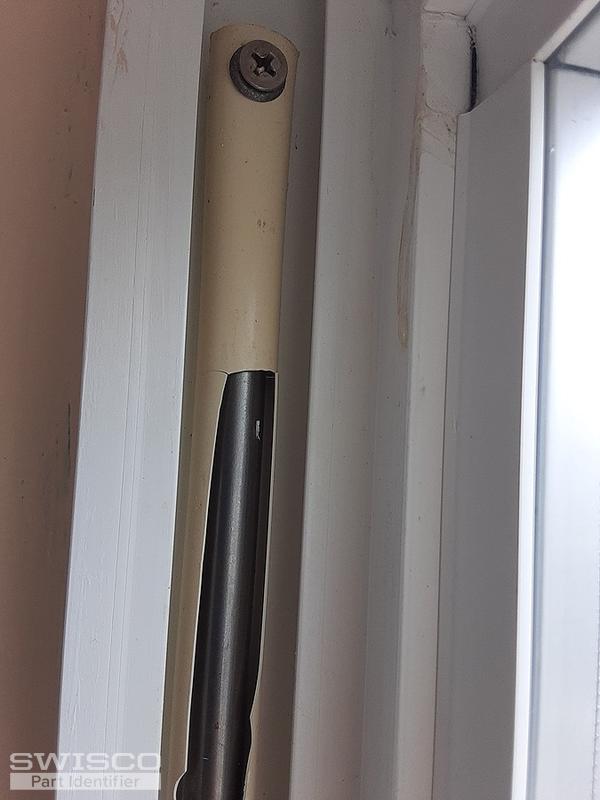

Thumbnail of the uploaded file named 20200524_150220.jpg

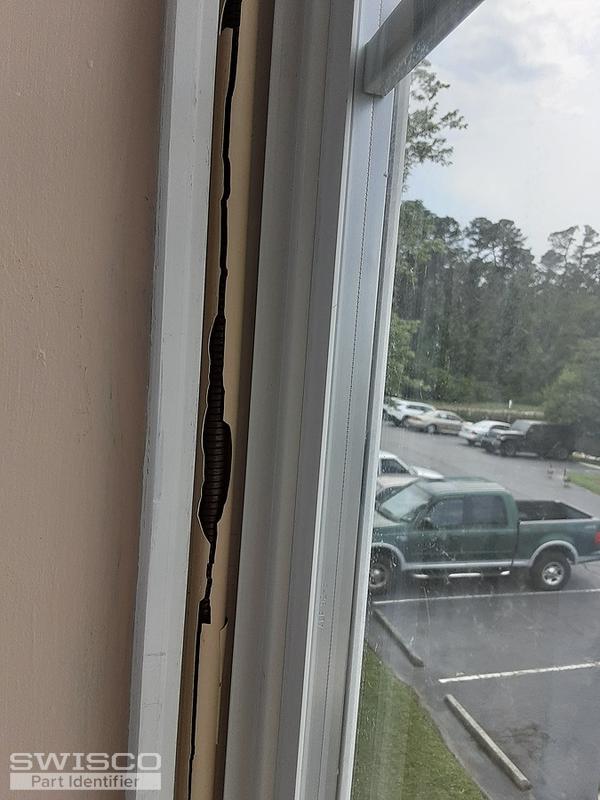

Thumbnail of the uploaded file named 20200524_150247.jpg

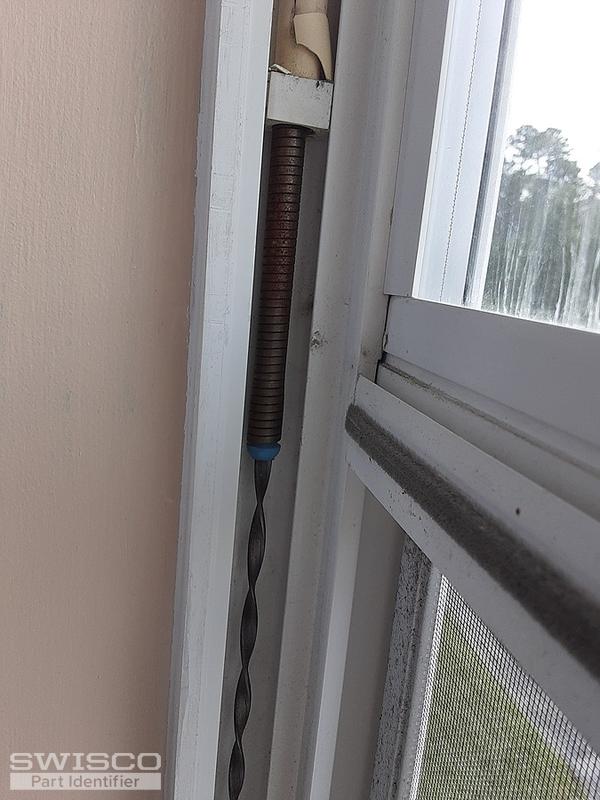

Thumbnail of the uploaded file named 20200524_150554.jpg

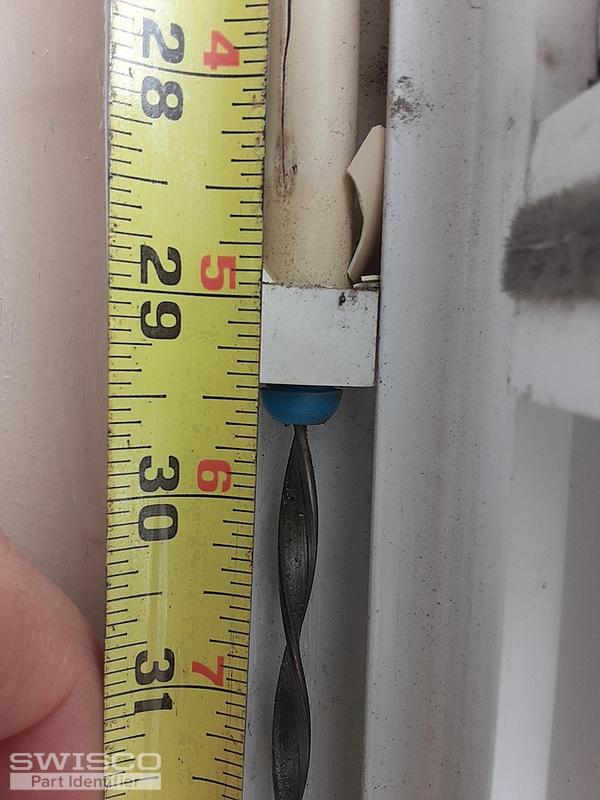

Thumbnail of the uploaded file named 20200524_150933.jpg

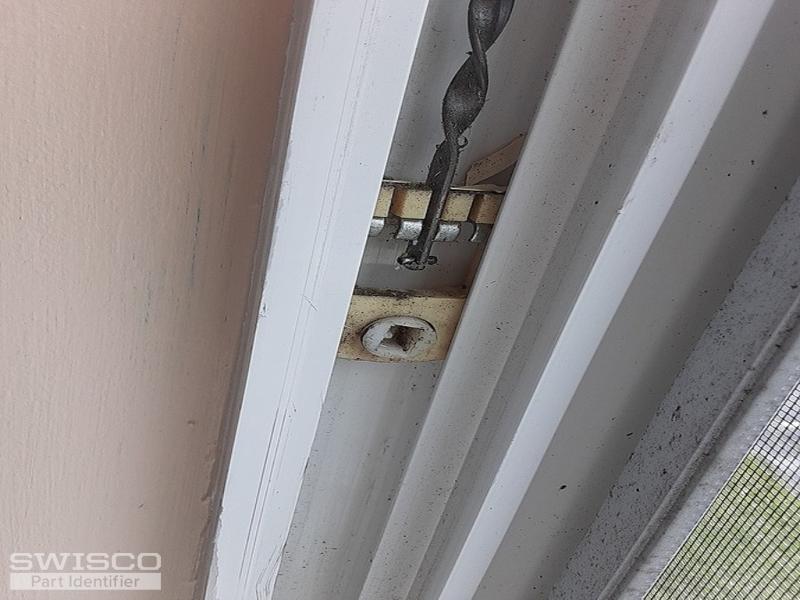

Thumbnail of the uploaded file named 20200524_150602.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 28, 2020

Hello! Looks like you need a new spiral balance and pivot shoe. Based on your given dimensions, I recommend the S600-29 with a blue tip color option.

This style of shoe is no longer made, but if it's 9/16" thick then you can use our 15-121 as a substitute.
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-121
$2.37
29" Series 600 Spiral Tilt Window Balance
29" Series 600 Spiral Tilt Window Balance
S600-29
$9.35
