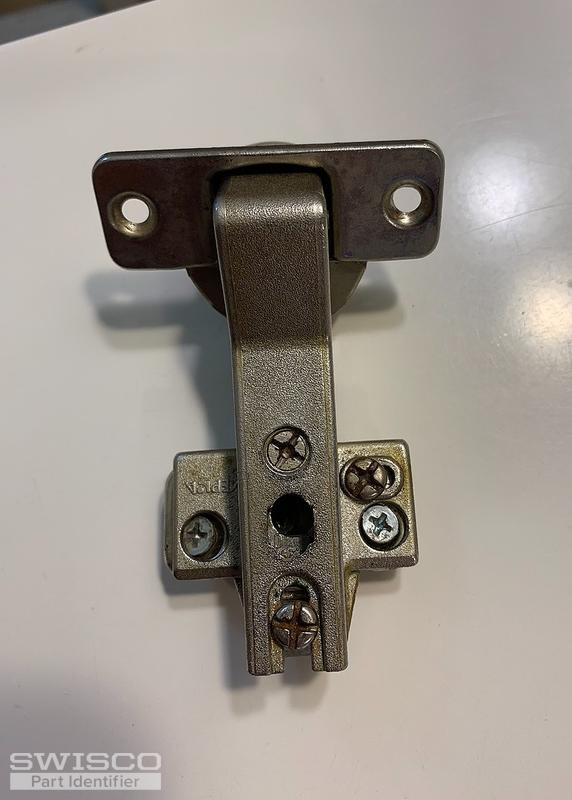

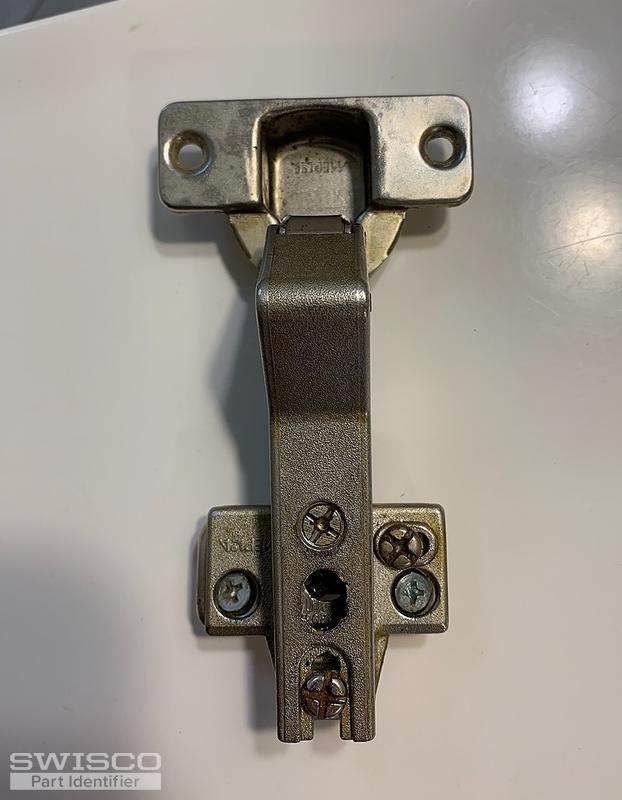

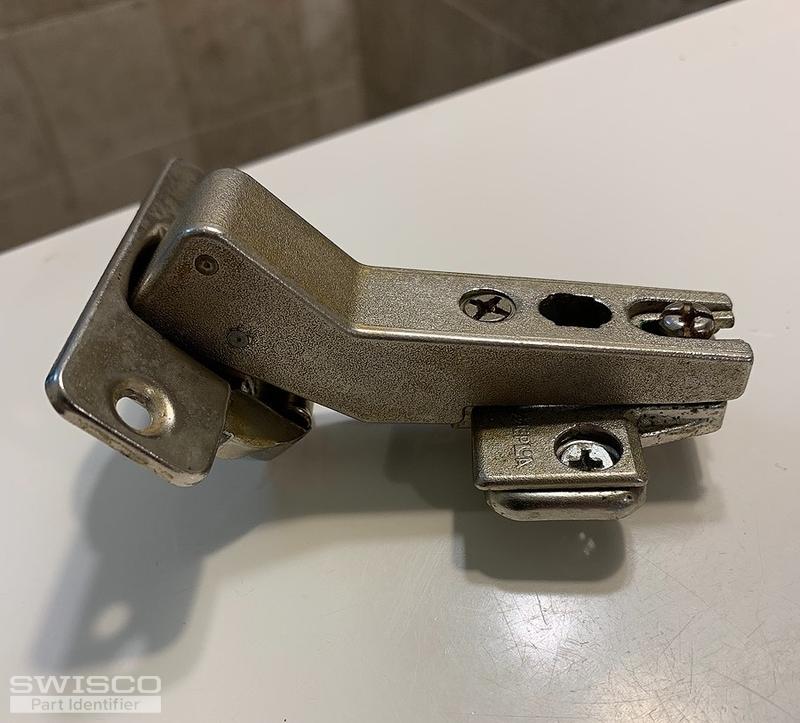

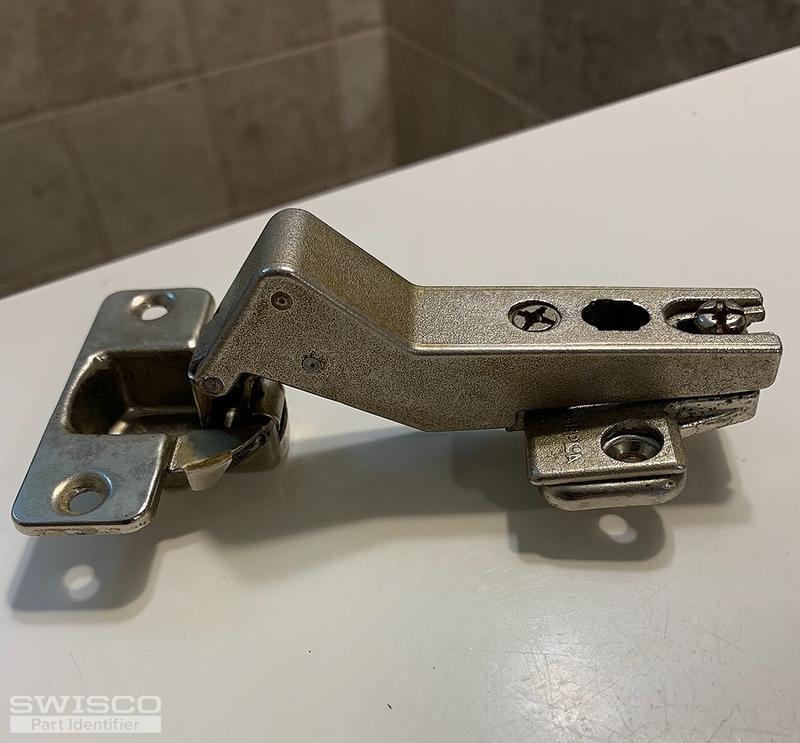

The original hinge (photos provided) are Mepla: hinge part no is 502.205.76.03, plate part no is 592.393.85.00.
In the interim I am using hinges that do not allow door to open fully.

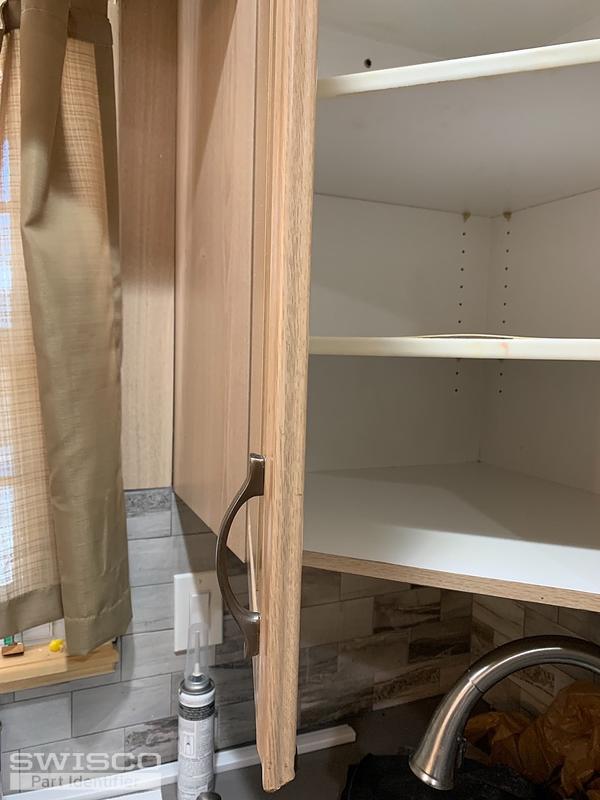

When closed, the door sits at a 135 degree angle. When opened, the door stops at 200 degrees (see photo); being blocked by the mounting wall. This leaves only 65 degree opening into cabinet.
The original hinge's mechanism allowed the door to clear the mounting wall and achieve near 260 degrees.
Kichen Cabinet Hardware
Home Owner from Long Island
Mar 5, 2019 3:13 pm
5 user uploaded images
2 Replies
Bob from SWISCO
Mar 6, 2019 10:22 am
Thanks for posting. Your original hinge looks a bit like our 32-346; however this only has movement of 60 degrees, and so it's not going to give you the range you're looking for. Instead see our 32-344. This hinge has a range of 170 degrees. Look over the dimensions listed on the product page and see if you think you could adapt this to your cabinet.
