Kilian Mirrored Door Rollers

A quick learner from 92614 says:
October 12, 2022

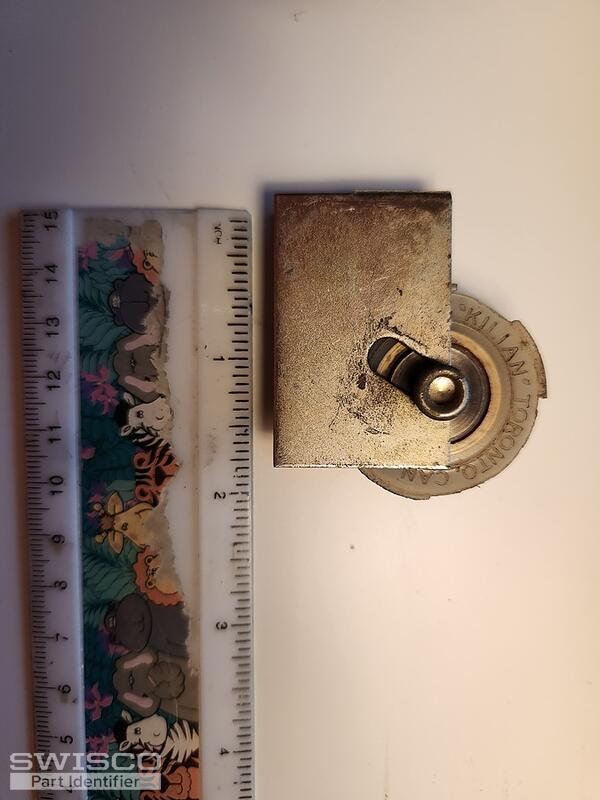

Looking for Kilian Syracuse / Toronto mirrored door rollers.
Unfortunately, there are no model numbers or other identifiers. On the wheel, it does say "Kilian Toronto, Can. 2 Syracuse N.Y."
Note that my camera seems to distort the size. The ruler should show 1.75 inches or 4.5 cm.
Paul
Thumbnail of the uploaded file named 20221012_081952.jpg
Profile picture of Tom
Tom from SWISCO responded:
October 18, 2022

Thanks for reaching out to us. I'm afraid I don't recognize this roller. Could there be more to it, or is this all there is? Most rollers in this style have two housings: the interior, which holds the wheel, and exterior, which mounts in the door. What you show here seems to just be the interior. Can you verify? If there is more to it, can you show me?
A quick learner from 92614 says:
October 19, 2022

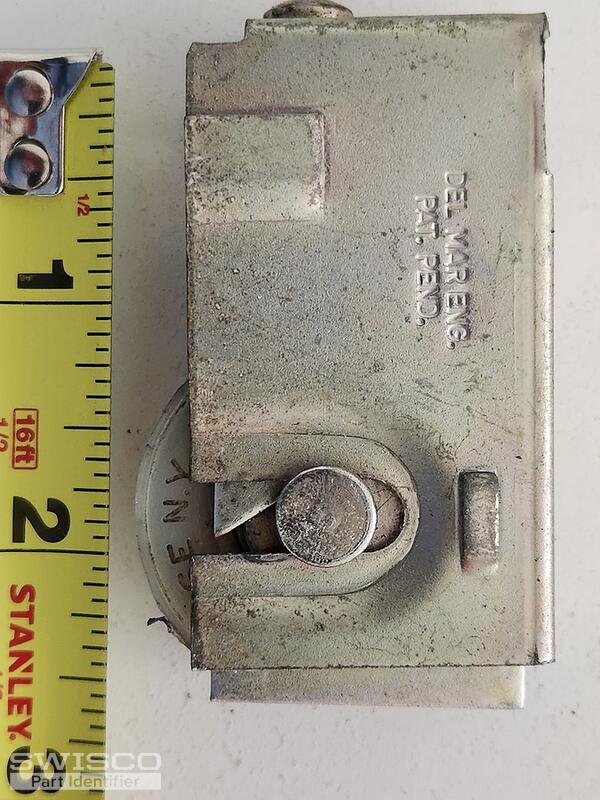

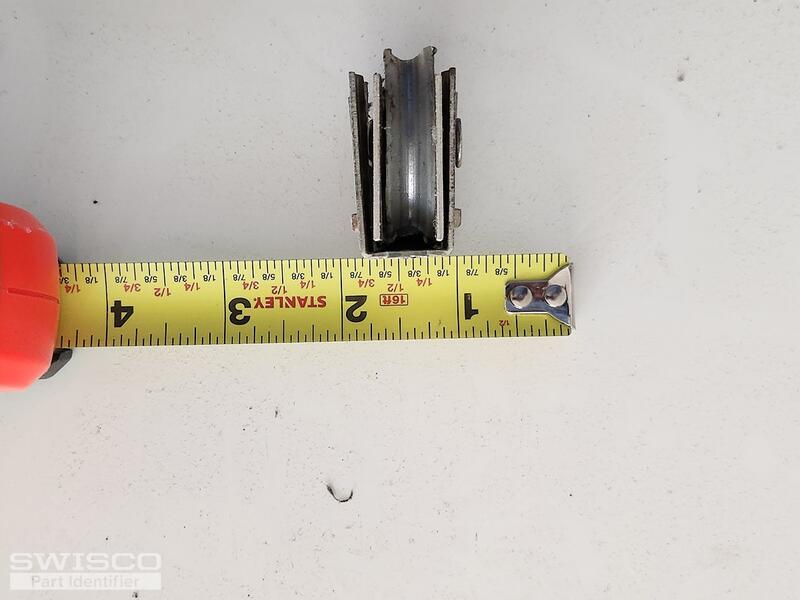

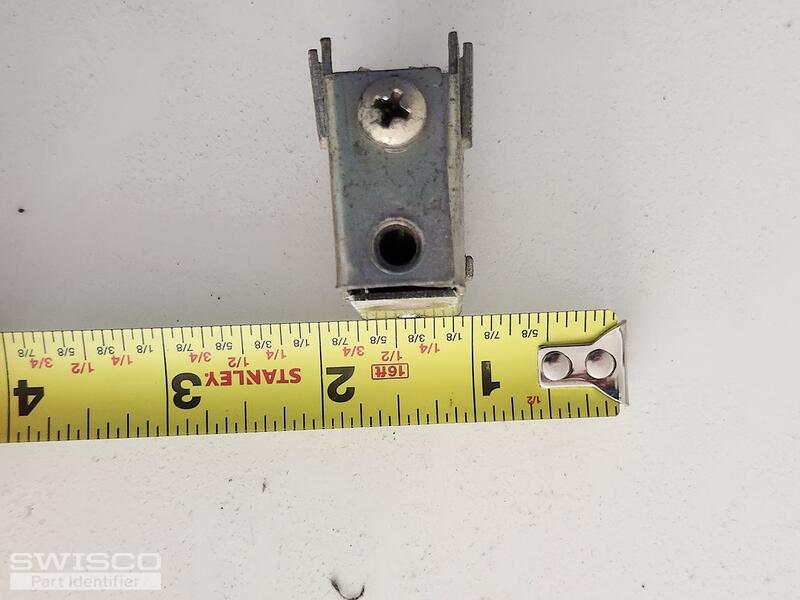

You're right! I removed the bottom side of the mirrored door and was able to remove the entire roller. Attached should be images of the entire roller. The maker appears to be Del Mar Eng.
Paul
Thumbnail of the uploaded file named 20221018_170347.jpg
Thumbnail of the uploaded file named 20221018_170309.jpg
Thumbnail of the uploaded file named 20221018_170155.jpg
Profile picture of Tom
Tom from SWISCO responded:
October 19, 2022

Thanks! I thought that might be the case. This looks like a dead ringer for our 23-288 closet door roller, but please review our dimensions and see how well the rest of them compare.

Dimensions for 23-288
Dimensions for 23-288
1-11/16" dia Nylon Concave BB Wheel
1-11/16" dia Nylon Concave BB Wheel
81-237
$5.27
Roller Axle Repair Kit
Roller Axle Repair Kit
81-310
$4.92
Sliding Door Roller Assembly, 1-1/4" Steel
Sliding Door Roller Assembly, 1-1/4" Steel
23-288
$10.42
