Kilian roller & housing

A home owner from Florida says:
January 3, 2022
I looking for replacement rollers and possibly the housing as well for the attached images. The house was built in the 57 and I think the sliding glass door / sunroom was added early to mid 60's. The frame is entirely aluminum . There are 2 rollers on each door panel . Each door is 48" x 81" approx.
Thumbnail of the uploaded file named IMG_3335.jpg
Thumbnail of the uploaded file named IMG_3336.jpg
Thumbnail of the uploaded file named IMG_3337.jpg

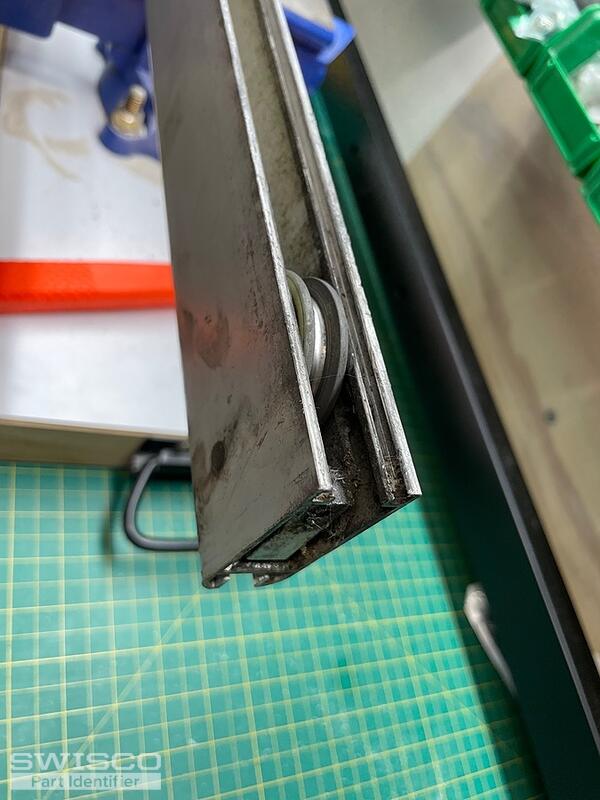

Thumbnail of the uploaded file named IMG_3338.jpg

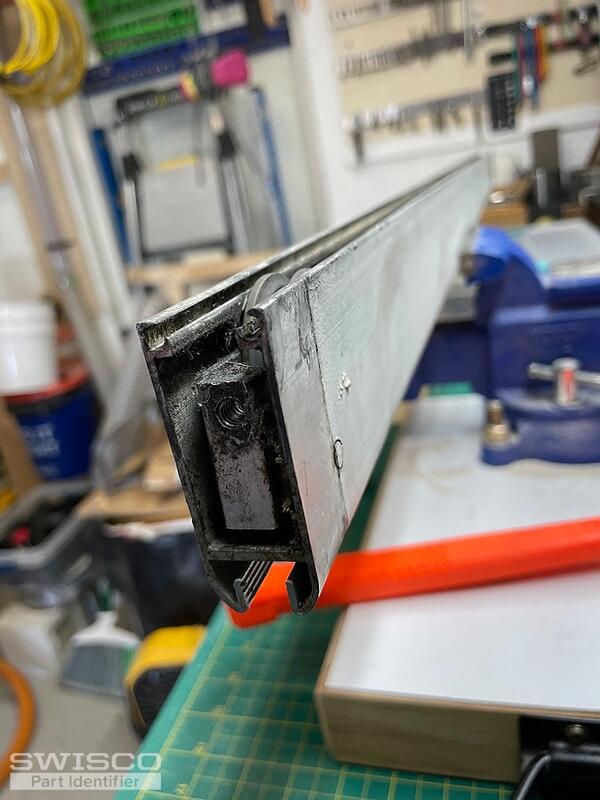

Thumbnail of the uploaded file named IMG_3339.jpg
Profile picture of Casey
Casey from SWISCO responded:
January 5, 2022

Hello,

We'd be happy to help but we would like you to write out the exact width and height of the housing, as well as the wheel diameter, to help us narrow down your replacement options. Thank you!
A home owner from Florida says:
January 6, 2022
hope this helps

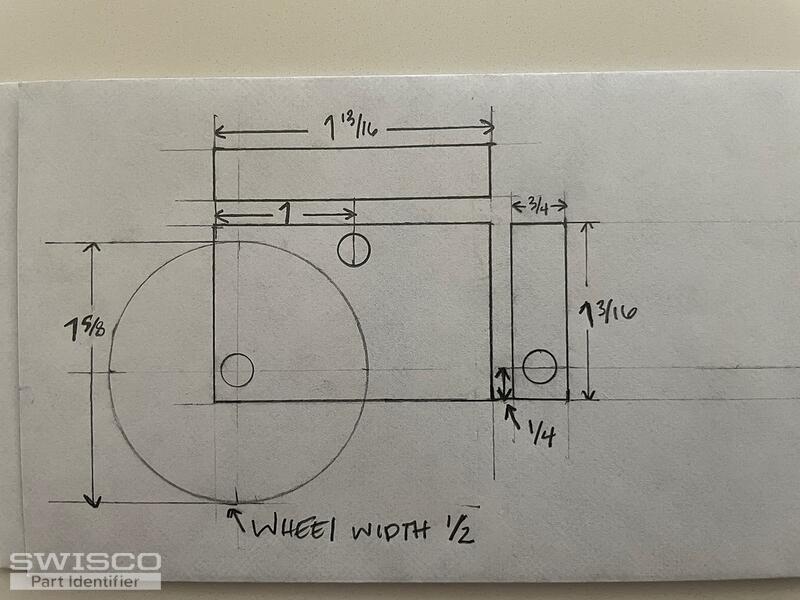

Thumbnail of the uploaded file named IMG_3352.jpg

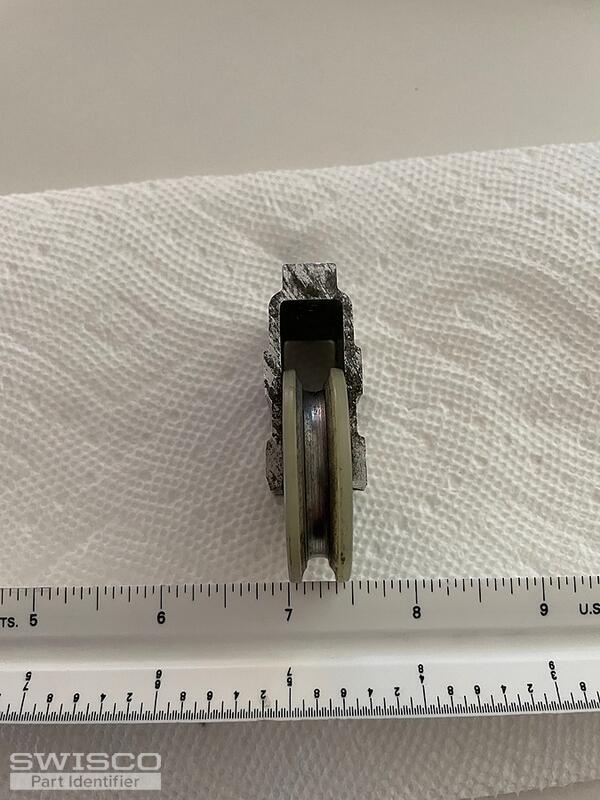

Thumbnail of the uploaded file named IMG_3353.jpg

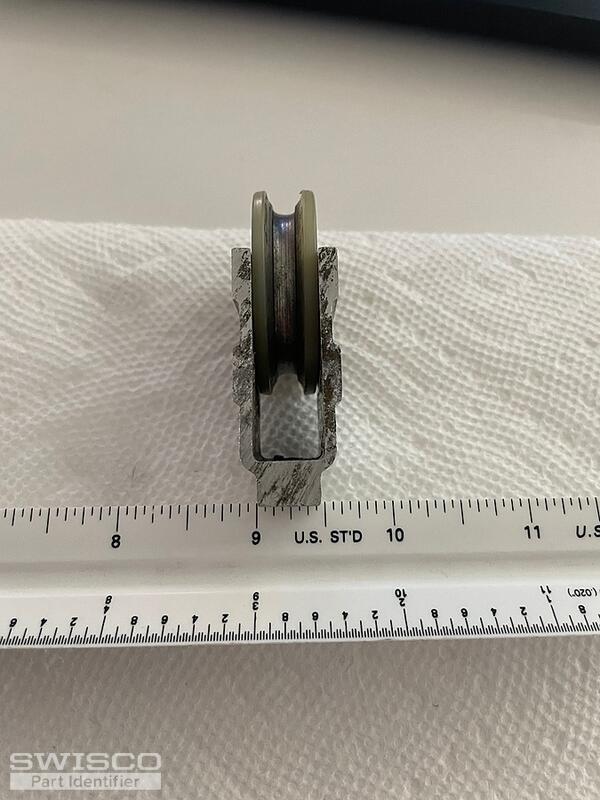

Thumbnail of the uploaded file named IMG_3354.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
January 10, 2022

Unfortunately, we could not find your exact roller housing or wheel. We do carry the 81-282 roller, which you would have to adapt to your bottom door rail. However, if your existing housing is in good shape I would suggest just replacing the wheel and axle. Take a look at the types of rollers, wheels, as well as the related parts and videos we've associated for you.
A home owner from Florida says:
January 11, 2022
Thanks for the response , i went ahead and ordered the roller and axle kit .
