Kimo Window Balance
Quick Learner from Hawaii
Aug 30, 2026 10:57 pm

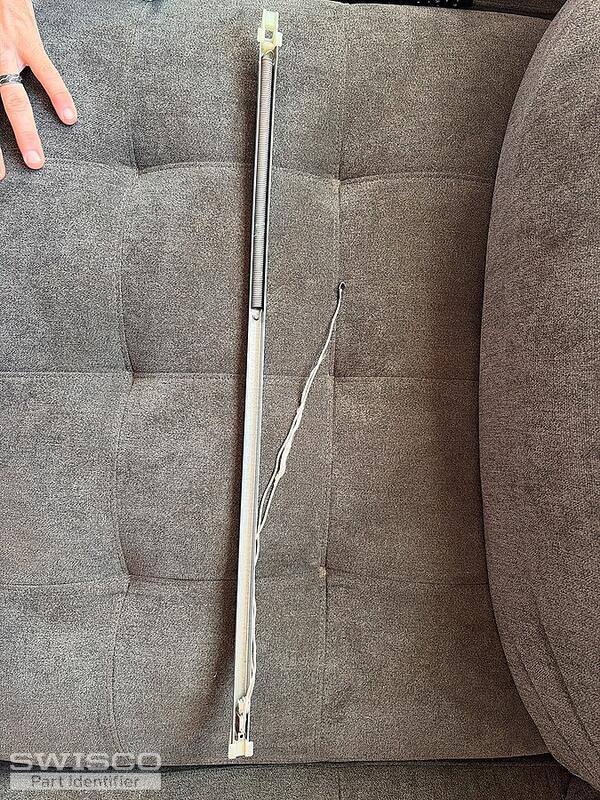

Looking to find a replacement for our Kimo window in our manufactured home. Fitting is 27" but I can't see the photos well enough to make a decision. Any advice from these photos? Also what spring tension should I be looking for?
4 user uploaded images
4 Replies
Tom from SWISCO
Sep 4, 2026 4:00 pm
Thanks for your photos. Based on what I see here, you have either our Series 380, Series 385, or Series 378 depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from Hawaii
Sep 4, 2026 4:33 pm
What about springs?
Tom from SWISCO
Sep 8, 2026 9:22 am
You can use the stamp printed on your old balance to pick the correct stamp option, which indicates spring calibration. If the old stamp is too faded to read then you'll need to weigh your sash on a scale. We have a chart on each balance's store page that tells you exactly how much weight each stamp supports.
