Kinco 18 & 24 inch balance

Quick Learner from Flordia
I need replacements for both 18 & 24 inch windows (both sides). Also Kinco ends for the windows. I have more photos, but was not allowed to download them.
5 user uploaded images
6 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. It appears that some of the fittings, or end attachments, on these balances have 'wings' or side tabs, but others do not. It's possible that simply some of the balances are damaged, but I can't be certain. This detail is crucial for identification. For both the 18" and 24" balances, please clearly document which attachments go with which size balance. Double-check the attachments for each. We'll do our best to narrow this down from there.

Quick Learner from Flordia

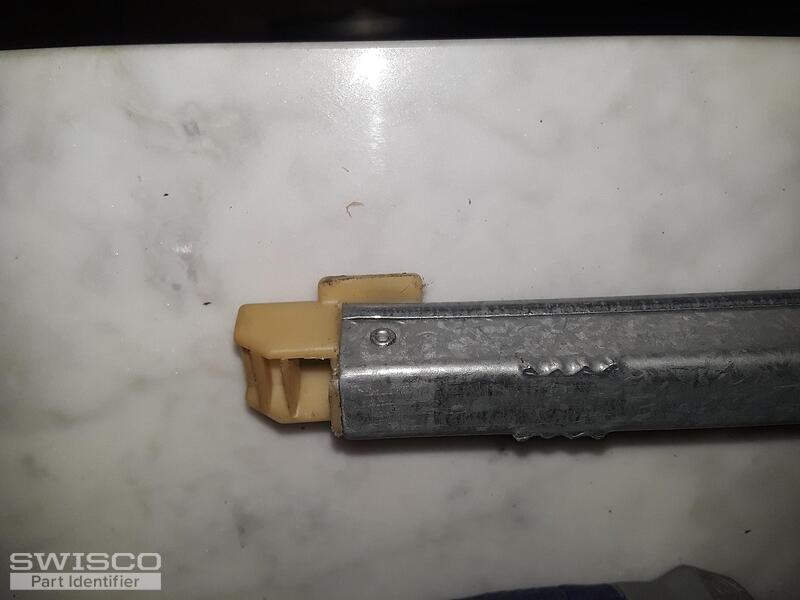

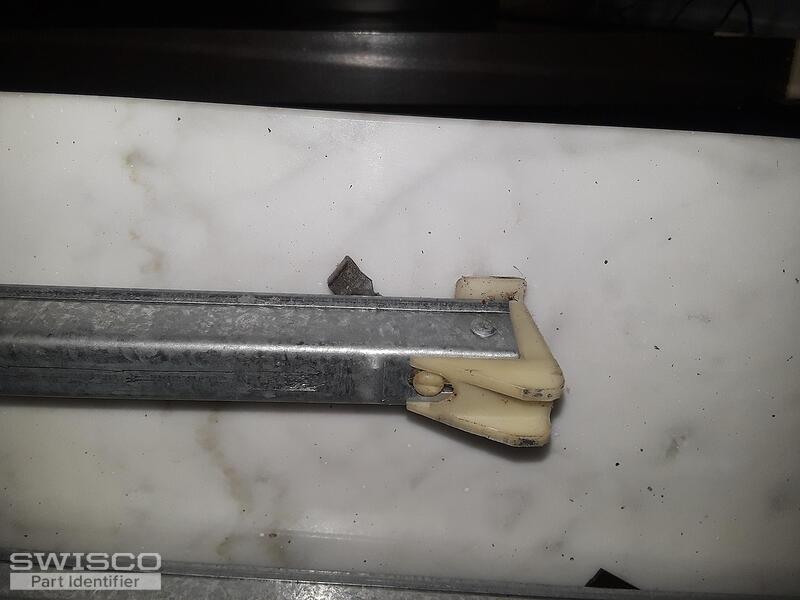

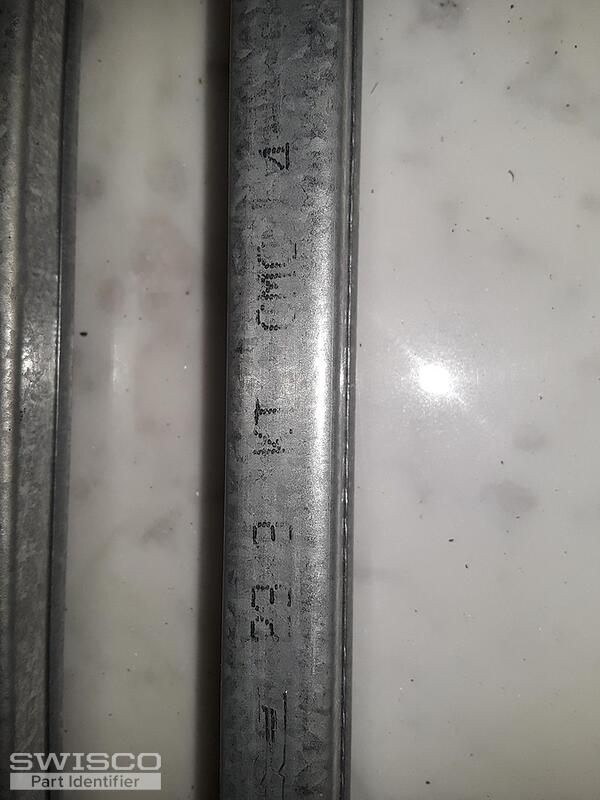

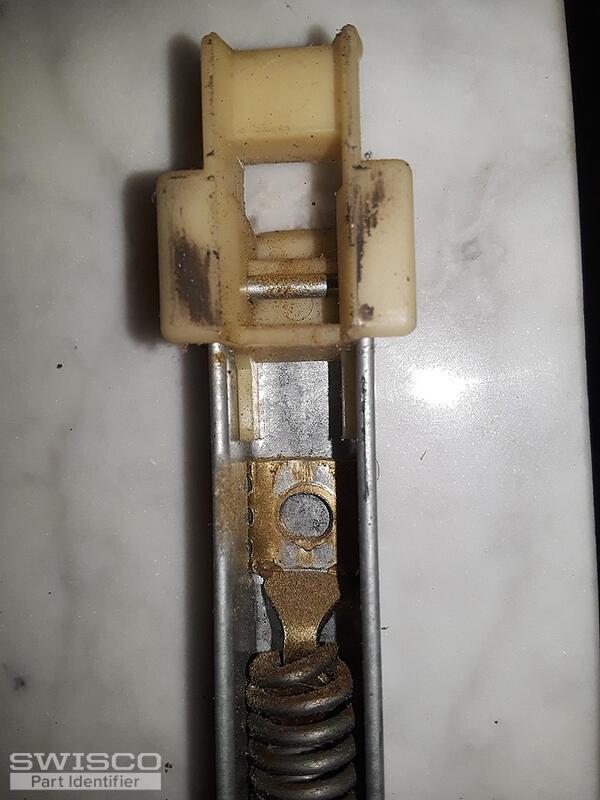

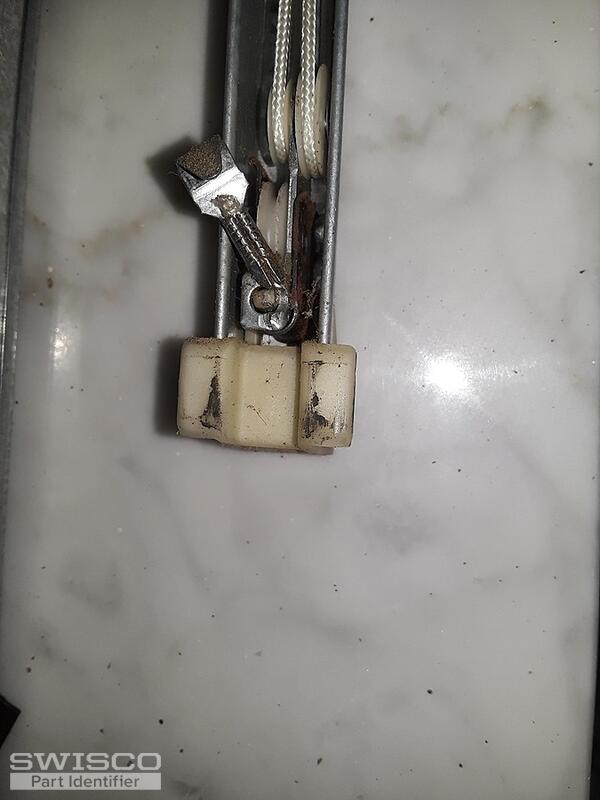

The first three photos are from the 18" balance and the last two are form the 24". I will attach more photos of the 24".
3 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Perfect, thanks! Based on what I see here, you have either our Series 380 or Series 385, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Flordia
They both are 1", so I guess that the s-380 is what I need to order..
Bob
Bob from SWISCO
SWISCO
Expert

Great! All orders can be placed directly on our site at your convenience. Please feel free to reach out if you had any other questions.
