Swiso, I think I need the 351 series vs the 390 series. The Shoe is different by 1/8". The Shoe and Top guide do NOT have wings (385 series). The measurement for the Top guide 1 1/4" H x 1/2" D x 1/2". the Top guide has 1 screw in the bottom section of part, no other holes.

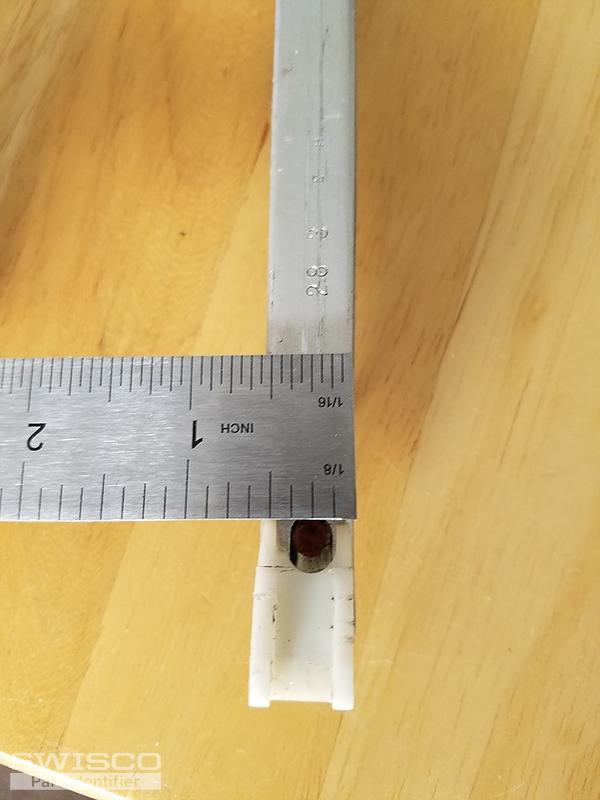

The metal part of the Channel Balance = 29" and stamp on Metal is 2830.
I also need the Top Window sash. The Sash has 1 screw hole in lower section. The approximate dimensions is 1 1/2" Height or Length of part. Then looking down at the Top of sash the dimensions are 13/16" L or 7/8" x 1/2" W
I have a lot more pictures if you need them.
Thank You for Your help.
Laura
Kinco Window Channel Balance Replacement 2830 Stamp
Quick Learner from Jacksonville, FL
Mar 23, 2021 10:07 am
4 user uploaded images
7 Replies
Quick Learner from Jacksonville, FL
Mar 23, 2021 11:27 am
Correction on Top guide has NO screw holes, it's a rivet. Sorry about that.
L
L
Quick Learner from Jacksonville, FL
Mar 23, 2021 1:16 pm

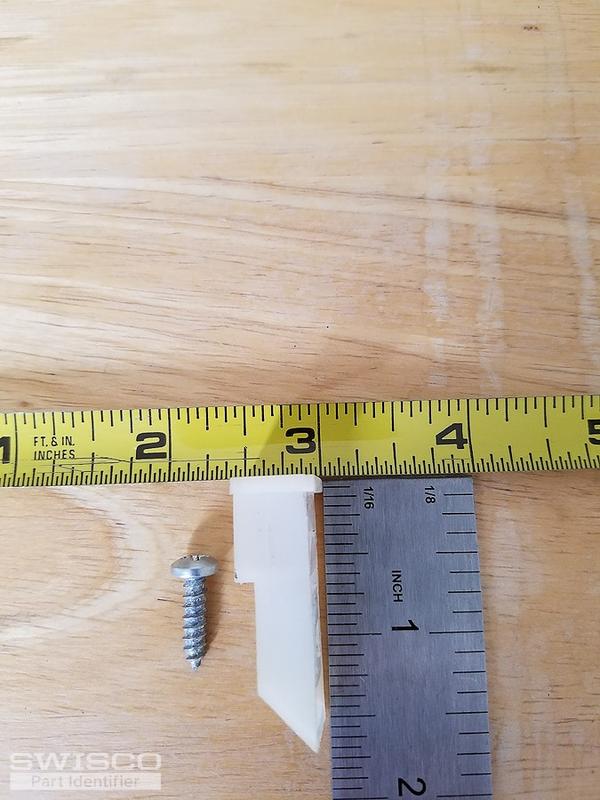

Top Sash looks like part # 18-127 but I don't have a tape measure to 1/32". I'm getting ~ 13/16' for the top. Other measurements are the same as your part picture.
See Photo, Thank You for Your help.
Sorry for additional messages but couldn't upload more photos.
Best Regards,
Laura
See Photo, Thank You for Your help.
Sorry for additional messages but couldn't upload more photos.
Best Regards,
Laura
3 user uploaded images
Quick Learner from Jacksonville, FL
Mar 24, 2021 12:08 pm
Swisco, I took out another Window and the Channel Balance Top Guide had Wings. I'm assuming the Shoe Wings broke off. I installed the 29" 385 Series I ordered and they work beautiful.
I still need help Top Sash. I bought the wrong ones.
Thank You.
I still need help Top Sash. I bought the wrong ones.
Thank You.
Emily from SWISCO
Mar 24, 2021 3:56 pm
Thanks for posting, Laura! It looks like our Top Sash Guide 18-166 would be what you're looking for. Check that out and let us know what you think!
Quick Learner from Jacksonville, FL
Mar 25, 2021 11:04 am
Emily,

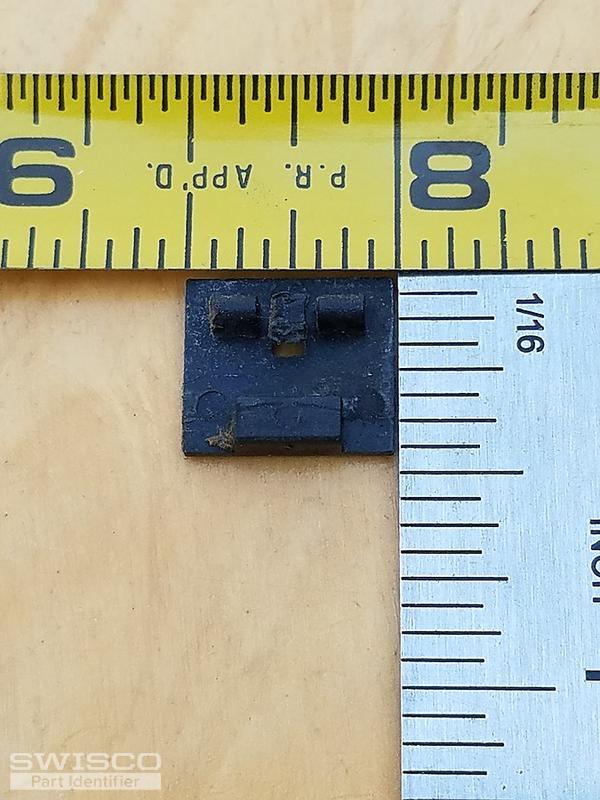

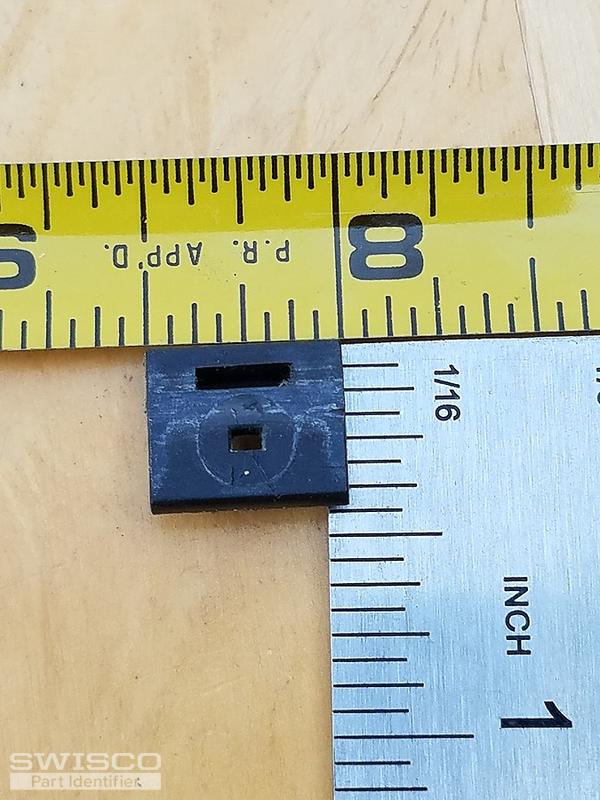

Would you happen to have the part # for the Window Face Guides. See photos. Thank You, L
Would you happen to have the part # for the Window Face Guides. See photos. Thank You, L
2 user uploaded images
Emily from SWISCO
Mar 25, 2021 11:44 am
Check out our Face Guide 67-026, the size looks like it may be slightly off but it's our best match for what you're looking for. Please feel free to reach out if you have any further questions and have a great day, Laura!
