Kinco balance and guide

Handy Person from Dade City, FL. 33525
Jun 15, 2023 1:37 pm

Please help me with the replacement of channel balance and top sash guide for Kinco double-hung window.

The metal part of balance is 30"

The 2 windows weigh 35 each

I would like a price to replace the balance and sashes

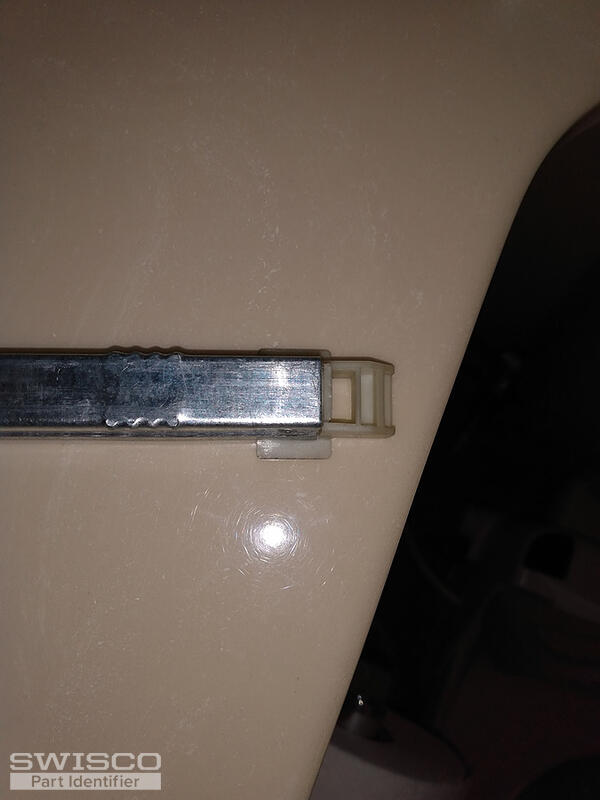

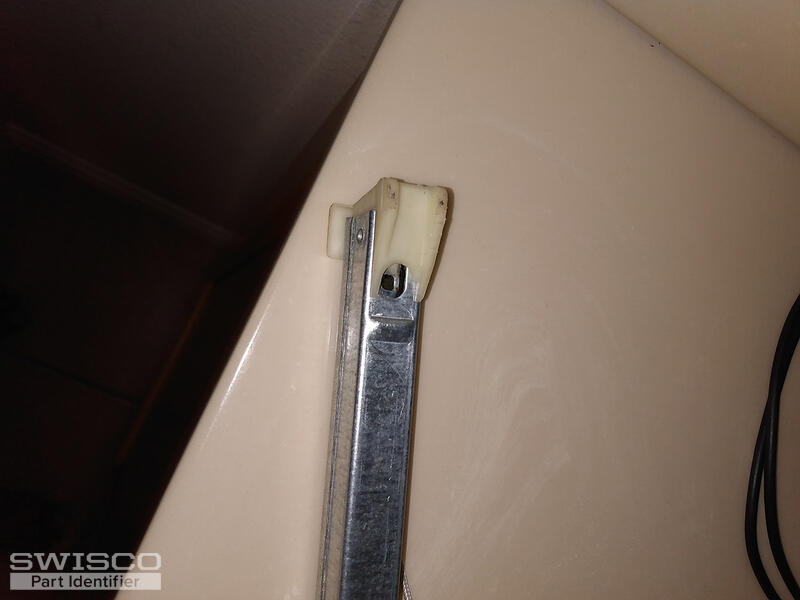

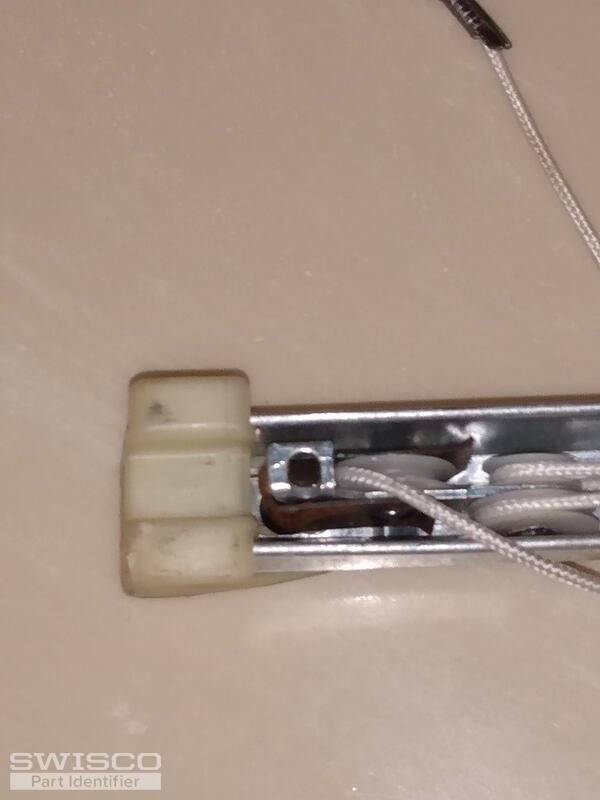

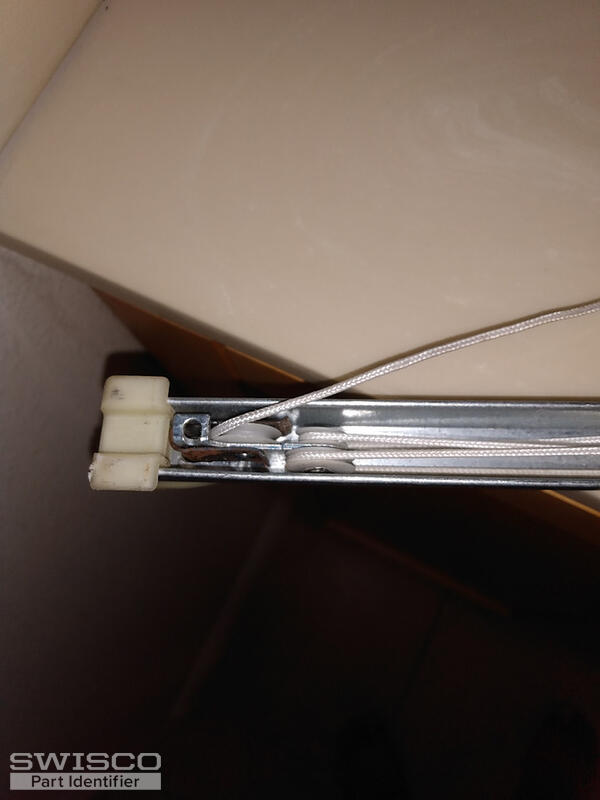

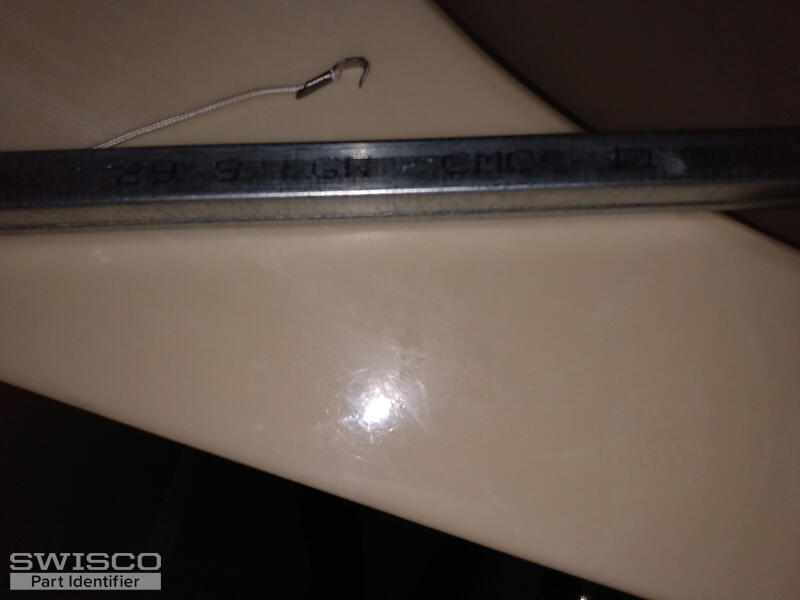

IMG_20230615_115116602 IMG_20230615_115135819 IMG_20230615_115159610 IMG_20230615_115217001 IMG_20230615_115727432
5 user uploaded images
1 Replies
Casey from SWISCO
Jun 15, 2023 2:00 pm


With this combination of attachments, you could have either the S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need either 2960 or 2965 strength options for your replacement balances since both options will support a 35-pound sash as shown below. Just make sure you use the same strength option for both sides of the window.

As also carry the 18-044 and 18-166 top sash guides but you would need to compare the specifications below to your original guide. If neither is a match, get back to us with photos and written-out dimensions of your guide to help us research your replacement options further. Thank you!

2960: 32 to 35 lbs

2965: 35 to 39 lbs

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

Detail of 18-044
Detail of 18-044

Dimensions for 18-044
Dimensions for 18-044

Profile view of 18-166
Profile view of 18-166

Detail of 18-166
Detail of 18-166
