Kinkade industries float a way metal bi fold doors

A home owner from Bensalem , Pa says:
February 7, 2022

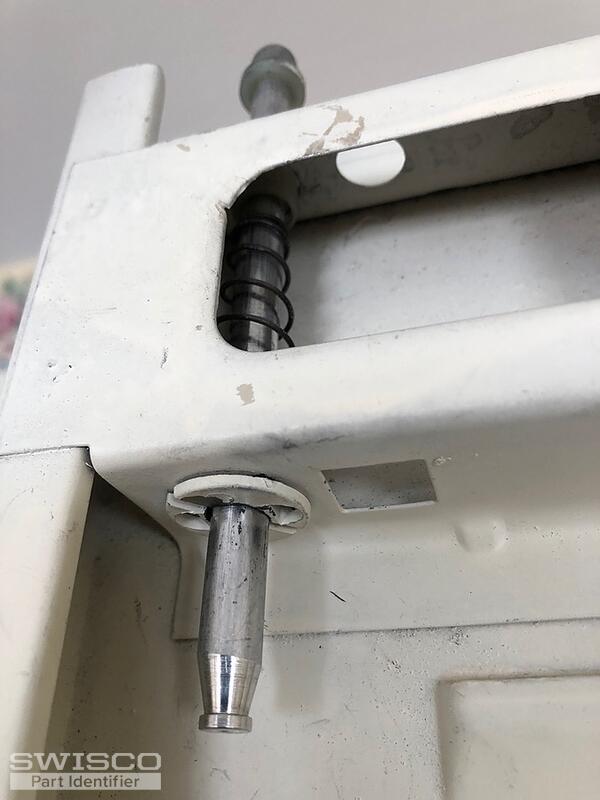

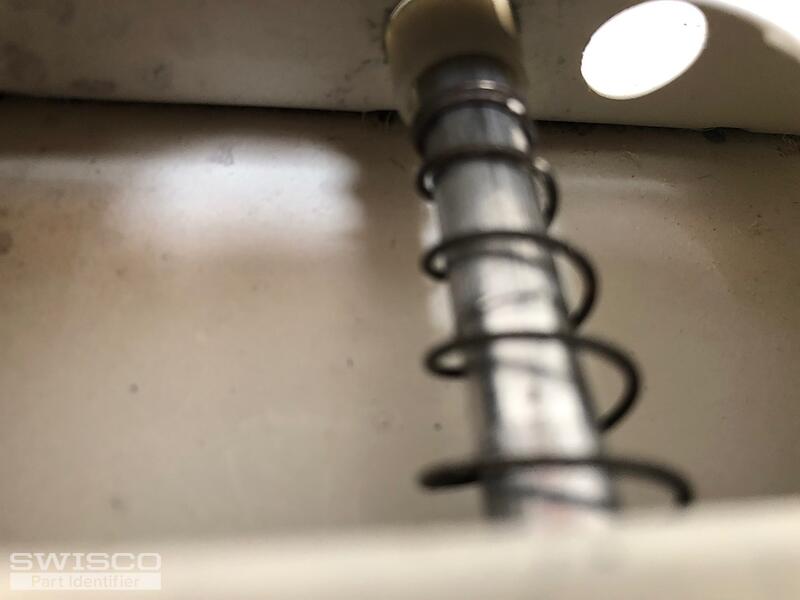

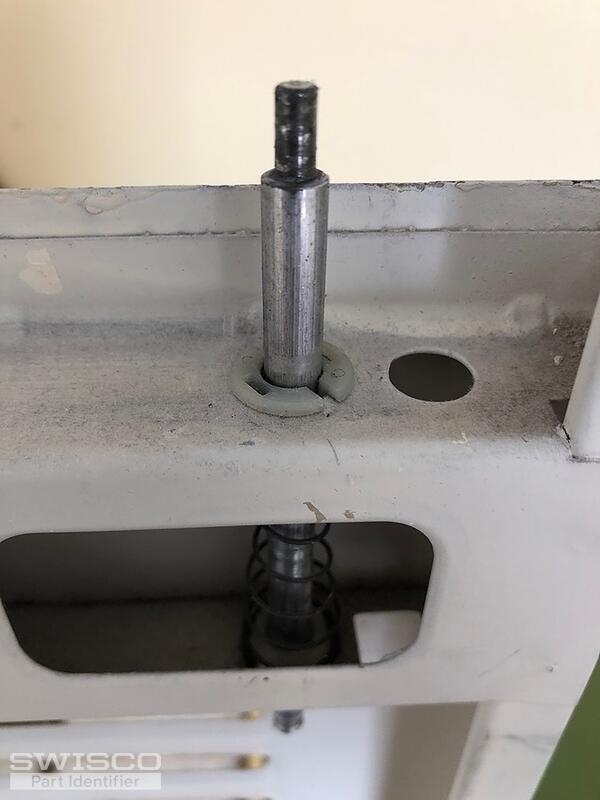

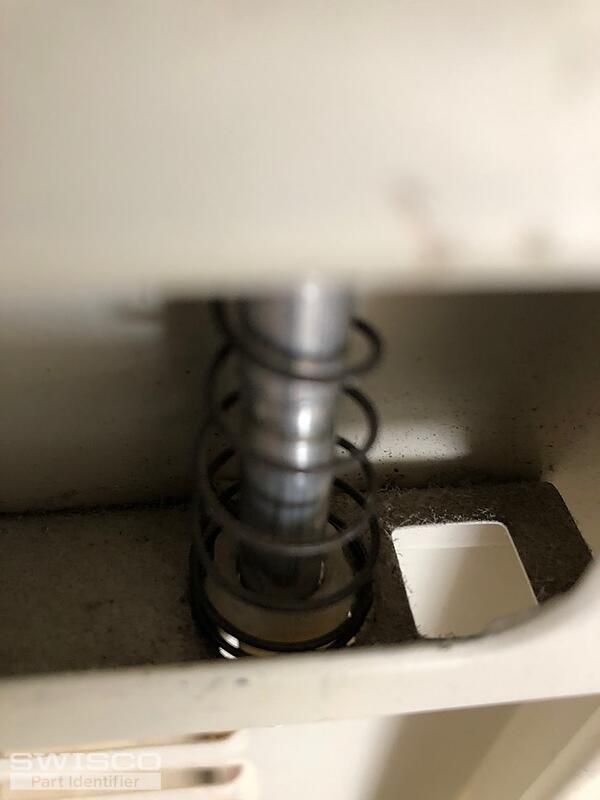

Metal pins are fine but need grommets with inner hole diameter 5/16" and bushing inside diameter 5/16" and pin cap 3/16" inside diameter and come spring 2" high , 5/16" and 3/4" diameter. I will send additional photos to make sure parts will fit. Also are there any videos on best way to insert long metal pin back into hole without bending cone spring. Thanks , Bill

Thumbnail of the uploaded file named ACA11090-38F5-4250-B0B3-04AE15167033.jpeg
Thumbnail of the uploaded file named 0BC98565-C2F9-431E-9243-9C57A59A6645.jpeg
Thumbnail of the uploaded file named EFE4D71C-7450-4117-86D7-A381B3D68193.jpeg
Thumbnail of the uploaded file named A3CDA4EF-64F8-45A2-8258-8D78D79AEDFC.jpeg
Thumbnail of the uploaded file named F250123C-AC6C-4D2F-9FEF-8F3CADE3D5D7.jpeg
A home owner from Bensalem , Pa says:
February 7, 2022

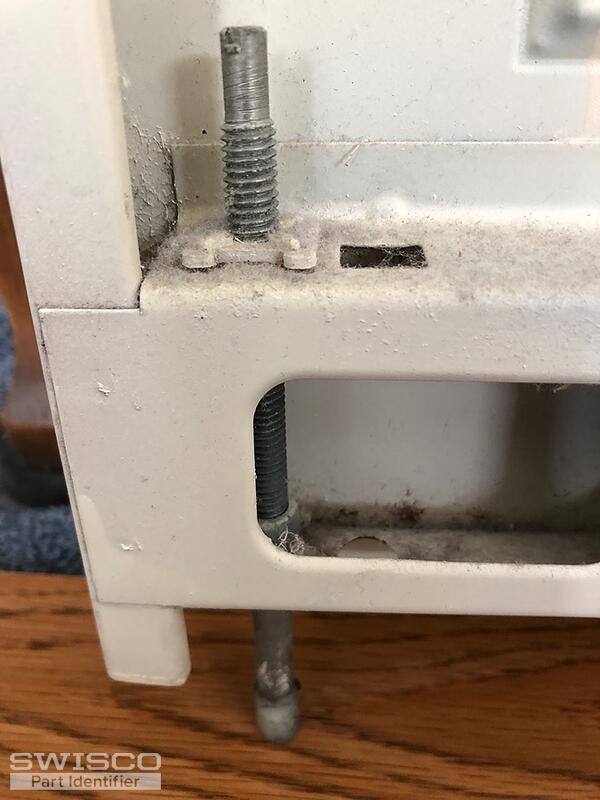

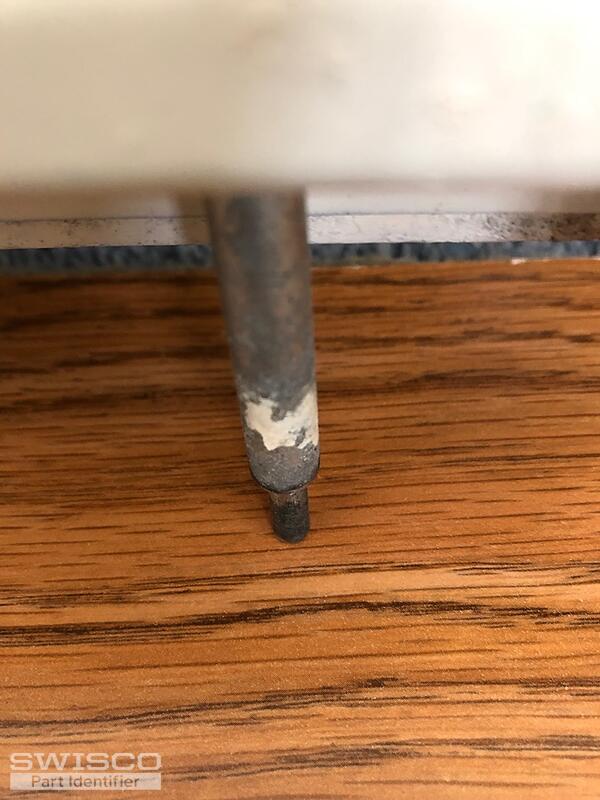

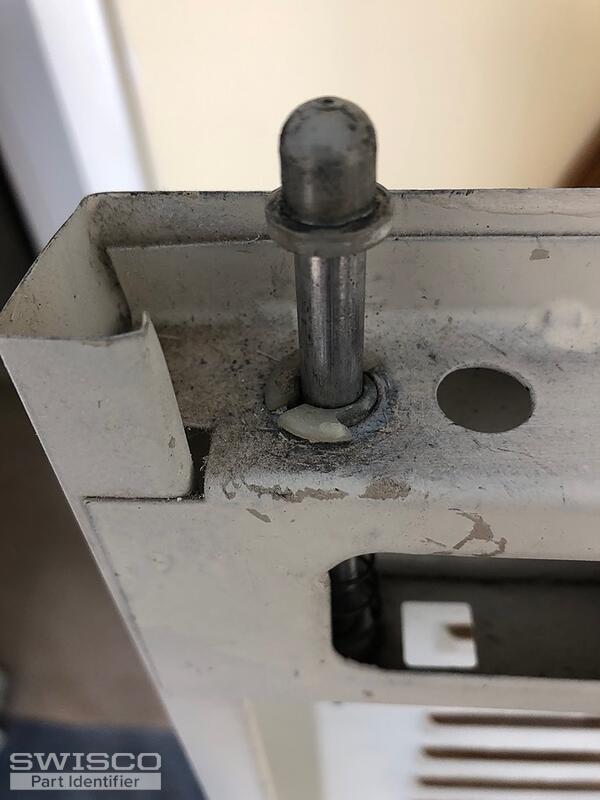

Here are additional photos of metal rods from top of stationary and moving bi fold doors.
Thumbnail of the uploaded file named AC954911-B84E-4132-80DF-762588AEE9D8.jpeg
Thumbnail of the uploaded file named 55649E8B-9FFE-4A34-9DA4-97B3B0BEBABB.jpeg
Thumbnail of the uploaded file named 868C5F01-F0FA-47DD-B320-2D601E59448B.jpeg
Thumbnail of the uploaded file named 692B2602-C353-4D4C-8AA4-4C30AA3A39CE.jpeg
Thumbnail of the uploaded file named 2744FB00-C495-4438-B3FC-7A9807C58A4E.jpeg
Profile picture of Lauren
Lauren from SWISCO responded:
February 8, 2022

Hi Bill, thank you for posting!

Please review the 21-104 pin cap, 21-152 grommet, 21-153 bushing and 21-256 cone spring to see how they compare to your original pivot parts. Unfortunately we do not have an instructional video on the install. I apologize for the inconvenience.
Bifold Door Pin Cap, Float-A-Way
Bifold Door Pin Cap, Float-A-Way
21-104
$1.02
Floating Grommet, Float-A-Way
Floating Grommet, Float-A-Way
21-152
$1.05
Cone Spring
Cone Spring
21-256
$1.01
Bushing, Float-A-Way
Bushing, Float-A-Way
21-153
$1.65
Bi-fold Door Repairs
Bi-fold Door Repairs
GUIDE
READ >
