Hello,

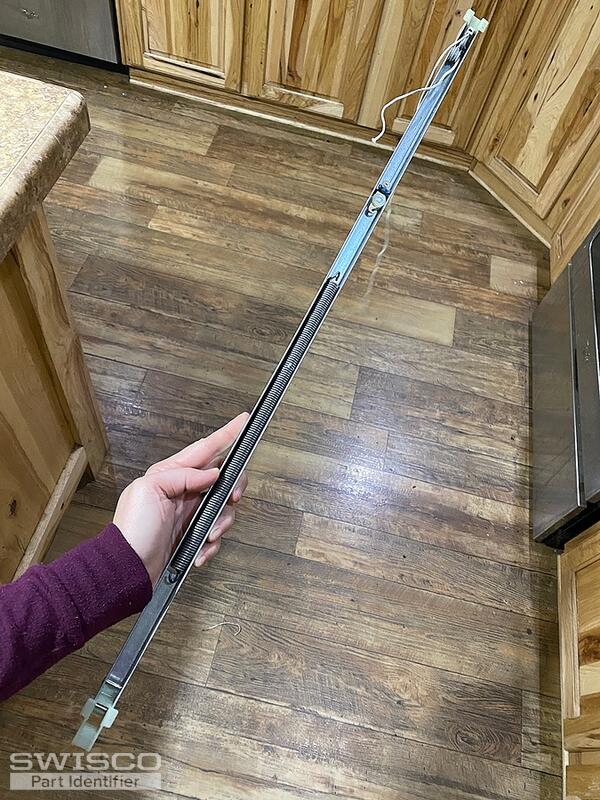

Need some help pinning down the correct balance for a Kinro window. Part stamp is included in the one of the pictures. Overall length including the plastic footers that are pinned in place is 28". Thanks in advance!
Kinro Window Balance
Home Owner from Oregon
Aug 4, 2023 1:34 pm
4 user uploaded images
5 Replies
Home Owner from Oregon
Aug 4, 2023 2:21 pm
Additional measurements: the metal portion only is 27". The rounded plastic foot is 1" deep.
Lauren from SWISCO
Aug 4, 2023 2:46 pm
Hello, thank you for posting,
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
If the shoe is 1" as noted, you will need the S380-27 with a 2640 stamp option. Please review and let me know if you have any additional questions!
Comparison of the S378, S380 and S385 balance shoes.
Home Owner from Oregon
Aug 4, 2023 3:35 pm
Thank you! That's where I was leaning but wanted the experts opinion! ? have a good day!
Lauren from SWISCO
Aug 4, 2023 3:58 pm
No problem! Please let us know if you have any future hardware questions.
