Kinru Vinyl window 46x68 size

Quick Learner from Sunnyvale, CA

Apr 27, 2019 7:50 pm

I have captured as many images as I can to ensure the correct part is ordered.

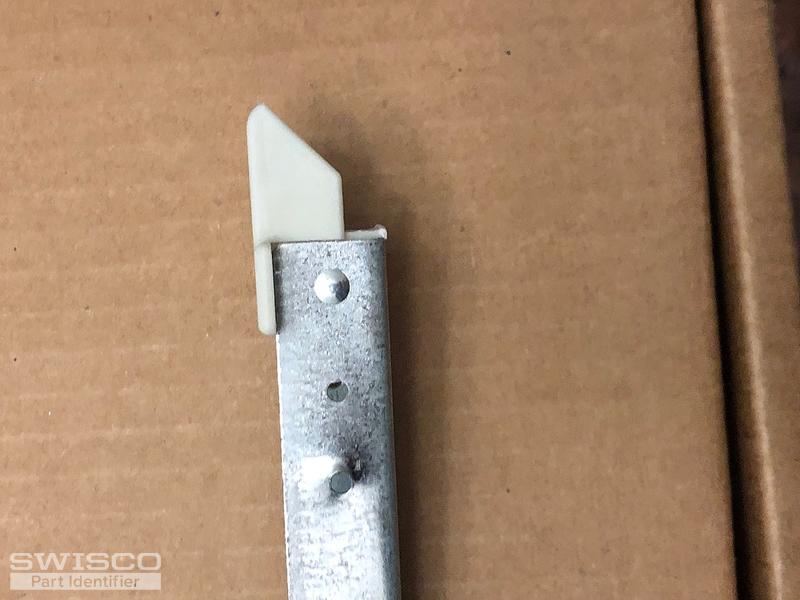

The Channel Balance measures 27 inches from bottom shoe to the top of the metal channel. Channel width is 9/16" outside edge to edge. 26 4 is stamped on the backside of the channel.

4 user uploaded images

2 Replies

Tom from SWISCO

Apr 29, 2019 2:26 pm

Thanks for contacting us. Please see our S395-27 channel balance with a 2640 option. This looks like it will work well as a replacement, but look it over and let me know if you agree.
