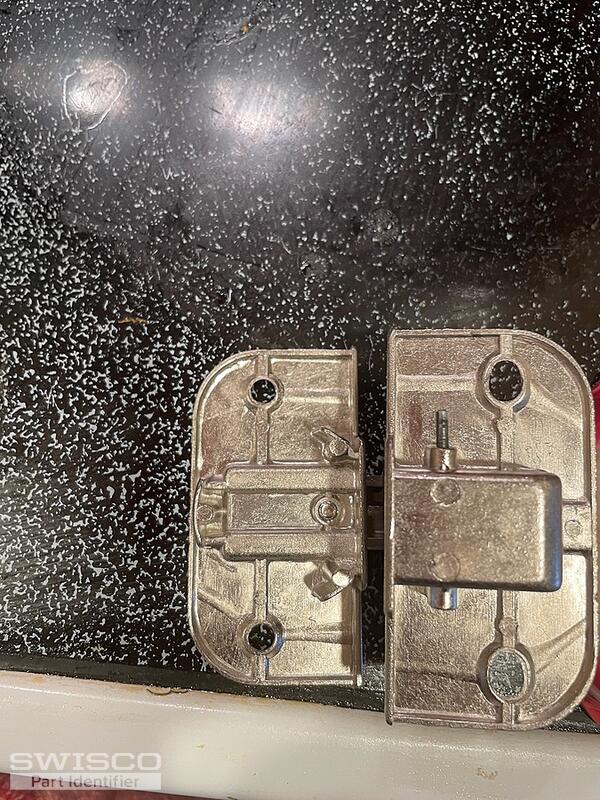

Height is 2.5 inches with screw holes 2 inches apart
Screw holes 3/4 inches from edge

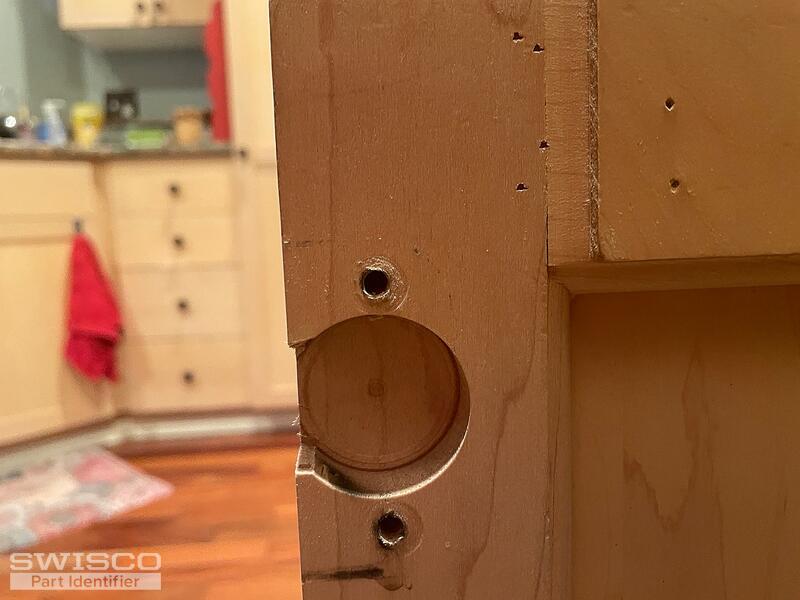

The indentation in cabinet is 1.5 (see photo with wooden hole)
The entire doors ings from the left, with door with handle on right
The cabinets were installed circa 1997-98
Kitchen Cabinets Corner Hinge
Quick Learner from Lynnwood, WA
Oct 29, 2024 4:39 pm
5 user uploaded images
4 Replies
Casey from SWISCO
Nov 1, 2024 11:23 am
Hello,
We carry one pie-cut corner hinge similar to yours, the 32-351. Unforutnately, the measurements don't quite match your part. I'm sorry we won't be able to offer a closer match but please let us know if you have any other hardware questions. Thanks for posting.
Dimensions for 32-351
Quick Learner from Lynnwood, WA
Nov 4, 2024 4:30 pm
Just wanted you to know that the Pie-cut hinge you recommended worked perfectly. Thanks so much for your prompt response and expertise!!!!!
Casey from SWISCO
Nov 5, 2024 7:51 am
That's great news! Thanks for letting us know how everything worked out. We look forward to assisting you with future projects.
