Home Owner from Towaco, NJ 07082

Jul 18, 2020 1:34 pm

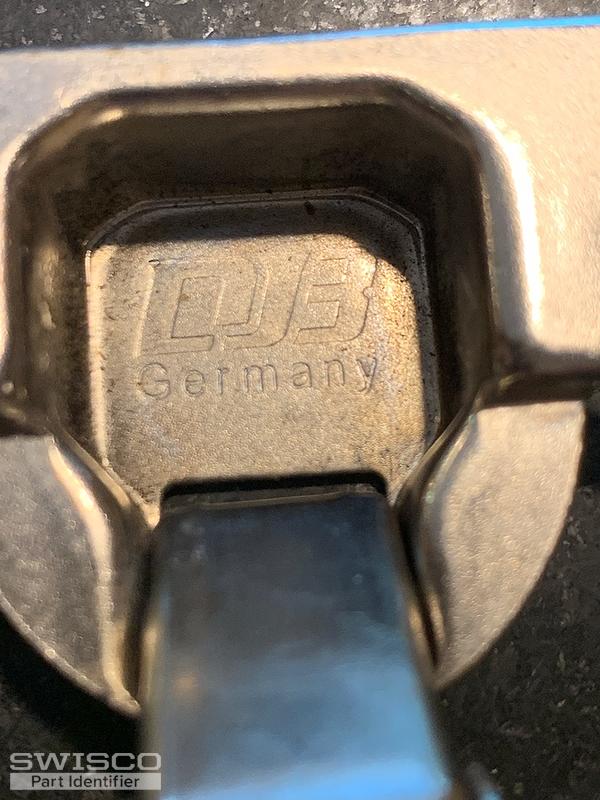

One of the cabinet doors uses different hinges. Hinge B is attached to the cabinet in the photo. It has a marking that looks like "DJ3."

4 user uploaded images

6 Replies

Casey from SWISCO

Jul 21, 2020 1:10 pm

Hello,

We do carry a selection of cabinet hinges but I'm not sure we have a direct replacement for the ones in your photos. Our most promising option appears to be our 32-349. Take a look and see if the specifications could work for one or both of your hinges. Thank you!

Quick Learner from New Jersey

Aug 11, 2024 10:44 am

Hi, do you have the dimensions / specifications of the hinge 32-349? thx

Casey from SWISCO

Aug 12, 2024 10:17 am

We'll include the dimensions of the 32-349 below. Additional specifications can be found directly on our product page. Thanks for posting.

Dimensions for 32-349

View of 32-349 in the closed position

Quick Learner from New Jersey

Aug 17, 2024 5:47 pm

Hi, the dimensions match but unfortunately the 32-349 hinge misses the mark (but not by much). It is too wide against the door and pushes the door outward and can't close.

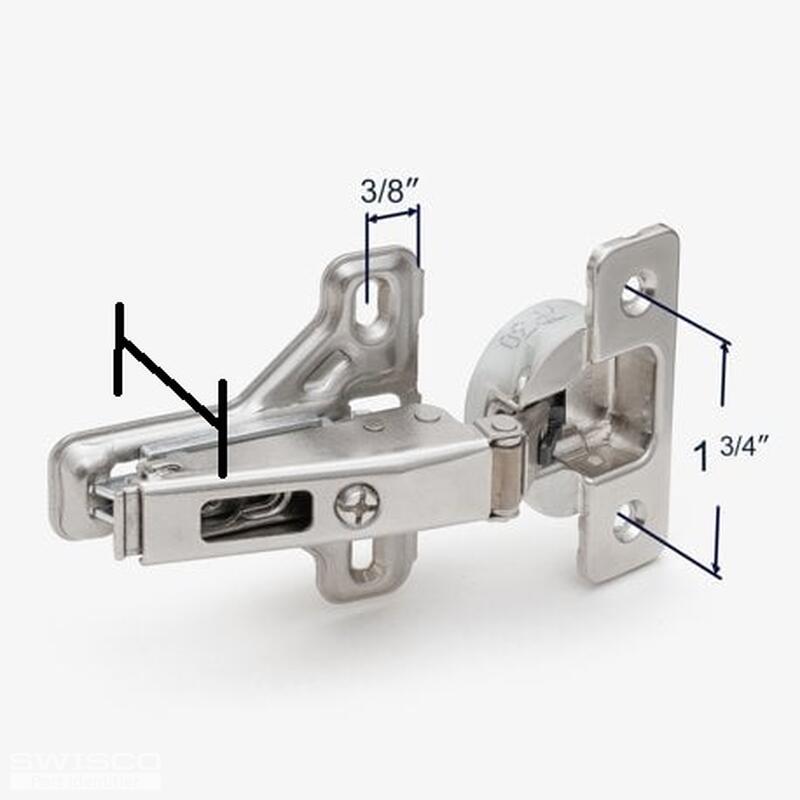

On the attached picture I added black lines showing the location where the hinge is too wide. Let me know if you have any other suggestions.
thank you,

1 user uploaded image

Casey from SWISCO

Aug 19, 2024 8:48 am

Unforutnately, we do not carry a thinner version of the 32-349. The only other option we could supply would be the 32-340A but it differs from the 32-349. Review the specifications and see what you think.

Dimensions for 32-340A

Rear view of 32-340A

32-340A shown in the closed position
