Knikead Industry bi-fold door pins

A professional from florida says:

May 11, 2021

I am looking to purchase bi-fold door pins for the float away doors made by knikead industry. I need all four pins for each door. I would purchase 10 sets if available

Bob from SWISCO responded:

May 13, 2021

You might need our 21-033 and 21-035 Float-A-Way Bifold Door Pins, but I can't be certain. Compare the diameter of the pins and the diameter of the caps atop the pins. Let me know if anything differs.

A professional from Winter Haven Fl says:

May 14, 2021

I am looking for the pivot pin for meatl "Float A-way" bifold doors. the pivot pin is 1/4 inch at bottom. Also would like the other three pins if available

Thumbnail of the uploaded file named IMG_4617.JPG

Thumbnail of the uploaded file named IMG_4616.JPG

Thumbnail of the uploaded file named IMG_4615.JPG

Thumbnail of the uploaded file named IMG_4612.JPG

Thumbnail of the uploaded file named IMG_4611.JPG

Bob from SWISCO responded:

May 19, 2021

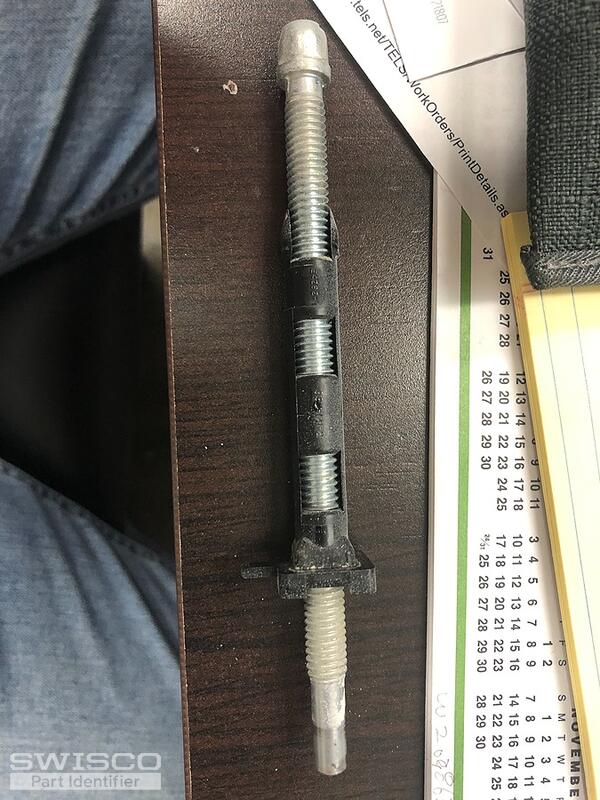

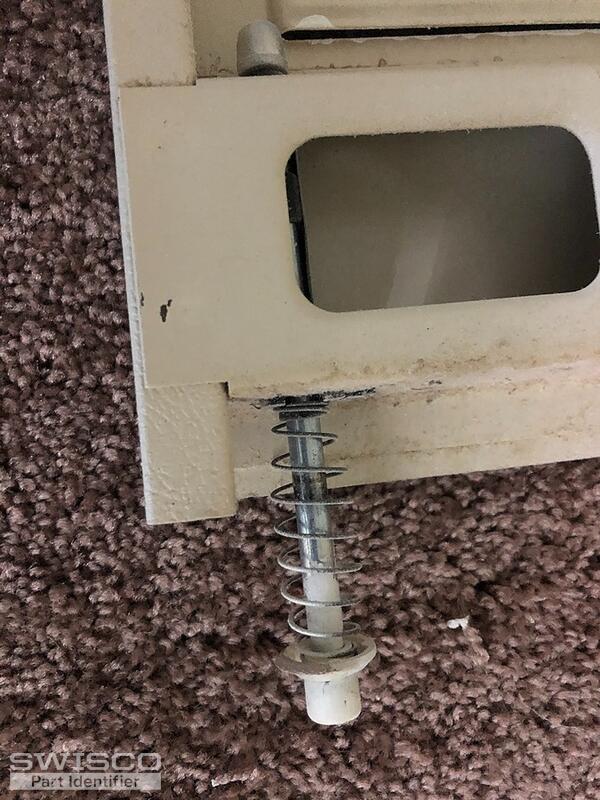

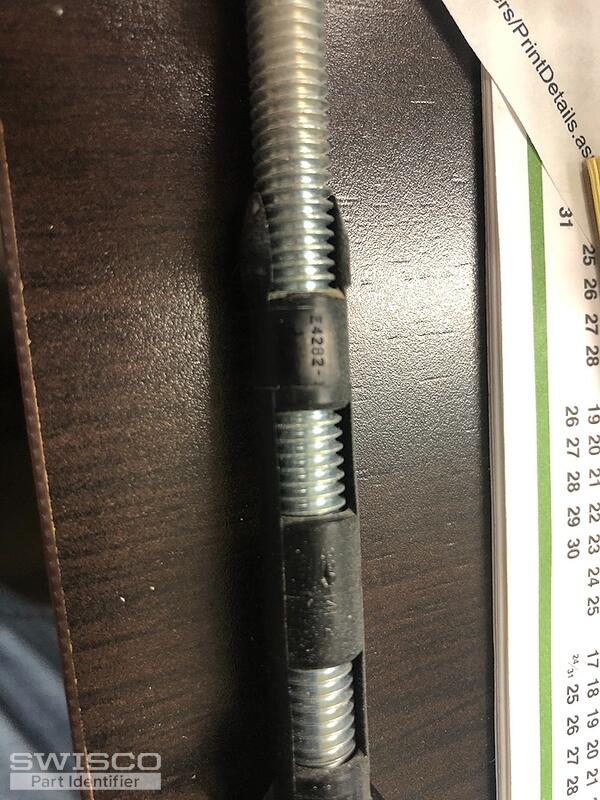

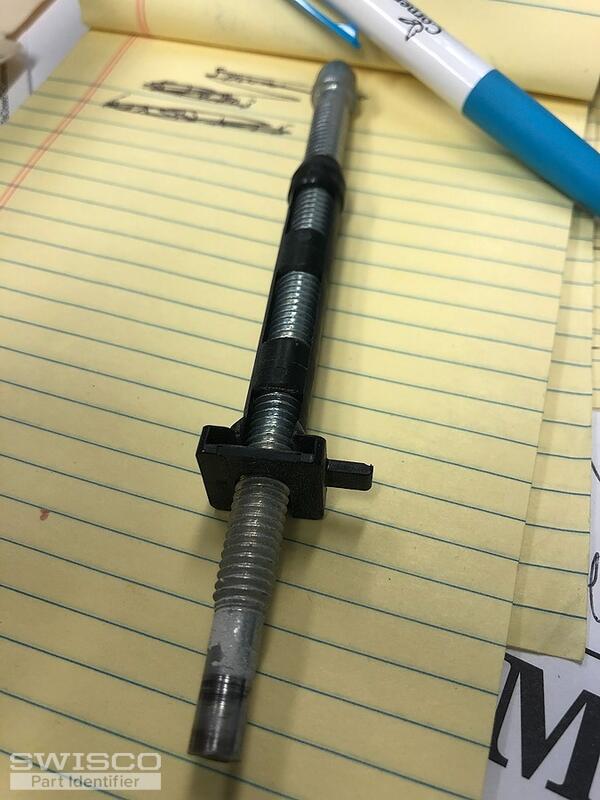

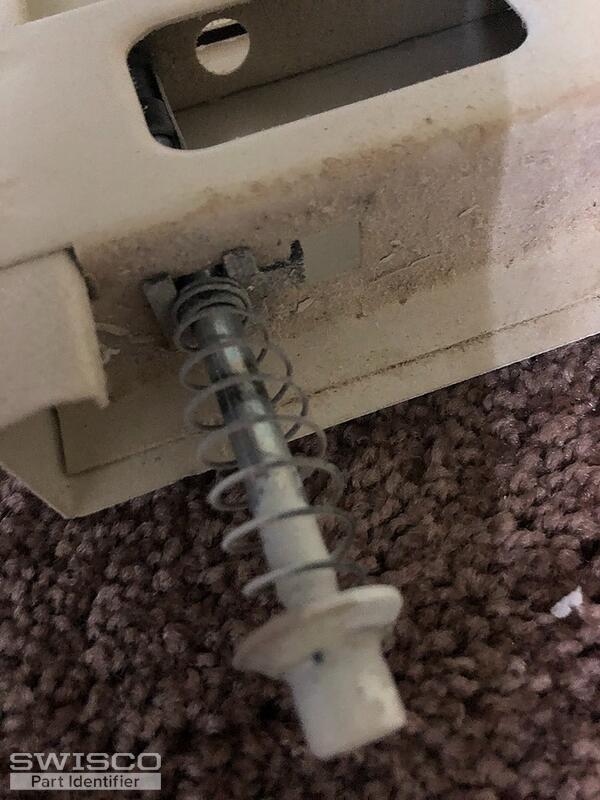

The first three photos look like our 21-023, the bottom threaded pivot pin. The last two look like our 21-022 spring loaded guide pin. We also have the top spring loaded pin, the 21-024. Please compare

Float-A-Way Bi-fold Door Bottom Guide Pin

21-033

$11.80

Bifold Door Guide Pin, Float-Away

21-022

$3.87

Bifold Door Top Pivot, Float-Away

21-024

$3.20

Bifold Door Bottom Pivot Pin, Float-Away
