Kohler Sliding window with pivot

A home owner from Vinton Va. says:
September 25, 2017
Good Evening.
I have several Kohler Windows 50979 013 that have broken Pivot bars.
The one listed on your site 26-369 looks to be that design but I don't have small enough measuring devise to properly measure it.
Would that item be the replacement pivot bar I'm needing from your experience working in this field?
Thank you.
Sincerely

Bill
Profile picture of Paul
Paul from SWISCO responded:
September 27, 2017
I'm not sure if our 26-369 is the pivot bar for your Kohler window. They used a variety of pivot bars. Please send a photo of the bar and the pivot shoe so we can help sort this out.
A quick learner from Vinton va. says:
October 1, 2017
Paul.

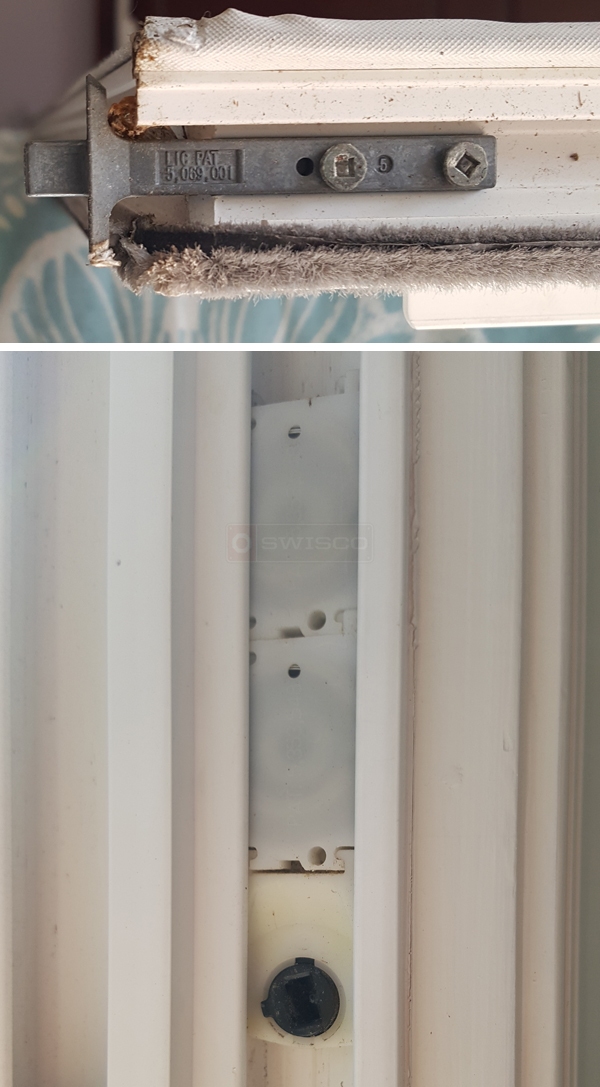

Here is a pic of the pivot bar and slide shoe.
Thank you.
Bill morris
User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
October 5, 2017
This pivot bar does look like our 26-369. The balance system consists of a 15-087 pivot housing and a 15-086 tandem coil spring housing. The coil inside is a Series 180. You will need the number stamped on the coil spring when ordering, because it determines which coil from the Series to choose.
Flared Pivot Bar
Flared Pivot Bar
26-369
$1.83
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
Tandem Coil Housing
Tandem Coil Housing
15-086
$1.68
Mounting Bracket
Mounting Bracket
16-024
$0.66
3 lbs Series 180 Coil Balance
3 lbs Series 180 Coil Balance
S180-03
$4.20
