Kohler tilt in window

Question

Bottom left window of pair of windows (left and right) has 2 issues.

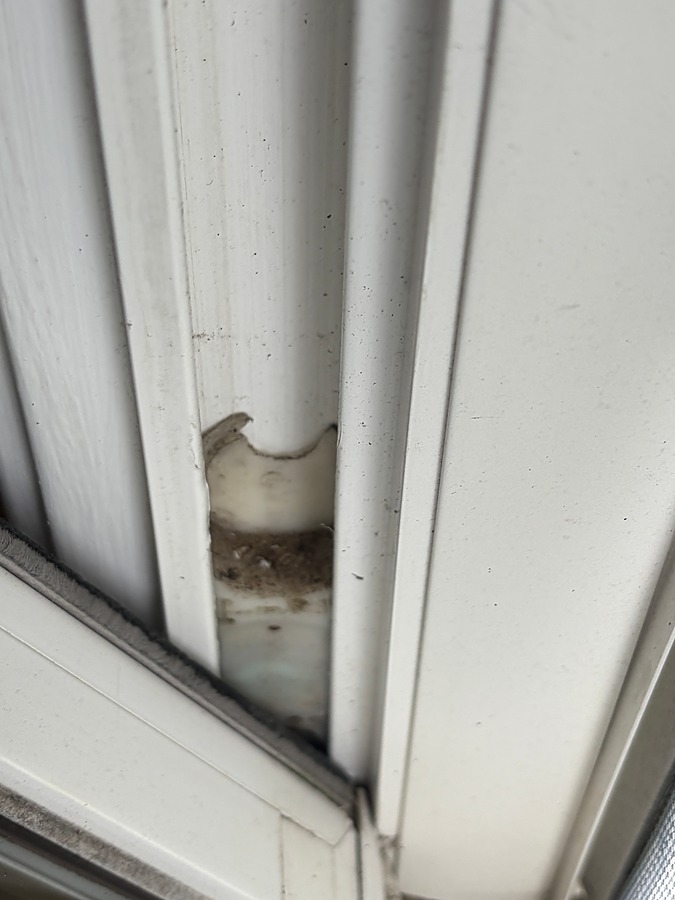

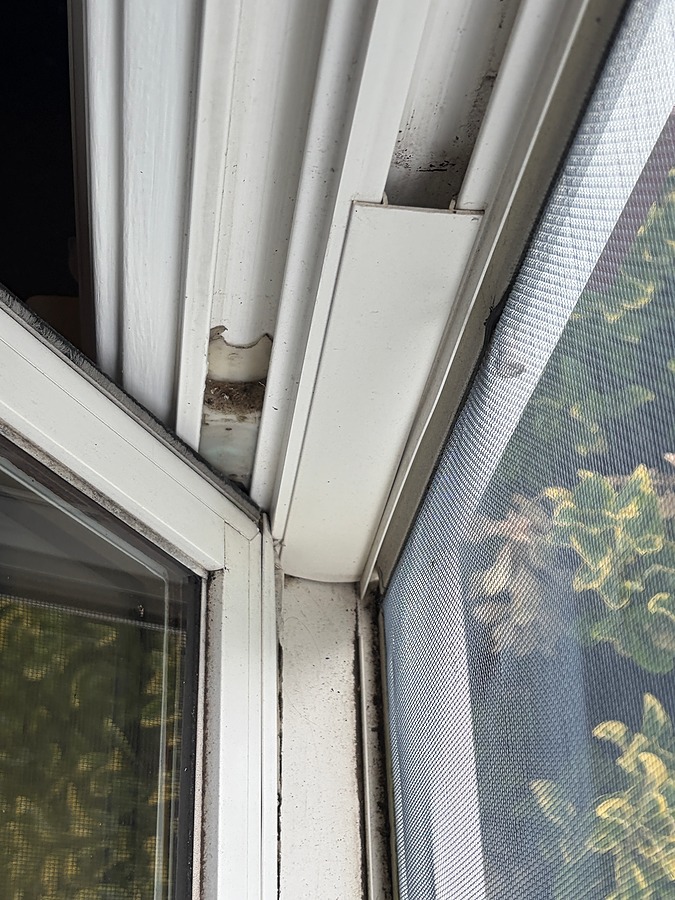

First issue is the coil balance on lower left window is broken. Image 2 and 3 are of the sticker on the window. Hard to read but looks like to me it says EDH/200863 on line 1 and 303166/0003 on line 2. Images 4 and 5 are of the broken coil balance on the lower left. Image 16 is of the right side lower window coil (other side of window) withour the window in place. The thickness of the coil parts is like 11/16" (depth of slotted area). Looking to get new coil balance for lower left window.

Second issue is the window tilt latch on lower left window, which is the same window, is not working (Image 7). Hoping to get replacement parts for this.

Jasmine · Accepted Answer

Hello,

Thanks for your post! The photo of your tilt latch did not upload. Would you be able to try uploading it again?

We do not have an exact replacement match for this coil assembly but there is a chance the 15-087 Coil Housing Pivot may work for your repair. You'll also need the 15-086 Tandem Coil Housing. The specifications for these parts can be found on the website.

The compatible coil spring is the Series 180 Coil Balance. To determine the correct coils for your assembly, you'll need to look for stamp/marking on the existing coils. If there are none, please see the tutorial below for instructions on selecting the correct coil weight option.

We show a different assembly but the steps are virtually the same.
