LH/RH Garden Window Lock & handle Assembly

Home Owner from Hoffman Estates, IL

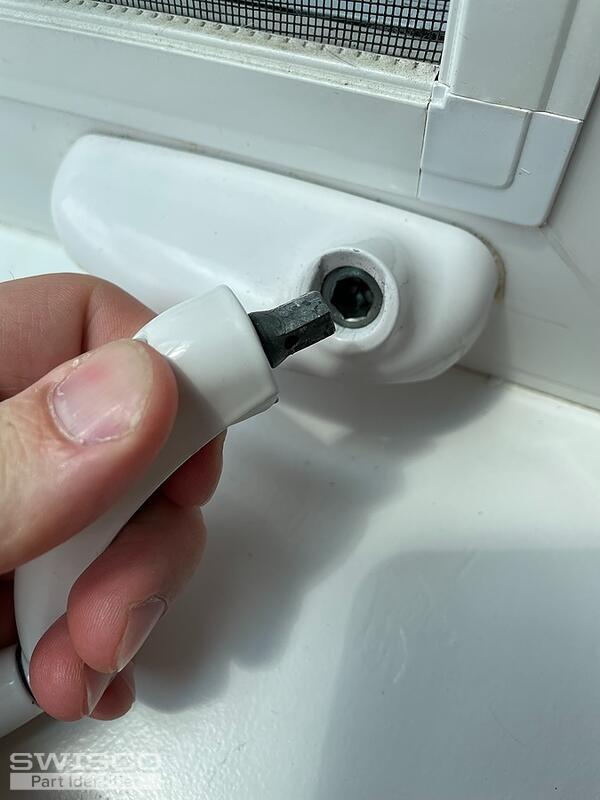

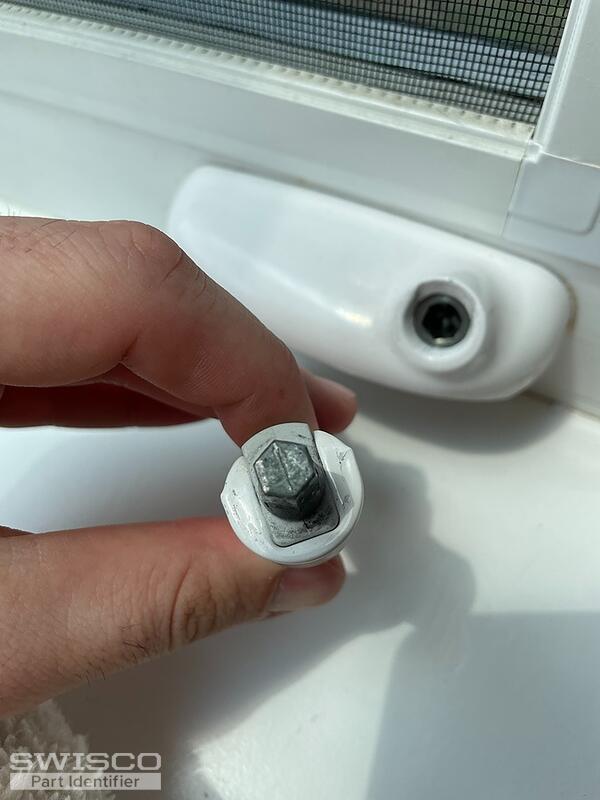

I have a garden window where the LH lock broke and the handle. I saw your 38-100 assembly and 38-099 but they are only 4" where mine is closer to 4.5". Do you have a something similar for both the locks (RH and LH) and the removeable handle?
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting! There is a chance we may be able to supply you with the replacement locks you need for your window, but I will need to see a photo of them removed from the window to determine the correct replacement. I'll need to see how to lock interacts with the other components in the window and exactly how it installs.

You casement operator crank handle appears to be the 39-226 Male Roto Folding Crank Handle. I am confident this is the replacement you'll need but be sure to carefully compare the dimensions and design to confirm.

Side view of 39-226
Side view of 39-226

Alternate view of 39-226
Alternate view of 39-226

Home Owner from Hoffman Estates, IL

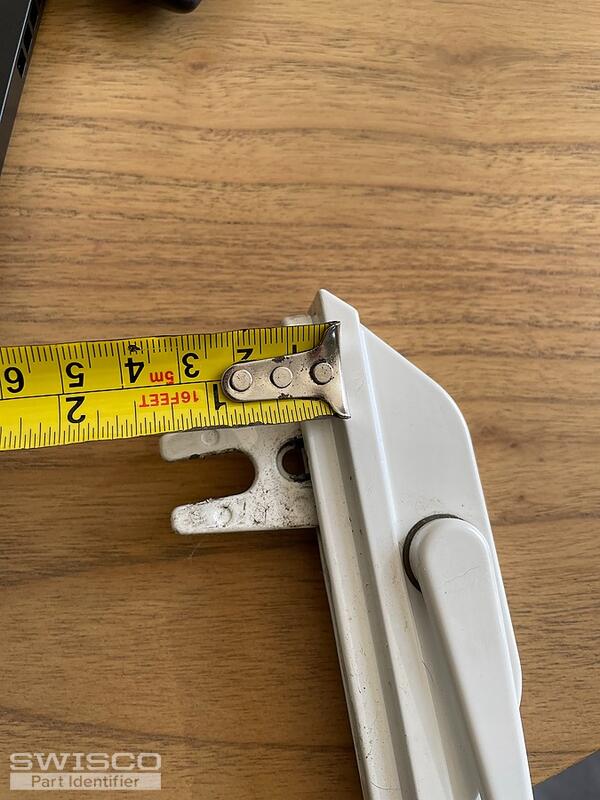

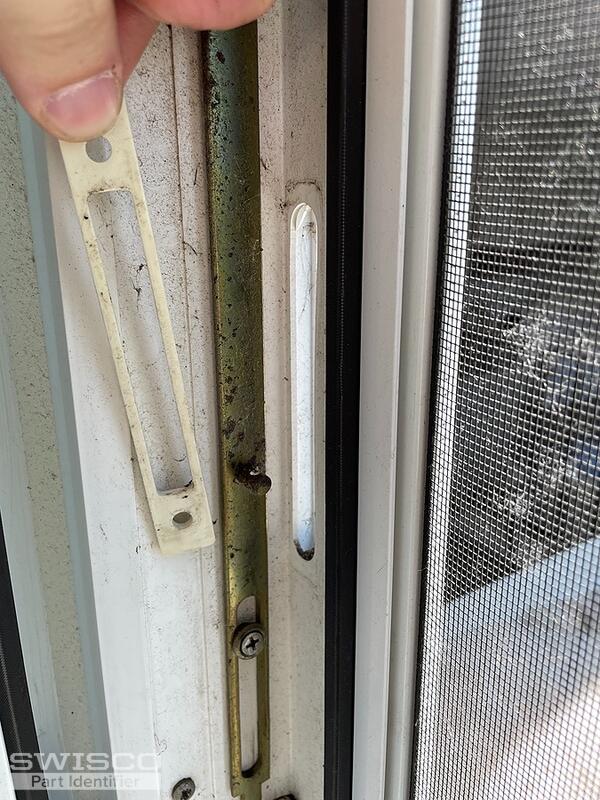

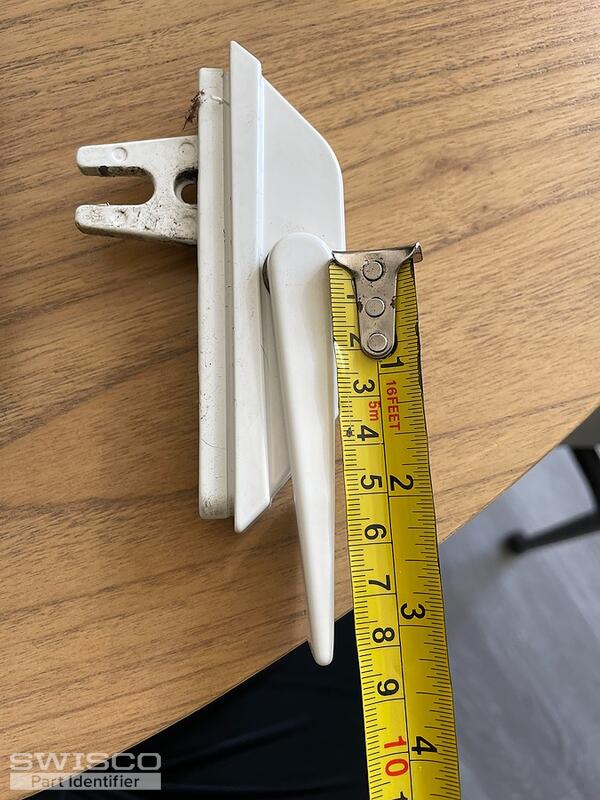

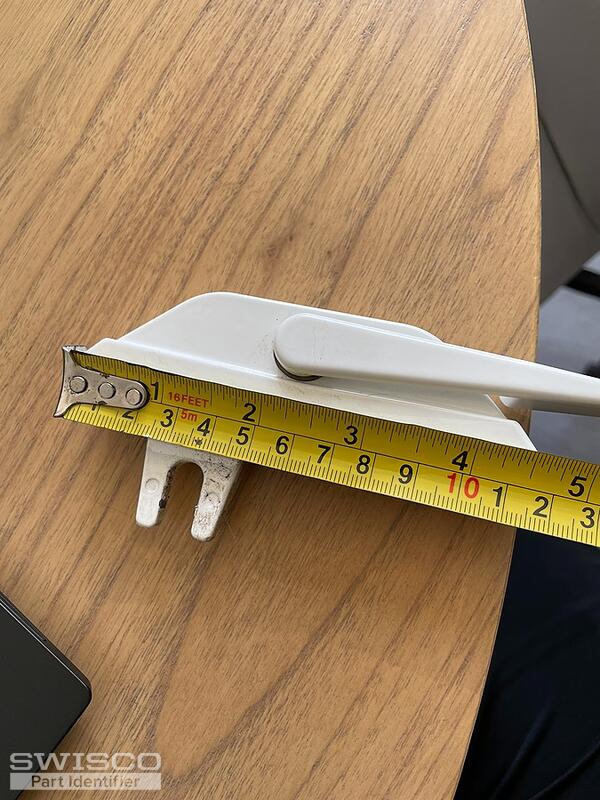

Here is the lock removed. Is this 38-095?
4 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

The replacement for this lock could be the 38-095, you've mentioned, or it could potentially the 38-096, 38-138, or 38-139. To determine which of these is the correct replacement you'll need to carefully review and compare each of their dimensions. They can be found on each of their respective pages in our online catalog.

Please don't hesitate to reach out with any questions.
