LOOKING FOR A REPLACEMENT PART FOR WINDOW

Start a new Discussion

Purchasing Agent from Brainerd, MN

Apr 24, 2024 10:44 am

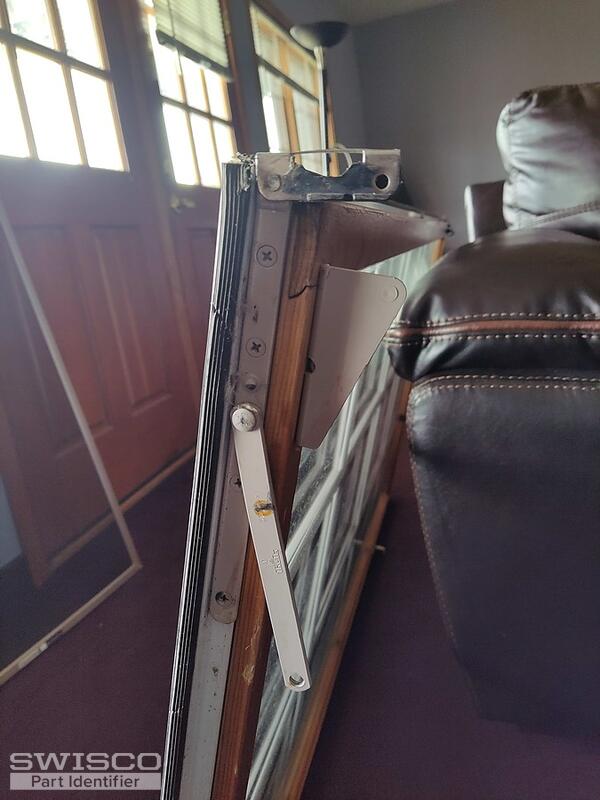

I am not sure what this is called, but I am looking for the entire piece on this picture.

1 user uploaded image

4 Replies

Lauren from SWISCO

Apr 25, 2024 10:21 am

Hello, thank you for posting,

It appears that you are need of a new hinge. Please start by reviewing the style and dimensions of the 36-048 2-bar hinge set that has a 10" sill track. Compare to your original to confirm a good fit! Note that both the top and bottom hinges will need to be replaced at the same time.

Let us know if you have any additional questions!

Purchasing Agent from Brainerd, MN

May 15, 2024 11:04 am

Good Morning. We measured the track on the window, and it is 7.5 inches.

Tom from SWISCO

May 16, 2024 11:20 am

Hello! Lauren isn't here today but I'll do my best to assist.

Just to clarify, are you measuring the track on the window sill, or the swing arm on the sash? The 36-048 also has a swing arm that's roughly the same size as yours. What we're interested in is the base track that screws directly to the window sill (or the header, in the case of the top assembly).

I just wanted to be 100% sure because we don't have anything quite that small, and I'm not sure I've ever seen one in this design that's as small as that. Note that your photo above isn't showing the base track, it's only showing the swing arm.
